Chapter 6: Port Mirroring

84 Section I: Basic Features

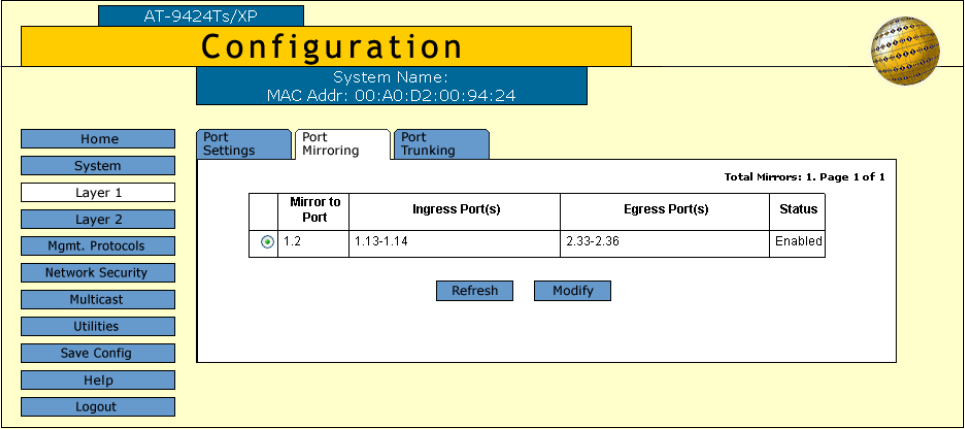

Figure 25. Example of the Port Mirroring Tab

6. To save your changes in the master configuration file, click the Save

Config button in the Configuration menu.
