Resolution and ROI frame rates
Mako G-419B/C: ROI frame rates
*There will be an increase in frame rate with reduced width if the camera is bandwidth limited.

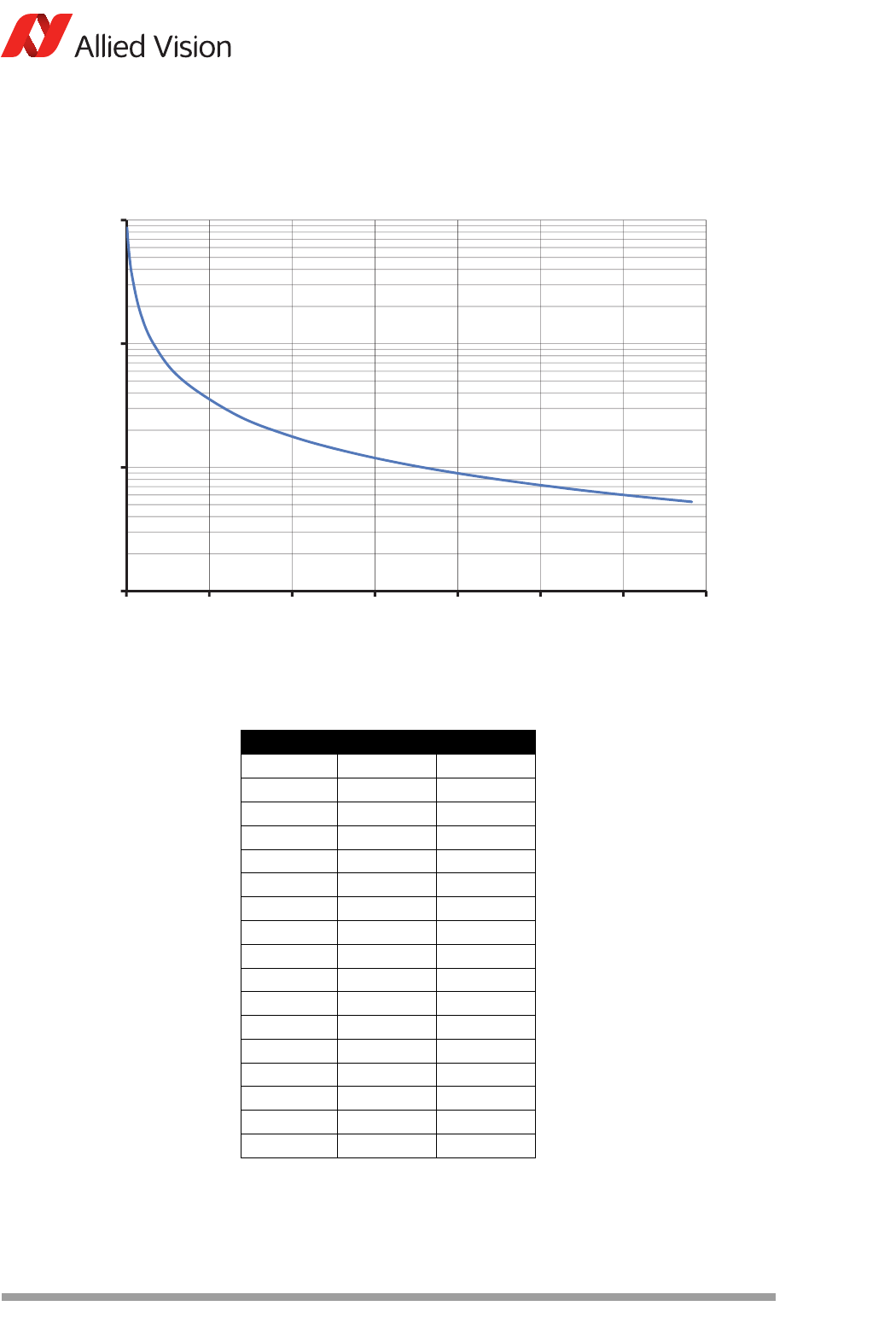

Figure 58: Frame rates Mako G-419 as function of ROI height
ROI height Width* Frame rate
2048 2048 26.3
2000
2048 26.9
1800
2048 29.9
1600
2048 33.6
1400
2048 38.4
1200
2048 44.8
1000
2048 53.7
800
2048 66.9
600
2048 88.8
400
2048 132.1
200
2048 257.7
100
2048 490.8
50
2048 895.9
20
2048 1775.5
10
2048 2639.2
5
2048 3486.7
2
2048 4342.1
Table 38: Frame rates (fps) of Mako G-419 as function of ROI height (pixel)
5
50
500
5000
0 300 600 900 1200 1500 1800 2100
Frame rate [fps]
Height [pixels]
