13.3 Conguring Dual IP Mode, continued
To change the CPE IP address allocation option from DHCP to Static via the Web Server, refer to the
following:
1. Connect to DSM3 via Web browser per the procedure in Section 4.0, Web Interface.
2. In the Advanced Conguration menu of the DSM3 Web page, click the Communications button.
3. Click the Static button in the CPE Communications Module column of the page. Refer to Figure 13-
5. When prompted for User Name and Password, refer to Section 4.3.1, Web Interface Security
Levels for User Name and Security Password
4. Enter the desired IP Address, Subnet Mask and Gateway in the provided data elds.
5. Click the Set button to update the Communications Module with the new values.
6. Conrm the new Static IP Address is listed under the CPE Communications Module column of the
General page. Refer to Figure 13-6.

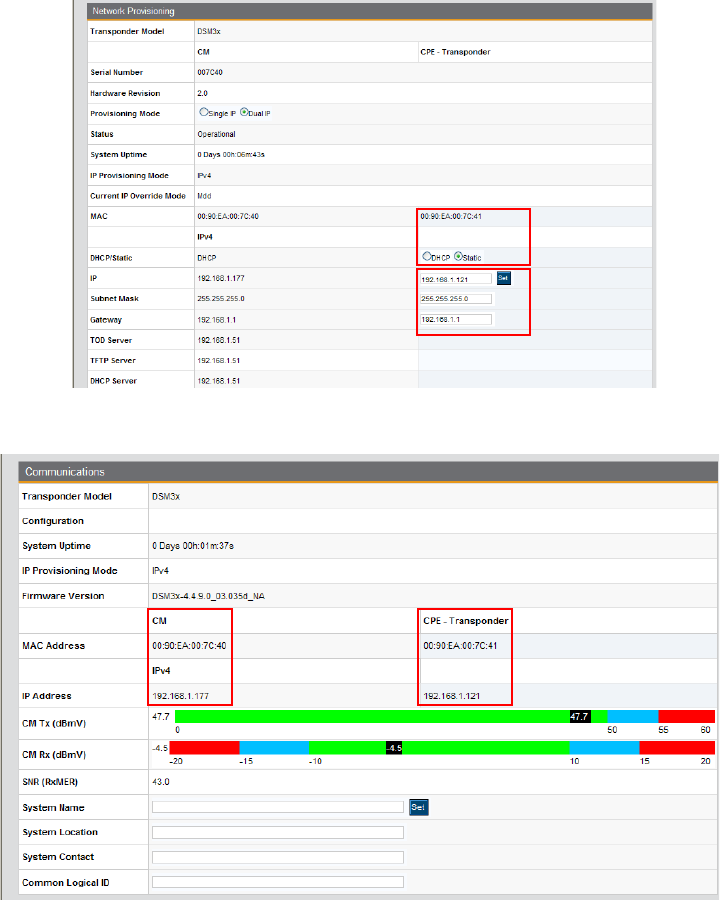

Fig. 13-5, Dual IP Conguration Settings for DSM3 Web Server Communications Page
Fig. 13-6, Dual IP Parameters for DSM3 Web Server General Page
