28
745-814-B11-001, Rev. C (03/2014)
4.5 Verifying Power Supply and Battery Parameters
Click the General menu to access Power Supply and individual battery voltage values. Important
parameters such as current alarm status, inverter status and tamper status can be quickly veried on
this page. Additional power supply parameters can be viewed and congured on the Power Supply page
located in the Advanced Conguration menu.

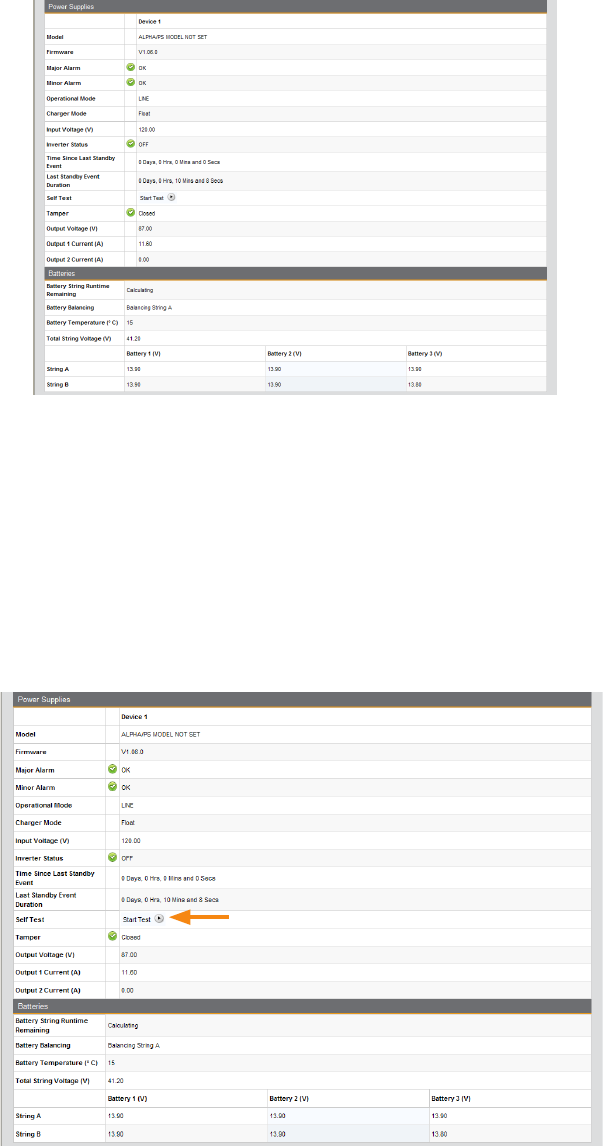

Fig. 4-10, Power Supply and Battery Parameters
4.0 Web Interface
(data values shown for illustration purposes only)
4.6 Remote Self Tests via the Web Page
Remote Self Tests on power supplies may be started and stopped via the DSM3 Series Web page. This
requires a Level 1 login. Refer to Section 4.3.1, Web Interface Security Levels for User Name and
Security Password.
To launch a remote Self Test, click the Start Test button.
To stop a remote Self Test before the predened test duration, click the Stop Test button.
Fig. 4-11, Location of Start Test Button for Self Test
(data values shown for illustration purposes only)
