4.0 Web Interface

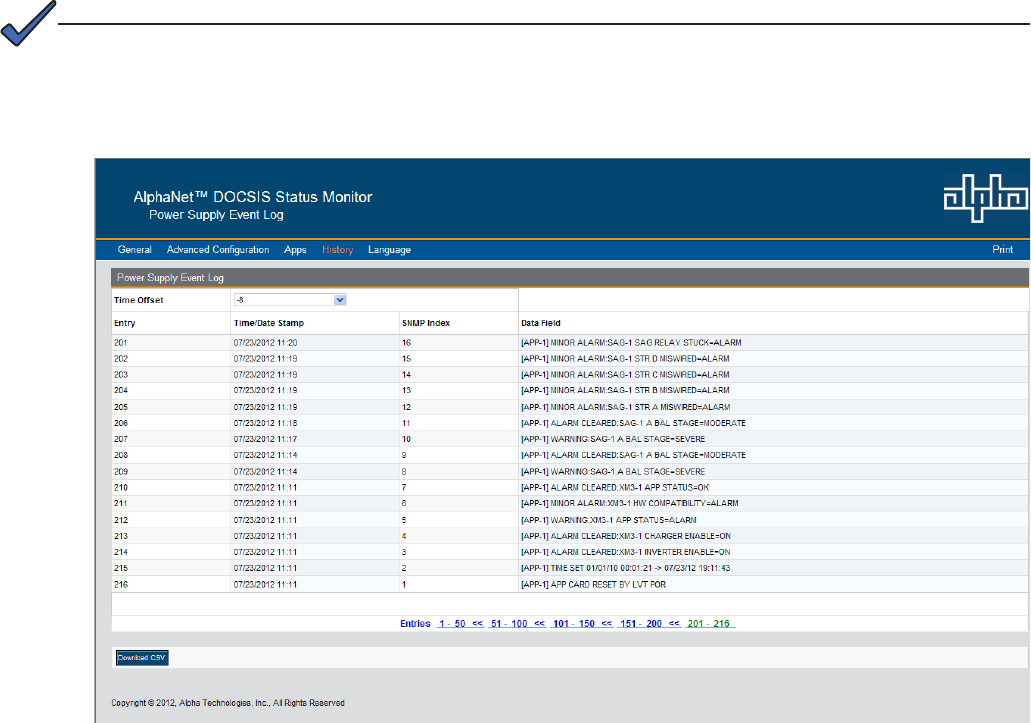

Fig. 4-30, Power Supply Event Log
4.14 Viewing Power Supply Event and Conguration Logs, continued
The Power Supply event log records events that occur in the normal course of daily power supply
operation such as IP address changes, inverter health, alarms, power outages, etc. A Time Offset
selection can be congured to display the events in the specied time zone. The event log data may be
downloaded by clicking on the Download CSV (comma-separated values) button located at the bottom
left of the page.
The AlphaApps card will store a maximum of 768 event log entries that can be reviewed in the CSV le. The
DSM3 Series Power Supply Event Log Web page will display a maximum of 512 event log entries. The event
log entries are displayed in groups of 50. Navigate to particular events by selecting one of the numbered entry
links listed at the bottom of the page.
NOTE:
