4.0 Web Interface

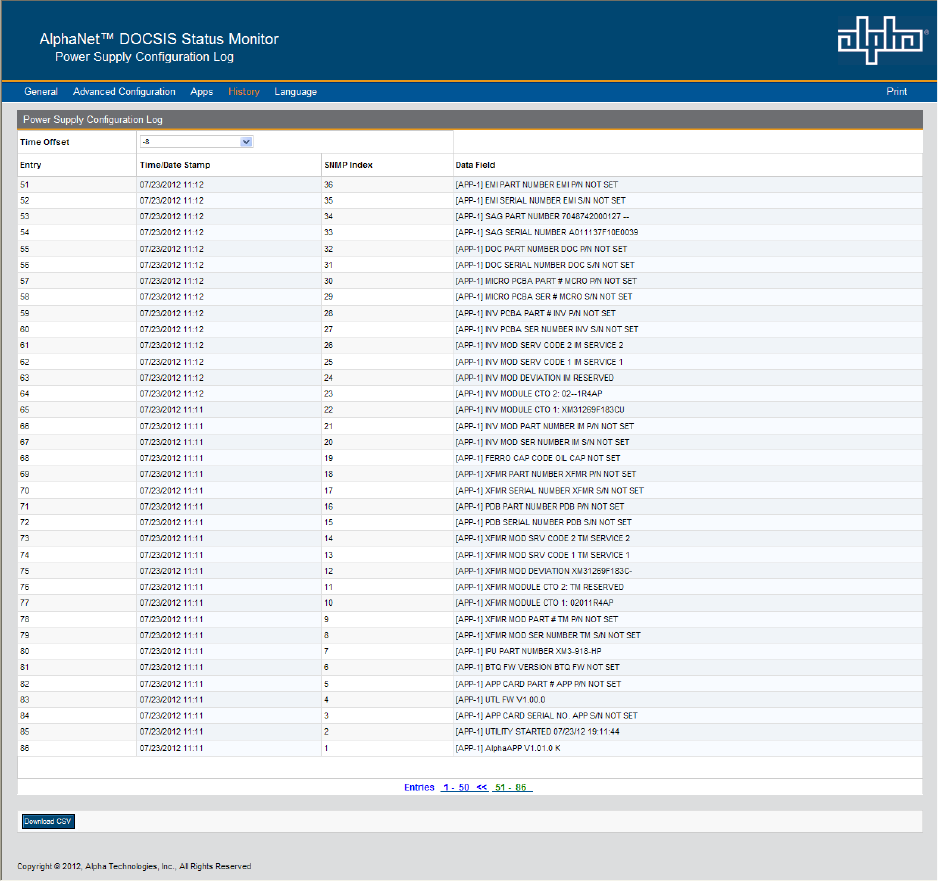

Fig. 4-31, Power Supply Conguration Log

4.14 Viewing Power Supply Event and Conguration Logs, continued

The Power Supply Conguration Log, accessible via the History drop down menu, contains events

that occur infrequently or only once, such as Communications Module conguration (rmware version),

CM MAC address, Inverter Module serial number, etc.

The conguration log data may be downloaded by clicking on the Download CSV button. The

Conguration Log will store a maximum of 255 entries.
