7.0 Installation

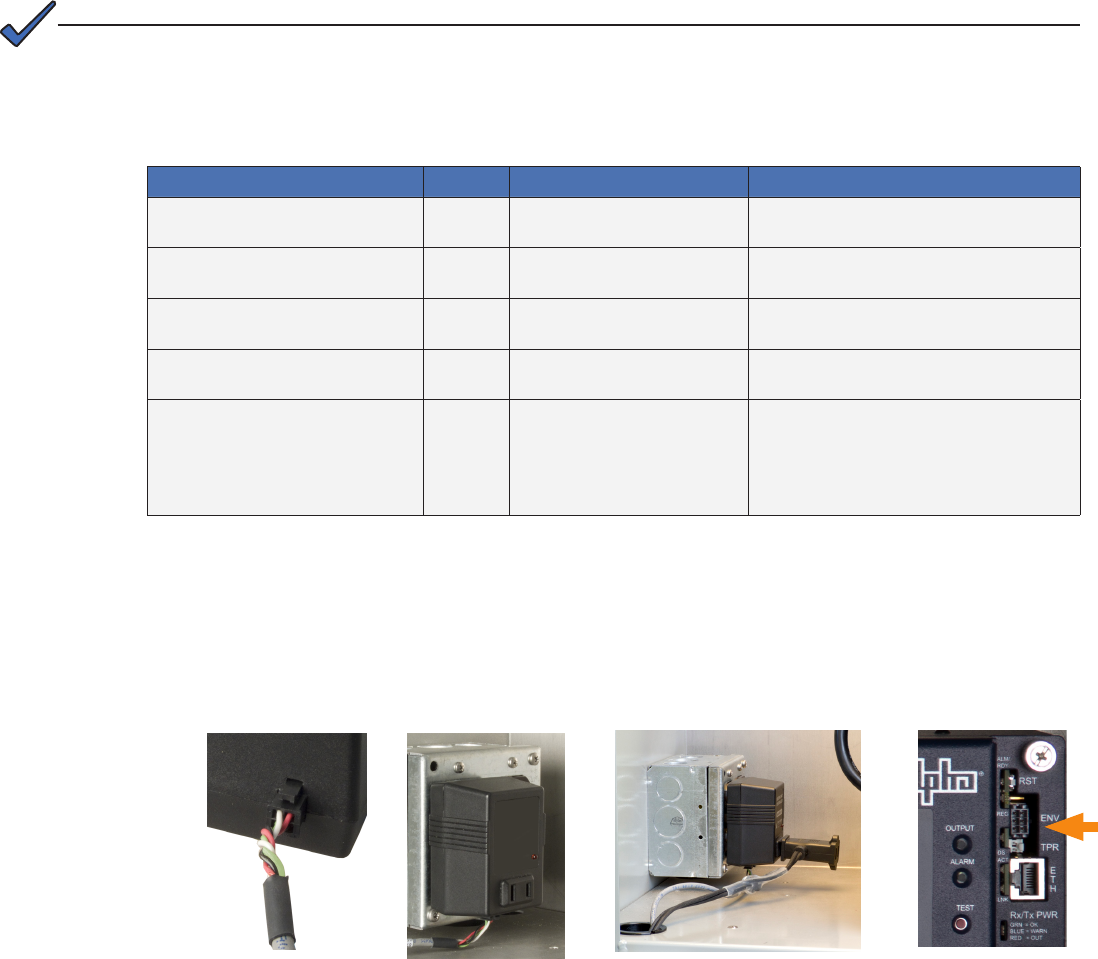

7.8.11 Connecting the Battery Heater Mat Controller
Power to the heater mat is provided via a customer-supplied controller plugged into the power
outlet inside the enclosure. A cable (Alpha p/n 875-627-22) connects the controller to the ENV
(Environmental) connector on the DSM3x and DPM. The connection procedure is shown below.
1. Connect the 4-pin connector
from the controller cable (Alpha
p/n 875-627-22) into the base of
the Heater Mat Controller.
2. Plug the controller into
the power outlet.
4. Plug the 6-pin connector
into the ENV connector.
3. Plug the Heater Mat into the controller.
7.8.10 I/O Port: Heater Mat Control
atiMgmtSysIoSelect = 3,5
A battery heater mat controller may be managed though the following set of parameters within the
‘atiMgmtSysTempMgr’ MIB branch.
Parameter Access Values Description
atiMgmtSysTempCtrl
1.3.6.1.4.1.926.1.3.2.4.1.0
RW 1 = Off 2 = Switch on Timer Starts or stops the heater mat
activation timer
atiMgmtSysTempStatus
1.3.6.1.4.1.926.1.3.2.4.2.0
R 1 = Contact Open 2 =
Contact Closed
The heater mat is activated when this
parameter reports “2”
atiMgmtSysTempTimer
1.3.6.1.4.1.926.1.3.2.4.7.0
RW 0..1440 (Default = 30) The number of minutes the heater mat
will stay on when timer is started
atiMgmtSysTempCountdown
1.3.6.1.4.1.926.1.3.2.4.8.0
R 0..1440 Number of minutes remaining on timer
atiMgmtSysTempStatusInvert
1.3.6.1.4.1.926.1.3.2.4.9.0
RW 1 = No invert (default) 2 -
Invert
The manufacturer of the mat control
block created some models where the
polarity is reversed (Open vs closed).
If these devices are deployed then this
parameter will need to be set to “2”
Table 7-6, I/O Port: Heater Mat Control Specications
Heater control MIBs will continue to report regardless of atiMgmtSysIoSelect value, but DSM3x/DPM Web page will
only display Heater Control status if atiMgmtSysIoSelect is set to “3” or “5.”
NOTE:
