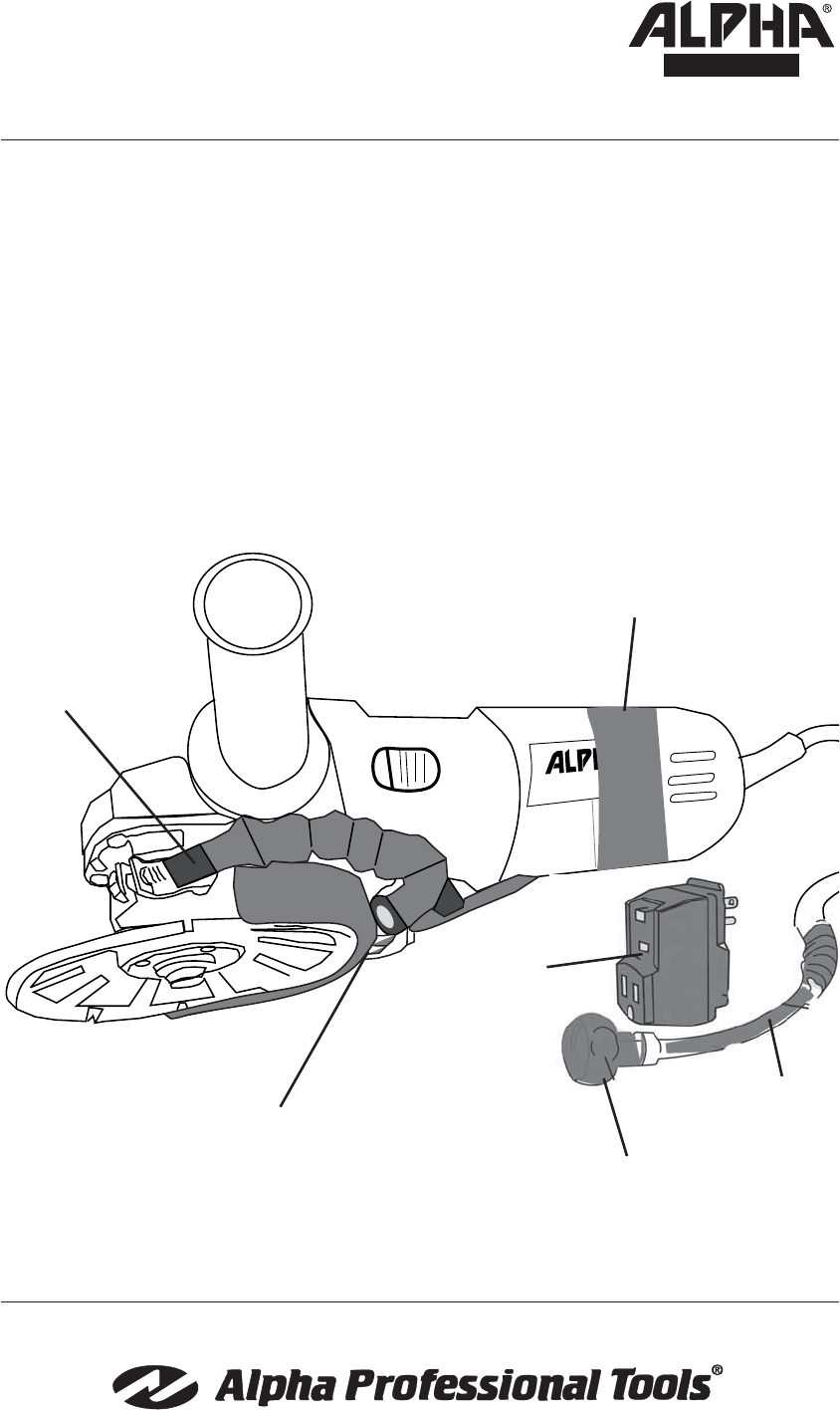

MANUAL Alpha® Wet Blade Cutting Kit Instruction Manual Hook & Loop Strap Coolant Tube ® HSG-125 GFCI Water Line Blade Guard Garden Hose Adapter *Tool and Blade sold separately Part No: WBCKIT 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.
TABLE OF CONTENTS CONTENTS Parts List .............................................................................................. 3 Instructions ........................................................................................... 3 Creating Thread Holes for the Protective Guard .................................. 4 Assembly of WBCKIT Guard ................................................................ 4 Installation of WBCKIT Guard ..............................................................
1 PARTS LIST 4 2 3 6 5 8 9 No. Item Description 7 Part Number 1. Protective Guard for HSG-125 The WBCKIT can also be attached to other grinders with minimal alteration to their safety guards 140007 2. Water Line (10’) 3m* 3. Garden Hose Adapter* 133287 4. Ground Fault Circuit Interrupter GFCI-1 5. Hook & Loop Strap 140003 6. Coolant Tube 140004 7. 90 degree Swivel Fitting 140005 8. Plastic Ties 9. Plastic Wire Wrap PDH-CABLETIES 140002 * Not sold separately.
CREATING THREAD HOLES FOR THE PROTECTIVE GUARD Hole Size: 5mm or #8 Drill Bit Illustration of Protection Guard 10mm (3/8”) 25mm (1”) ASSEMBLY OF WBCKIT GUARD STEP 1 1. Thread plastic cable tie through holes in the guard. (If using another grinder the safety guard must be altered to accomodate cable ties as shown above). STEP 3 3. Repeat steps 1 and 2 to completely secure the coolant tube to the guard. WBCKIT Guard Assembly 4 STEP 2 2.
INSTALLATION OF WBCKIT GUARD Note: It is important to securely attach the WBCKIT to the tool. 1. Before tightening, slide the protective cover onto clamping collar so that the lip on the protective cover fits into the groove on the tool. 2. Position the protective cover with the shield facing backwards. Push down until the protective cover is firmly seated on the clamping collar. 3. Tighten the clamping screw to a snug fit. The protective cover should not be able to move. 4.
GARDEN HOSE ADAPTER INSTALLATION Compression Nut Base 1. 2. Take the open end of the water line and place the compression fitting nut on the tube as shown. Push the tube into the connector base. Push Tube Water Line Tighten the compression nut with a 14mm wrench to a secure condition. Note: Do not overtighten connection. If leakage occurs during startup, tighten in small increments until a leak tight connection is made. 3.
INSTALLATION OF PLASTIC WIRE WRAP 1. Install the plastic wire wrap around both power cord and water-line as shown. 2. Finish the wrapping procedure until secure. INSTALLATION OF GFCI 1. Install the GFCI to the grinder power cord as shown. Connect to power and check the GFCI for proper function by pressing the test and reset buttons. Caution: Do not operate a grinder with a water-feed system, without a GFCI installed and in proper working condition.
