Installation guide

IPDP - installation and operating instructions

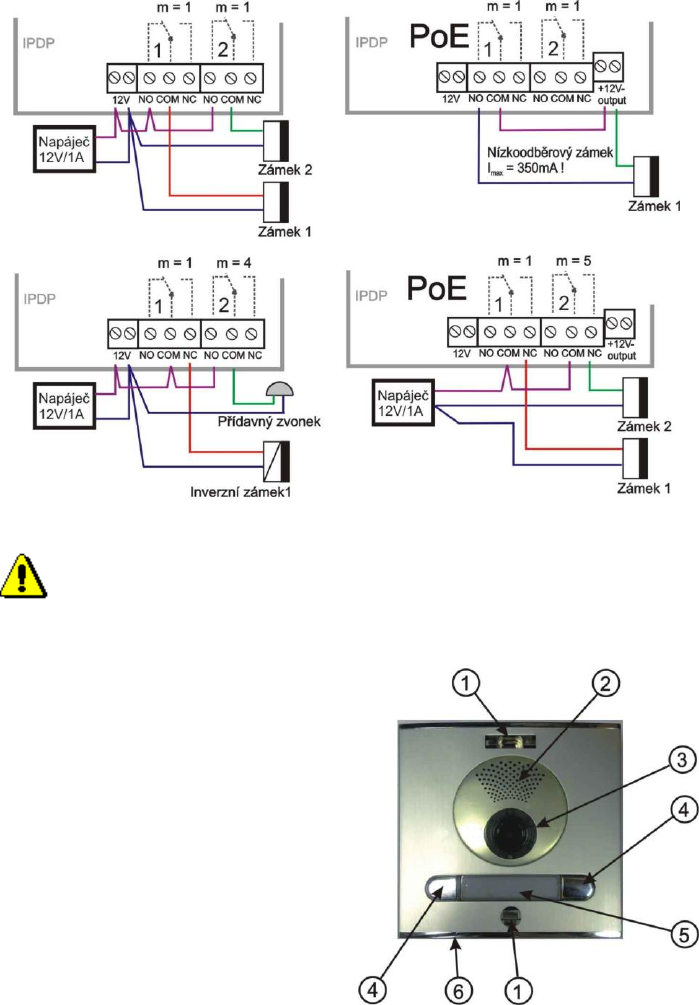

1.4.2 Example of switches connection

The switching contact of relay is separated galvanically from other circuits of

the door phone panel.

When using PoE, the output of 12V is connected galvanically with the

PC network. Therefore when using PoE power supply, please pay

attention during manipulation and installation. The circuit is connected

galvanically with the computer network!!!

1.4.3 Front panel

1. Assembly openings for mounting

of the front panel. After installation

of the top opening, please cover it

with the plastic cover with Fermax

logo. When bottom opening please

cover with the grey, round plastic

cover. Both covers incl. the screws

are part of delivery as accessories.

2. Loudspeaker.

3. Camera with illumination and a

sensor for switching on the

illumination.

4. Pushbuttons. These two
