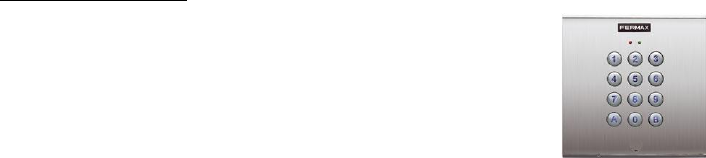

1.4.7 Keypad module Fermax PBX KEY
The keypad module is connected via a cable Fermax PBX CC5 and a cable
Fermax PBX CC3. The connection is similar to the connection of the expansion
module. The difference is that the keypad module is always the last in the row
(you cannot connect to the keypad module any other module). The keypad
module can be only connected to the second position (i.e. directly to the basic
module) or to the third position (to the output of the first Fermax PBX EXP
module). Attention – 1st position can´t be used because the first position
is occupied by the fixed expansion on the basic module (pushbuttons 3-
10). This means that besides the keypad you can use 0 – 18 pushbuttons with
the direct dialling (depends on the specific configuration).
Please pay attention during programming – you need to specify correctly to
which position the keypad is connected.
Dialling is realised by a sequent pushing of number
pushbuttons. When entering a password, you need to press
the B pushbutton. To hang up, please press the pushbutton
A and the door phone panel hangs up.
1.4.8 Other modules (panels)
All other panels can be found in the offer of your local partner.
