Chapter 2 - Installation
2.1.4.7 Pole Mounting Two ODUs
1 Prepare the two ODUs for installation as shown in Figure 2-4.
2 Position both carriages at the desired location on the pole.
3 Thread the 4 M10x265 threaded rods through one carriage and tighten using
the supplied washers, spring washers and nuts. Lean the carriage vertically on
the pole and thread the rods through the second carriage (Figure 2-8).
4 Tighten using the washers, spring washers and nuts.
5 Hang the ODUs on the carriages and tighten the M10x30 screws (Figure 2-9
and Figure 2-10).

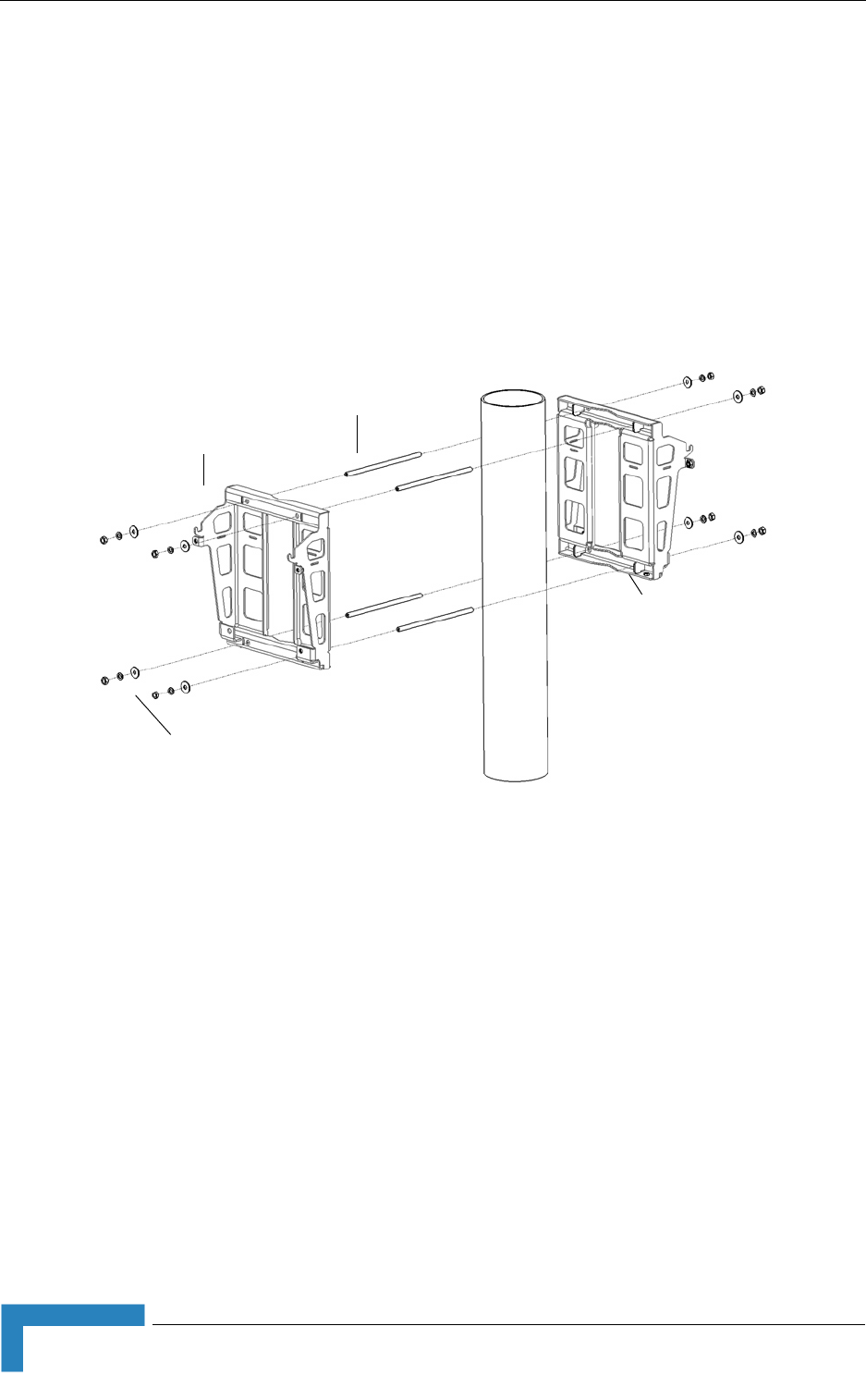

Figure 2-8: Mounting Two Carriages on the Pole
Carriage for 4x2 ODU
M10 nuts, washers, spring washers
Carriage for ODU-HP
M10x265 Threaded Rods
