56 4Motion System Manual
Chapter 2 - Installation
2.1.4.8 Mounting the Sun Guard
1 Attach the Sun Guard to the front of the ODU using the four M6x16 screws
supplied with the Sun Guard.
CAUTION
To avoid damage to the Sun Guard, assemble it after the ODUs are mounted on the pole.

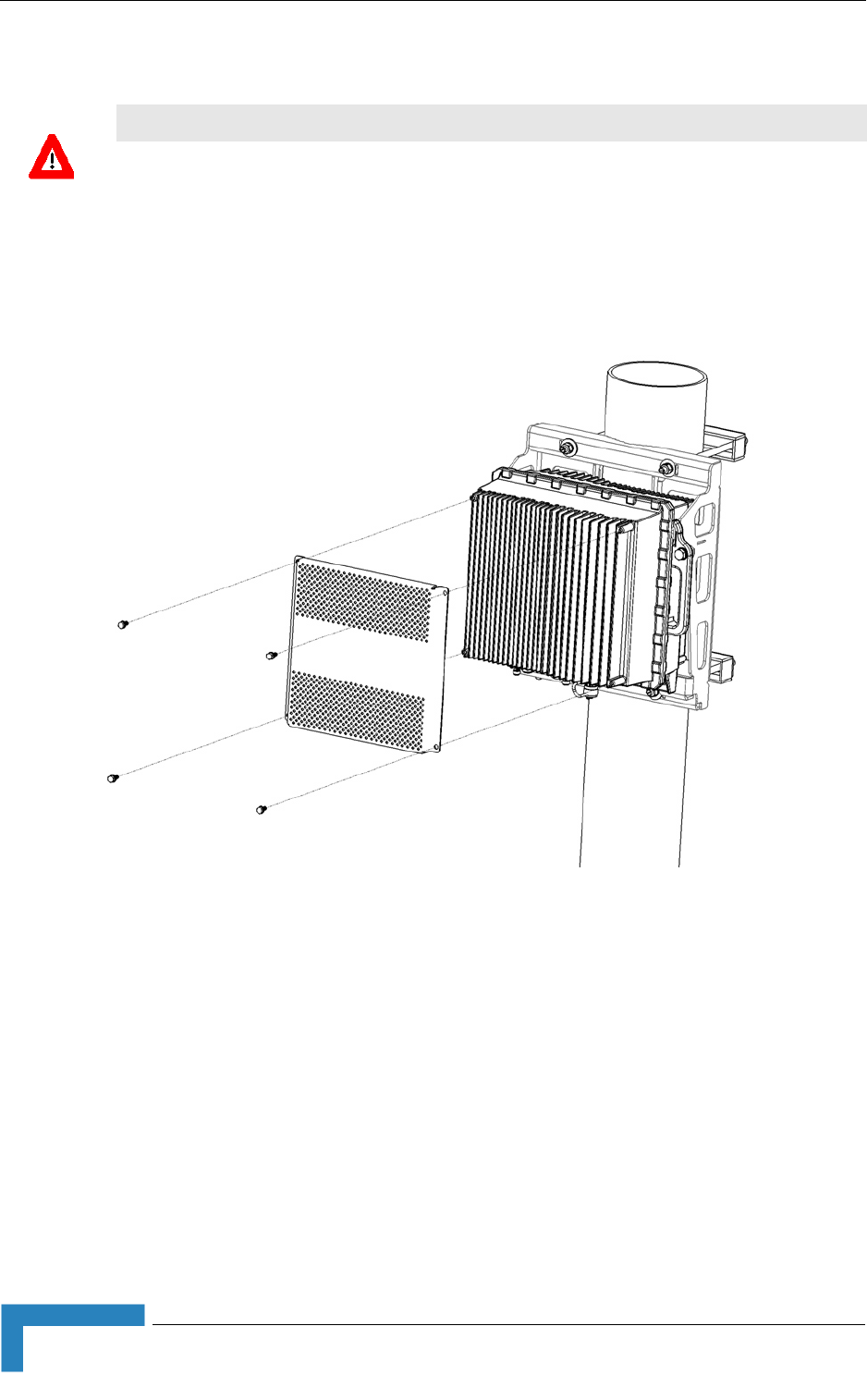

Figure 2-11: Attaching the Sun Guard to the 4x2 ODU
Sun Guard
M6x16 screws
