Installing the ODU
4Motion System Manual 51
2 Insert the four M10X30 screws into the designated holes (Figure 2-4).
3 Position the carriage on the pole at the desired location.
4 Thread the four M10x265 threaded rods through the carriage and the rear
clamps (Figure 2-5).
5 Tighten on both sides using the supplied washers, spring washers and nuts.

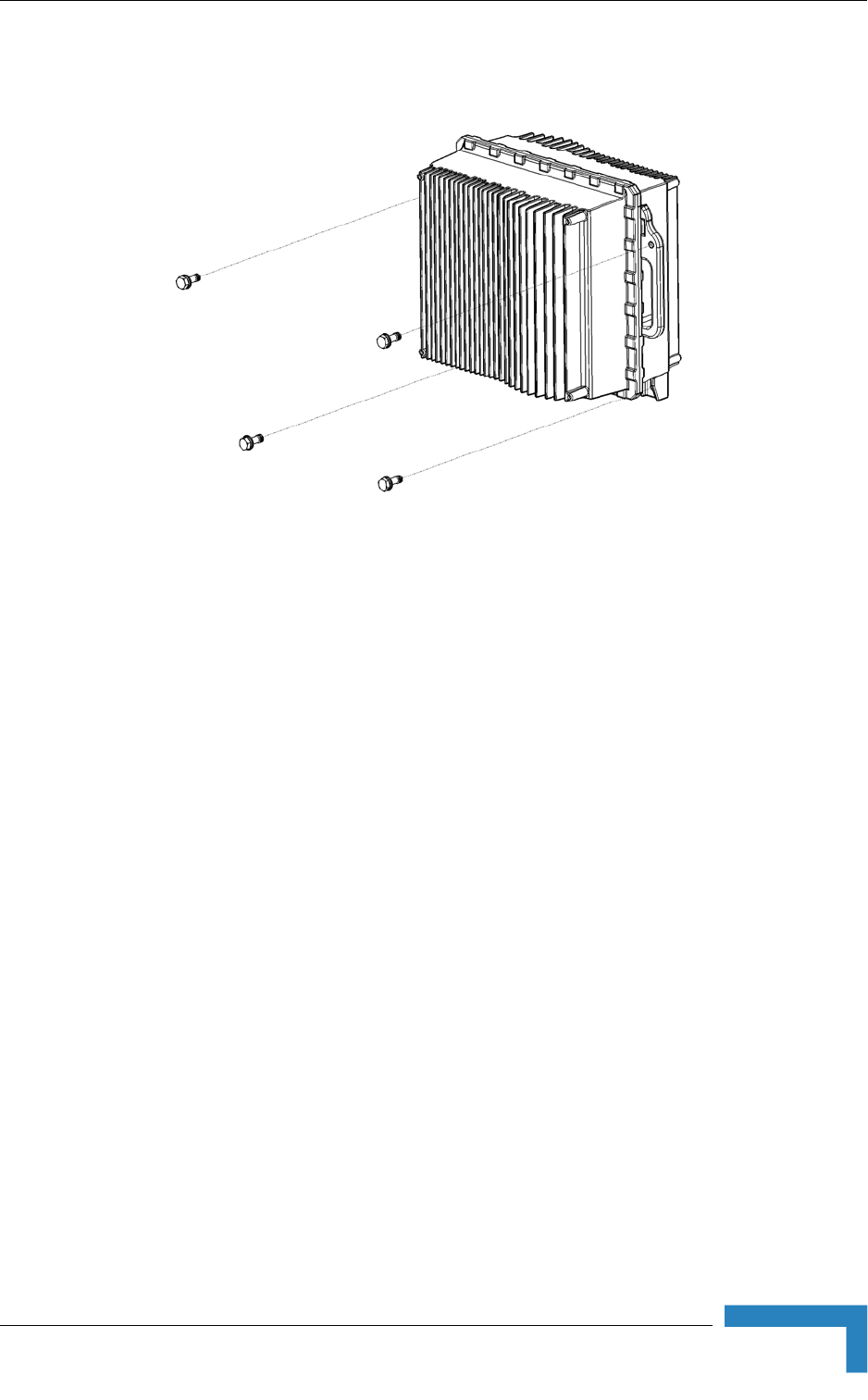

Figure 2-4: Preparing the 4x2 ODU for Installation
ODU
M10x30 screws
