Chapter 2 - Getting Access to the Unit PC/Laptop/LAN Connection
Alvarion BreezeNET B130/B300 GigE 9 Quick Start Guide
2.1 PC/Laptop/LAN Connection
2.1.1 Cabling (Lab)
The sequence of actions to be performed in order to connect the unit to the
PC/Laptop is the following:
1 Unpack the equipment
2 If you do not have a service cable soldered, please do it using special
connectors included into the package according to the soldering scheme
located in the "Supplementary information" section. STP cable cat 5 or cat 5E
should be used.
3 Locate IDU and ODU. Using STP Service cable connect ODU and IDU. Service
cable sockets are marked on the diagrams below

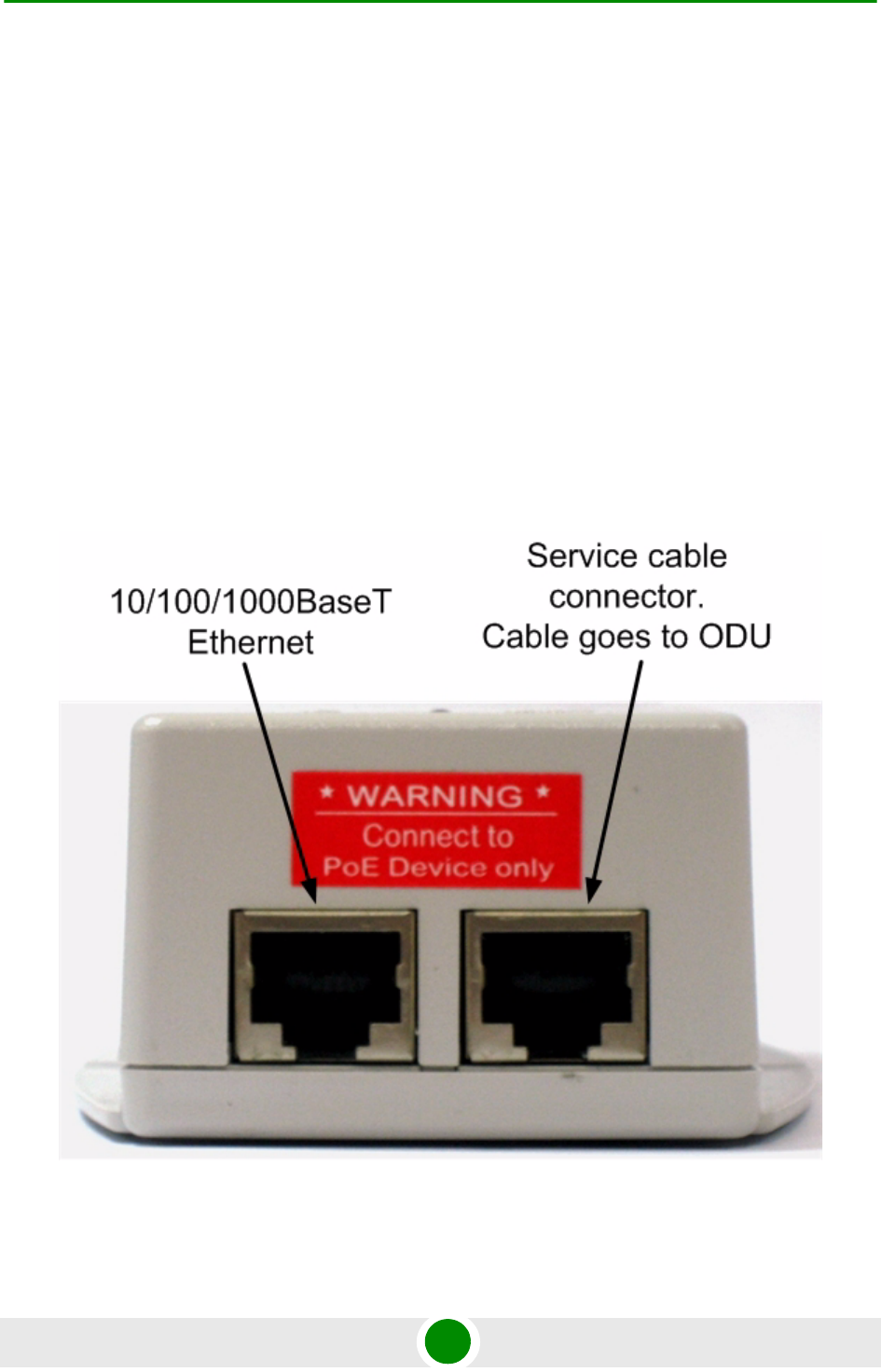

Figure 2-1: IDU Front
