Installation Guide

C - Sliding Glass Door Installation

1. Locate the Wheel Set containing 4 wheel assemblies.

2. To install the wheel assembly on the sliding glass door, unscrew the bolt from the inside bracket.

Place the outside bracket on the outside of the door, and place the inside bracket and wheel into

the cutout section of the shower door (diagram 18) Push the bolt through the inside bracket

until it screws into the outside bracket. Repeat for the remaining wheels.

3. After 30 minutes to an hour the silicon on the ﬁxed glass panel should be secure enough to

ﬁnish the door assembly. (do not use excessive force on the door until the silicone is fully dried).

Have the top door slide bracket handy and ready to install. Carefully place the Door into

position, with the wheels resting in to the pan threshold channels facing into the shower.

4. To secure the sliding door to the top slide bracket, (diagram 19) Take the clear rubber insert

of top bracket and put a pea drop of silicon inside of channel then place on the top end of

the Fixed Glass Panel. Next lower the bracket over the clear rubber insert at the same time

making sure the glass is going into the guide channel, push down leaving a 1/8” gap between

top of the Sliding Glass Door and the slide. (pushing the slide bracket down to far will create

to much friction for the door to move easily).

5. To install the door wall bumpers for thresholds 36” and smaller, place a drop of silicon onto the

bumpers and position on the left and right wall thresholds, in the center of where the

door will stop.

To install the door channel bumpers for thresholds larger than 36” attach bumper to the top of

the ﬁxed glass panel when door is fully open.

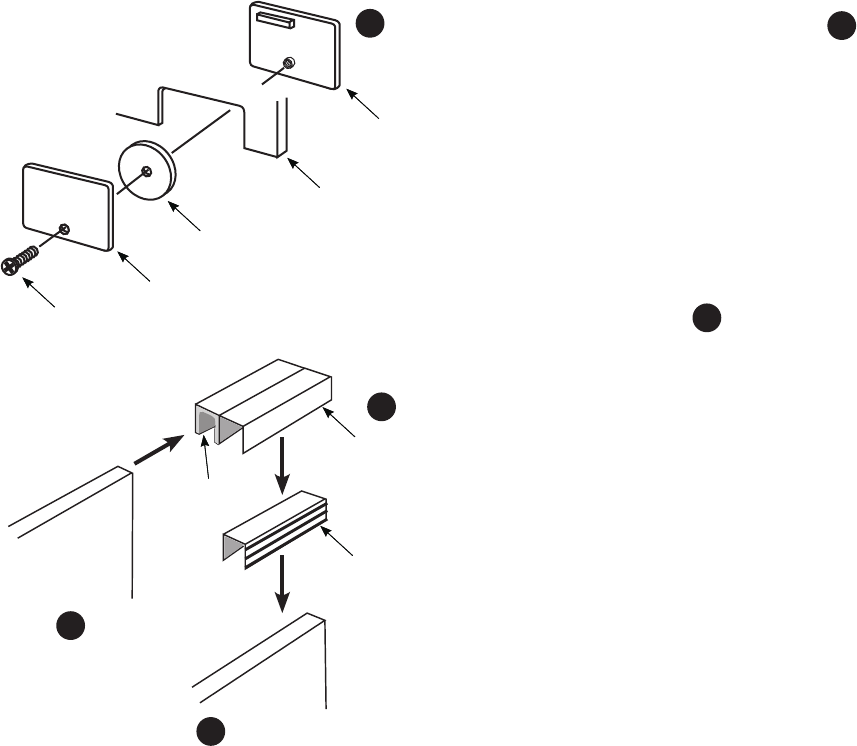

diagram 19

Sliding

Glass

Door

Fixed

Glass

Panel

door slide bracket

clear rubber insert

slide

wheel

inside bracket

outside bracket

shower door

bolt

diagram 18

G11
