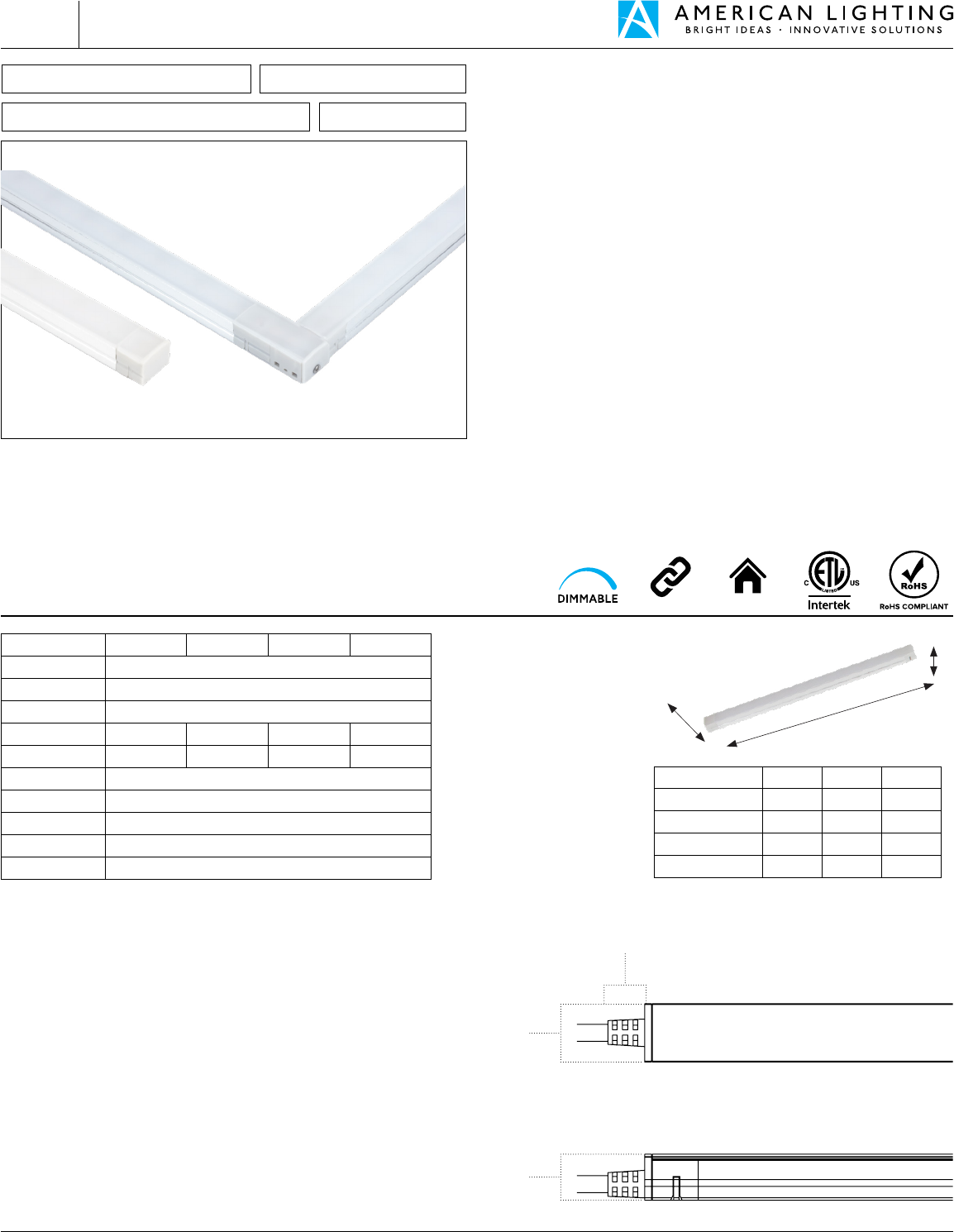

Specification Sheet

MICROLINK Seamless Bar Light
Page 1 of 2©2019 American Lighting, Inc. REV19231 www.AmericanLighting.com 11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: [phone]
24V
Description
Linkable modular seamless bar light
Features
• Seamless LED light can be joined with “cross”, “T”,
and “L” connections
• Low-profile fixture fits in a multitude of locations
• Long life LEDs produce high lumen output
• Diuse lens for smooth, even light
• Plug and play system for quick installation
(uses DC Plug connection)
• Suitable for under cabinets, framed areas, shelves,
closets, bookcases, and other areas of focus
• cETLus Listed for indoor, dry locations
Mounting
Magnetic back adheres to metal surfaces or mounting clips with screws
Applications
Under-cabinets, Task Lighting
Technical Information
Length 6” 16” 22” 32”
Voltage 24V DC
CCT 3000K
CRI 90+
Wattage 2.1W 5.7W 7.9W 12.2W
Lumens (up to)
200 520 720 1100
Max Run 5 meters (16.4 feet)
Beam Angle 120°
Dimming 5-100% with most standard 2-wire and CL dimmers
Rating cETLus Listed, dry locations
Rated Life 35,000 Hours
IndoorLinkable
C
A
B
Part Number A B C
MLINE6 6-3/16” 0.496” 0.39”
MLINE16 15-11/16” 0.496” 0.39”
MLINE22 21-1/8” 0.496” 0.39”
MLINE32 32-5/8” 0.496” 0.39”
PROJECT:
CAT:LOC AT ION:
TYPE:
(10mm)
0.39”
(12.5mm)
0.5”
Top Profile
Side Profile
Measurements with conkit and end cap attached.
(6.35mm)
1/4”
