Solecis AVS-SL-PR-0401-0601 Presentation Switcher
Controlling External Display Devices
To program the AVS-SL-PR-0401-0601 to control external display devices:
1. Click Setup Display. .
2. Click Change and select the required Manufacturer, Display Type and Model. The protocol and
command strings will appear in the relevant fields.
If the required device is not in the library, then it can be added by selecting Library from the
menu bar and following the instructions.
If the string needs to be transmitted more than once, select the number of times from the
Count drop-down list and set a suitable interval period.
3. If the Power ON/OFF function is to be enabled, set a warm up and cool down time via the Power
On Timer and Power Off Timer settings, and click on Set / Enable.
4. Click on Program Device to download the information.

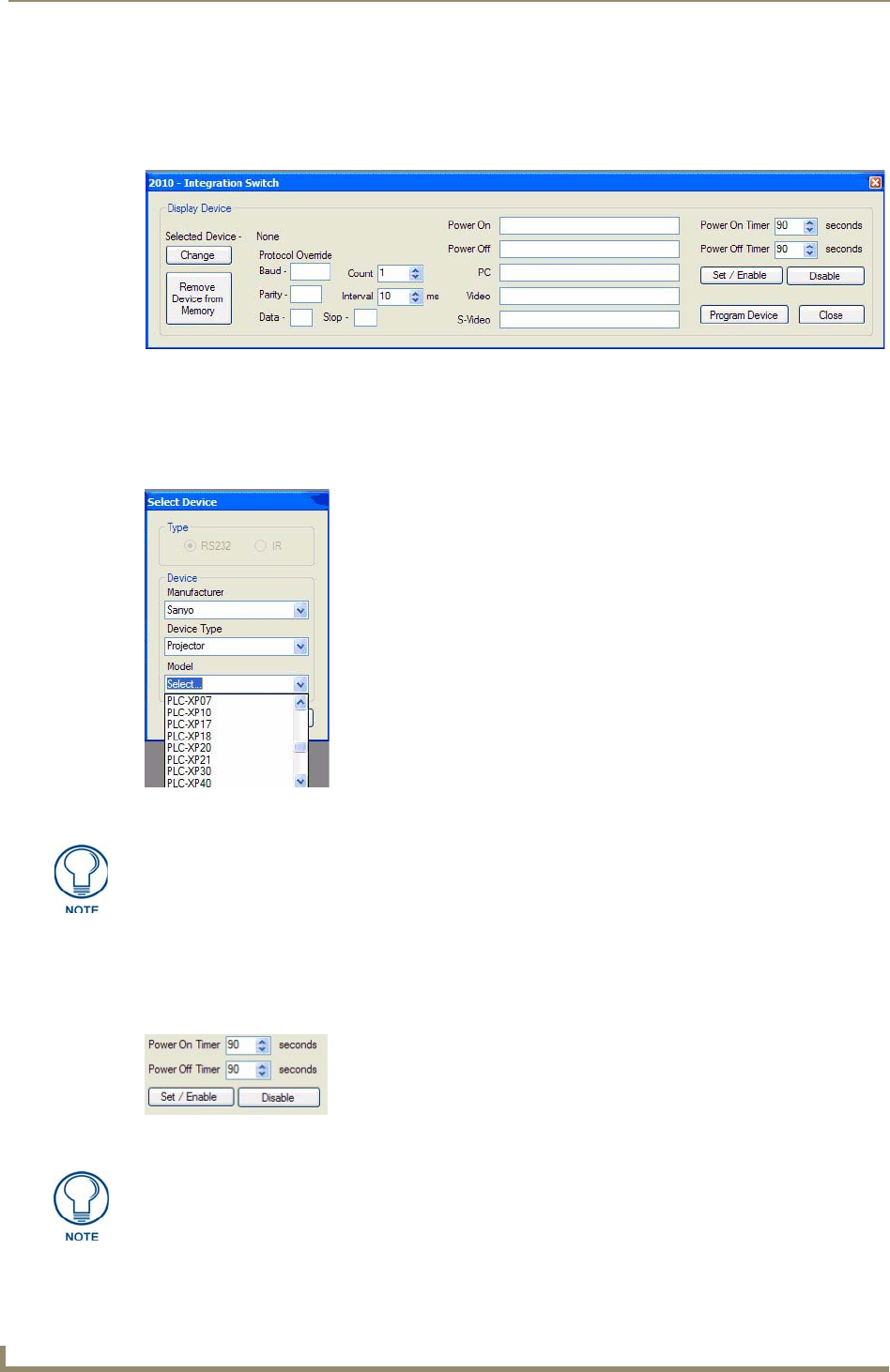

FIG. 3 Device Manager - Setup Display
FIG. 4 Device Manager - Adding a Device to the Library
The device manufacturer's data sheet will be required.
FIG. 5 Set warm up/cool down times via the Power On Timer and Power Off Timer settings
If the warm up/cool down times are not enabled, Power ON/OFF will not work!
