Upgrading Firmware
94
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
3. From the Advanced menu, select Advanced Settings... to open the Advanced Settings window
(FIG. 71).
4. Under the Adapters And Bindings tab, the user needs to make sure the Local Area Connection is not
at the top of the Connections list. If it is at the top of the list (FIG. 71), select it and use the down
arrow to the right of the list to move it to the bottom of the list (FIG. 72).
5. In the lower Bindings for Local Area Connection field, unselect ALL bindings by clicking on the
checkboxes by each binding to remove the checks from each box (FIG. 73).

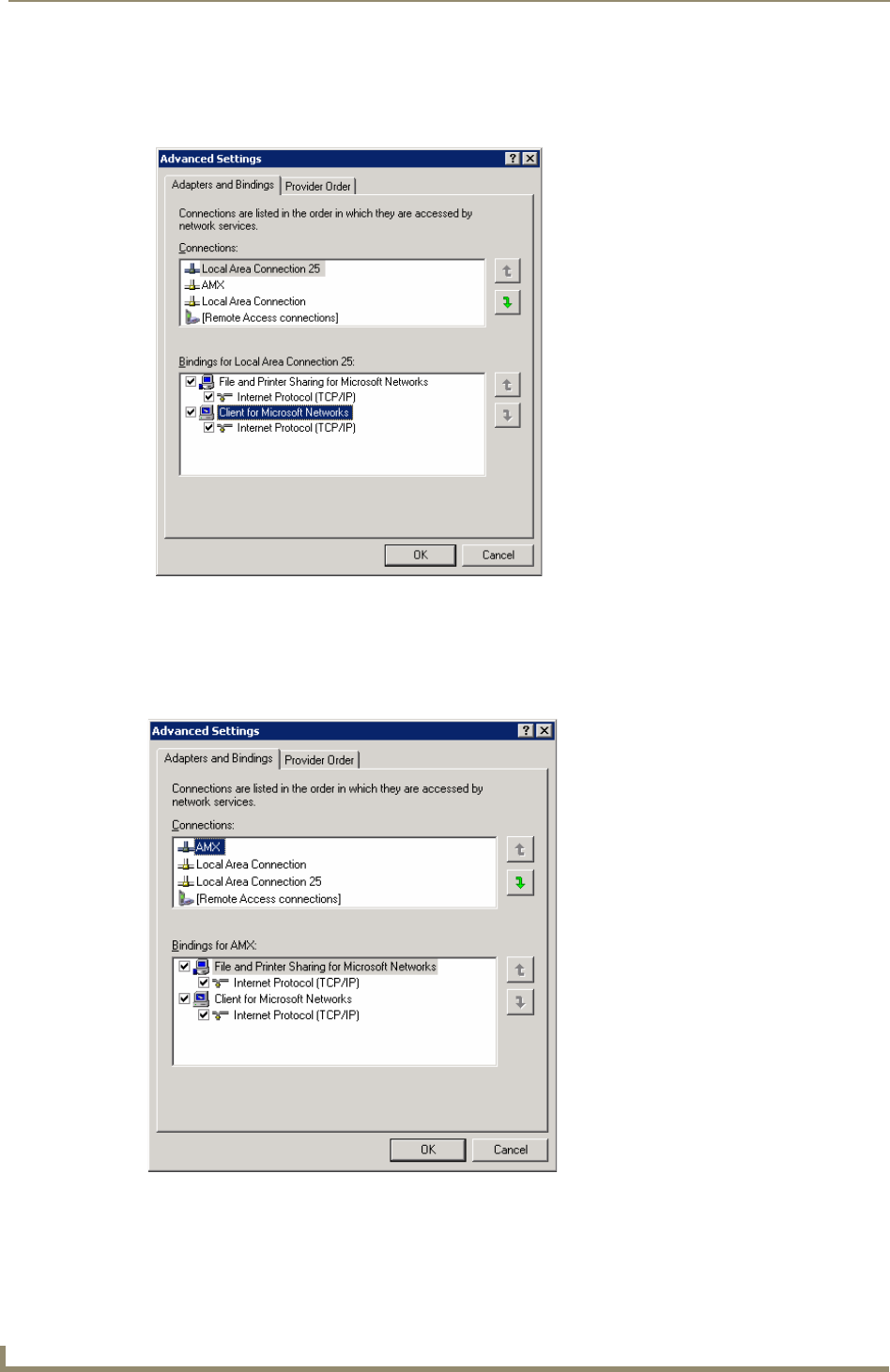

FIG. 71 Advanced Settings window
FIG. 72 Moving the Local Area Connection
