Introduction
5
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
MVP-5100 5.2" Modero ViewPoint IR Touch Panel
The MVP-5100 is a 5.2" Touch Panel built on the same lightning-fast processor as the MVP-5200i and
offers the same eye-popping, crisp, clean, high-resolution graphics in an ultra-light compact design that
is easy to carry. The MVP-5100 is perfect for installations desiring the sleek design of the MVP-5150,
but not requiring wireless capability. The MVP-5100 offers one-way IR communication giving the user
instant control of devices in the same room or system devices when using an IR sensor connected to a
NetLinx Control System (FIG. 2).
Common Application
Ideal for secure environments and mission critical applications where only IR communications are
allowed and wireless communications are not permitted such as government and military facilities.
Features
Ultra-light, compact and thin form factor
IR signal communications
Controls up to 10 devices within the room
High-gloss black styling
Charging options include table charging station (MVP-TCS52) and wall charging station
(MVP-WCS52)
Cost effective

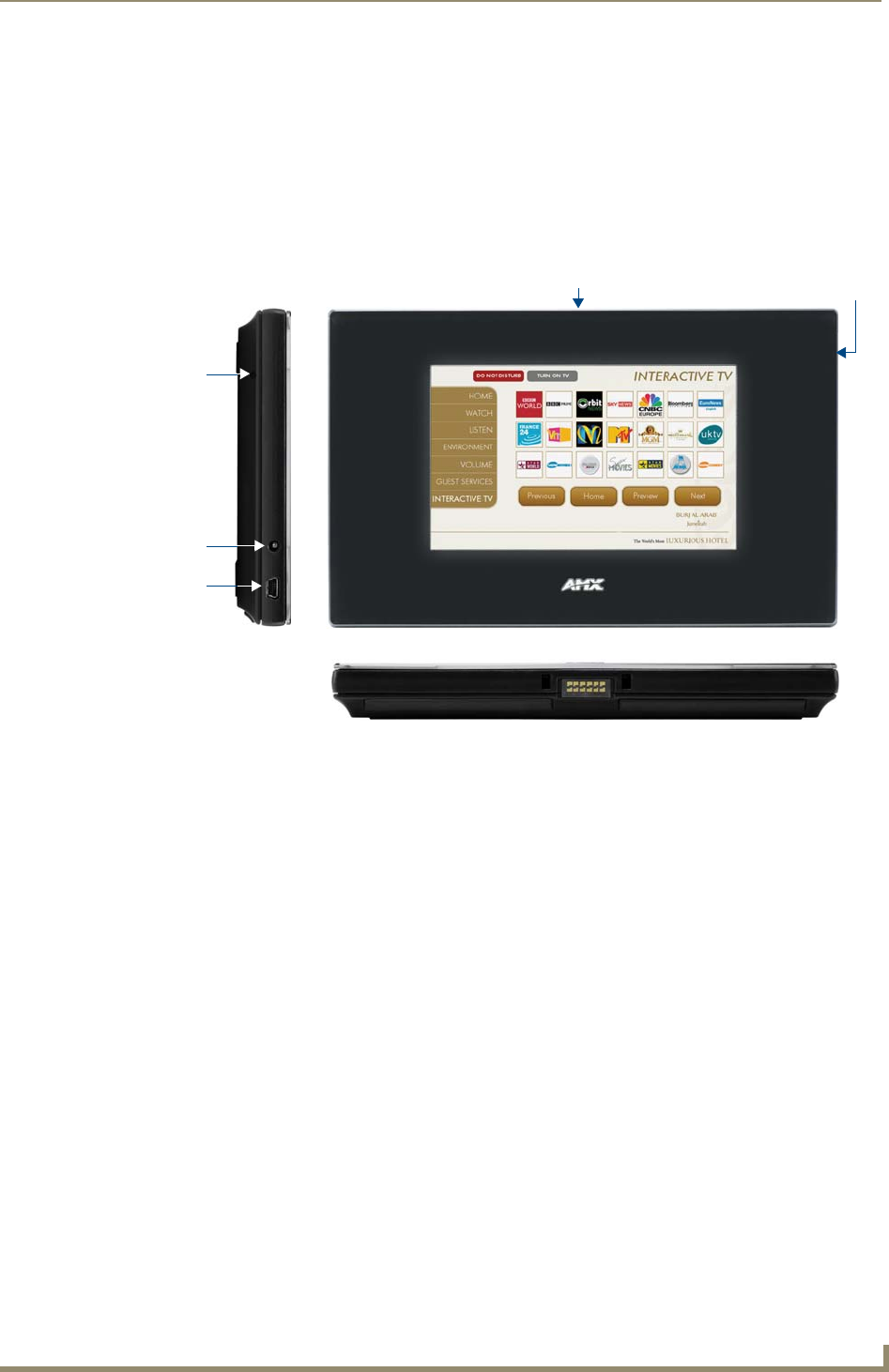

FIG. 2 MVP-5100 touch panel
Stylus
IR Emitters
frontside
bottom
Mini-USB
DC power
Recessed
Reset
button
port
