Accessories
11
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Accessories
Table Charging Station
The MVP-5100 and MVP-5150 may be used with the MVP-TCS-52 Table Charging Station (FG5966-
1X) (FIG. 3), which acts both as a charging station and a direct power connection. The charging station
is available in either white (FG5966-10) or black (FG5966-11).

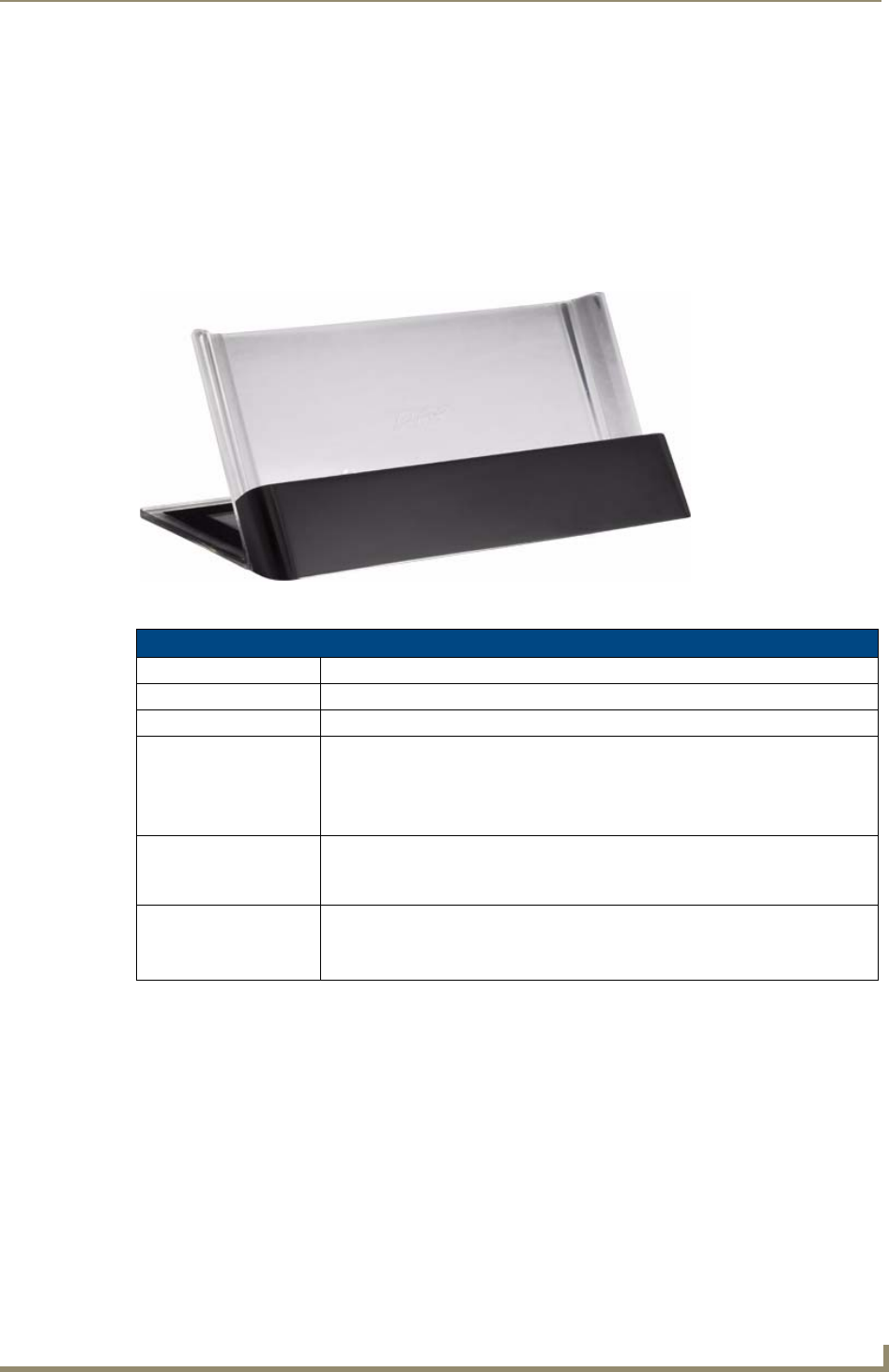

FIG. 3 MVP-TCS-52-GB Table Charging Station - Front
MVP-TCS-52 Specifications
Dimensions (HWD): 8.0” x 4.75” x 3.5” (20.32cm x 12.07cm x 8.89cm)
Weight: .65 lbs (.29 kg)
Rear Connector: 5-pin charging connector on bottom of charging cradle.
Operating/
Storage
Environments:
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included
Accessories
• MVP-TCS-52 Table Charging Station Quick Start Guide
(93-5966-02)
• PS3.0 Power Supply (FG423-44)
Other AMX
Equipment:
• MVP-5100 Modero Viewpoint IR Touch Panel (FG5966-08)
• MVP-5150 Modero Viewpoint Lite Touch Panel (FG5966-07)
• MVP-WCS-52: Wall Charging Station (FG5966-1X)
