Accessories
13
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Wall Charging Station
The optional MVP-WCS-52 Wall Charging Station (FG5966-1X) offers the same recharging and
connection features as the Table Charging Station, with the advantage of being placed within accessible
locations where the table station is either inconvenient or impractical (FIG. 5). The Wall Charging
Station is available in either white (FG5966-13) or black (FG5966-12).
The features of the MVP-WCS-52 include:
Full charging of a docked touch panel within approximately 4.5 hours
Touch panel code lock for security
Integrated docking alignment guides for easy docking
Panel eject design with mechanical or electronically controlled capabilities.

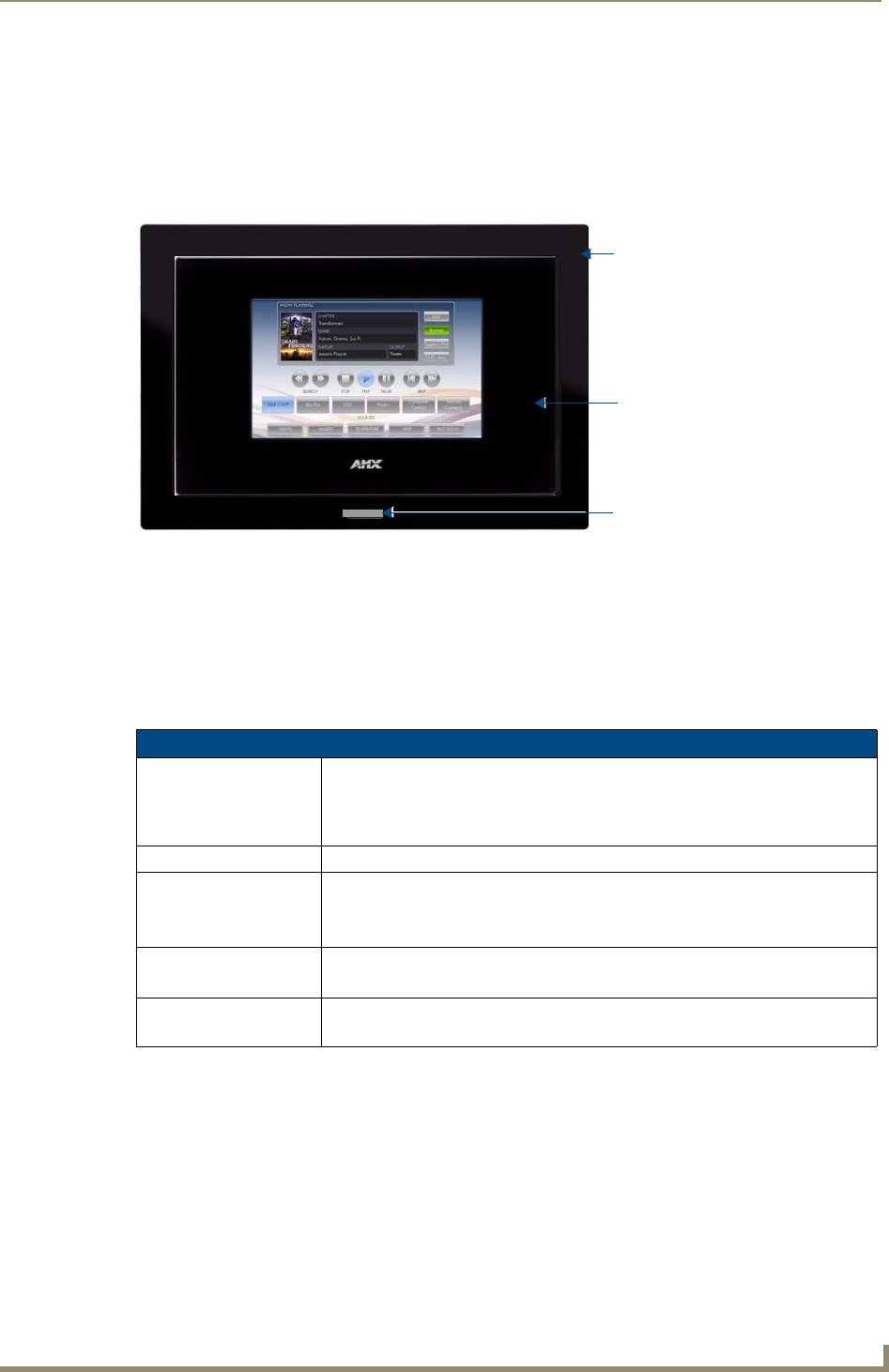

FIG. 5 MVP-WCS-52-GB Wall Charging Station - Front
MVP-WCS-52 Specifications
Dimensions (HWD): 8.375" x 6.09" x 2.19" (21.27 cm x 15.46 cm x 5.56 cm)
Note: Always use the cutout/installation dimensions for the MVP-WCS-52 when
installing this unit into various surfaces. This SP engineering drawing is available
online at www.amx.com.
Power Requirements: 3 A @ 12 VDC (Class II listed power supplemented)
Startup Power
Requirements
• Total: 1.7A
• Charging: 1.1A
• Ejection: 0.6A
Weight: • Without box: 0.85 lbs (0.39 kg)
• With box: 1.30 lbs (0.59 kg)
Available Colors: • MVP-WCS-52-GW (White) - FG5966-13
• MVP-WCS-52-GB (Black) - FG5966-12
Security Release button
MVP-5100
MVP-WCS-52
