Configuring Communication
24
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Modero Setup and System Settings
All AMX Modero panels, including the MVP-5100 and MVP-5150, feature on-board Setup pages. Use
the options in the Setup pages to access panel information and make various configuration changes.
Accessing the Setup and Protected Setup Pages
1.
At any time, use the device’s stylus to press down and hold the reset button on the left side of the
device for 3-5 seconds. This opens a release notice to release the button immediately to open the
Setup page (FIG. 12).
2. Press the Protected Setup button. This opens a keypad for entry of the password to allow access to
the Protected Setup page (FIG. 13). Enter the device’s password and press Done to proceed.
For more information on the Setup and Protected Setup pages, refer to the Setup Pages section on
page 43 and the Protected Setup Pages section on page 53.

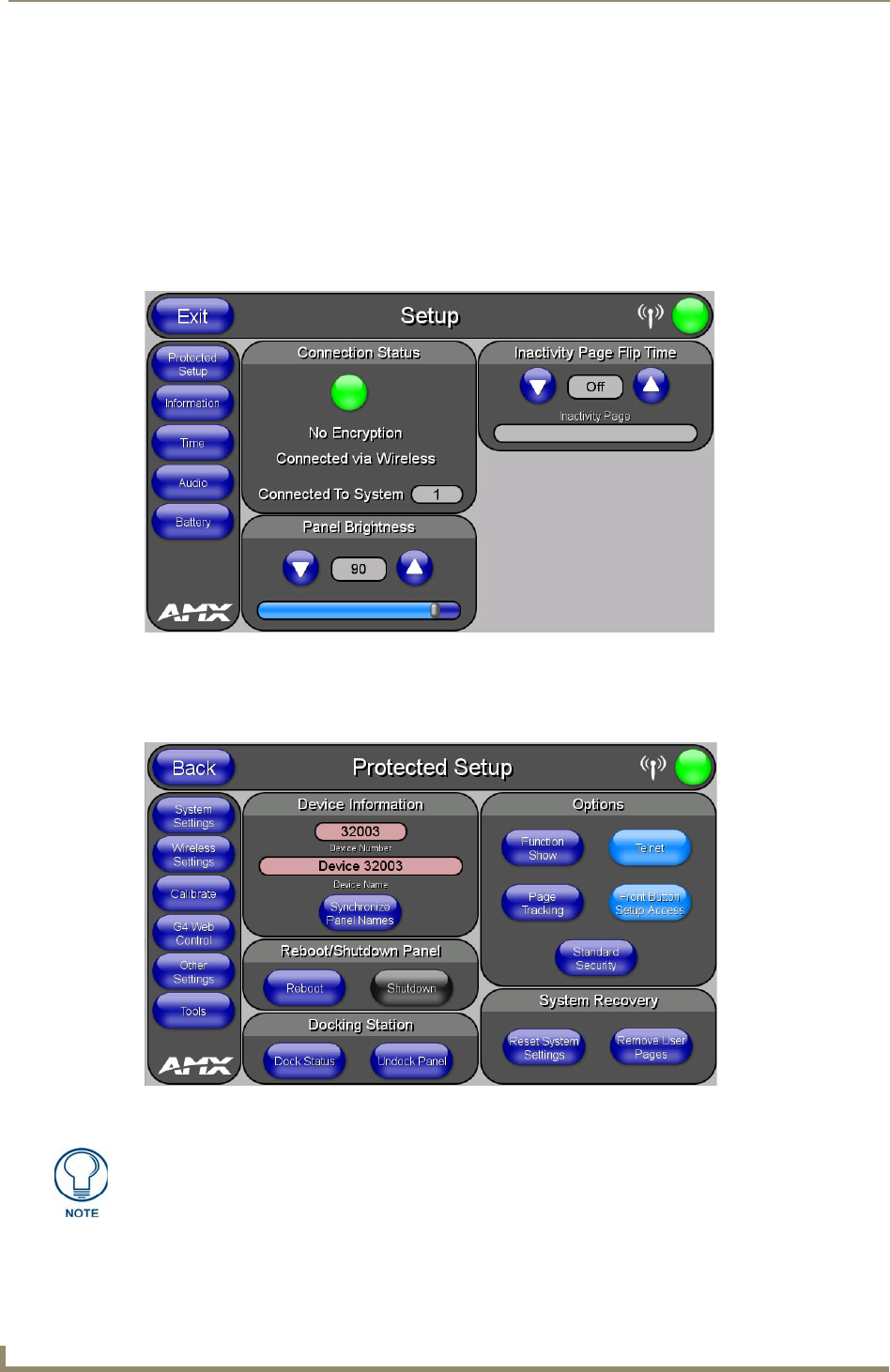

FIG. 12 Setup page
FIG. 13 Protected Setup page
The default password for the Protected Setup page is 1988, but this may be changed
at any time.
