Configuring Communication
31
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
9. Press the Back button to return to the Protected Setup page and press the on-screen Reboot button
to save any changes and restart the device. Remember that the connection must be configured to a
target Master from the System Settings page.
10. After the panel restarts, return to the Wireless Settings page’s Information/Configuration section and
verify the signal level value and signal level.
Automatically Setting SSID
In the Protected Setup page:
1. Select Wireless Settings.
2. Press the Site Survey button at the bottom of the page.
3. Select a WEP secured AP from within the Site Survey page, and press the Connect button
(FIG. 19). .
4. If the security is not handled automatically, the information must be entered manually from the
Wireless Security menu.
The signal level bar should provide some informationregarding the strength of the
connection to a Access Point. If no signal or no IP Address is displayed, configuration
of the network could be required.

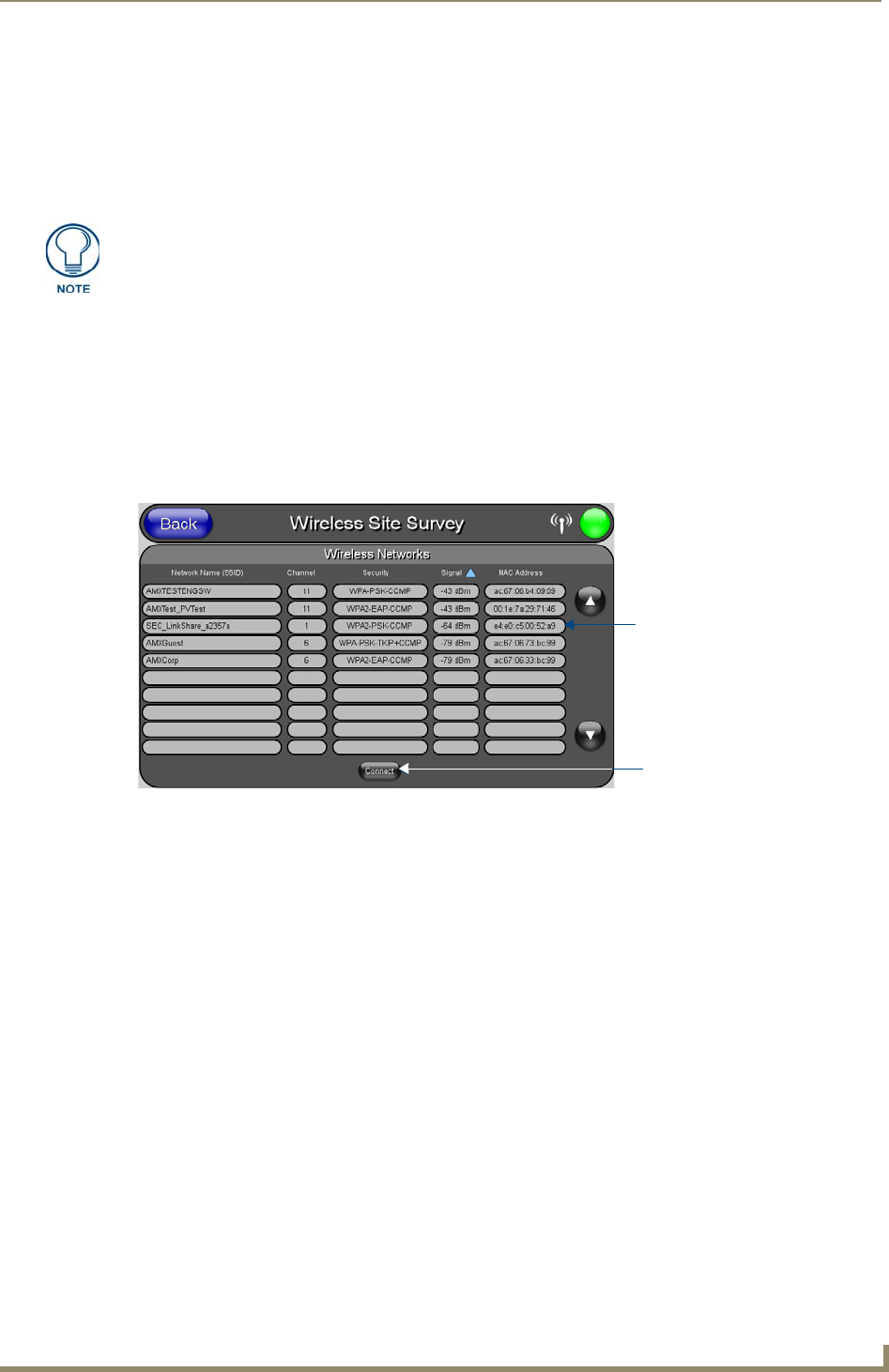

FIG. 19 Wireless Site Survey page
Select a target
AP with the desired
level of security
Connecting to the AP
begins the communication
