Setup Pages
43
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Setup Pages
Both the MVP-5100 and MVP-5150 feature on-board Setup pages. Use the options in the Setup pages to
access panel information and make various configuration changes.

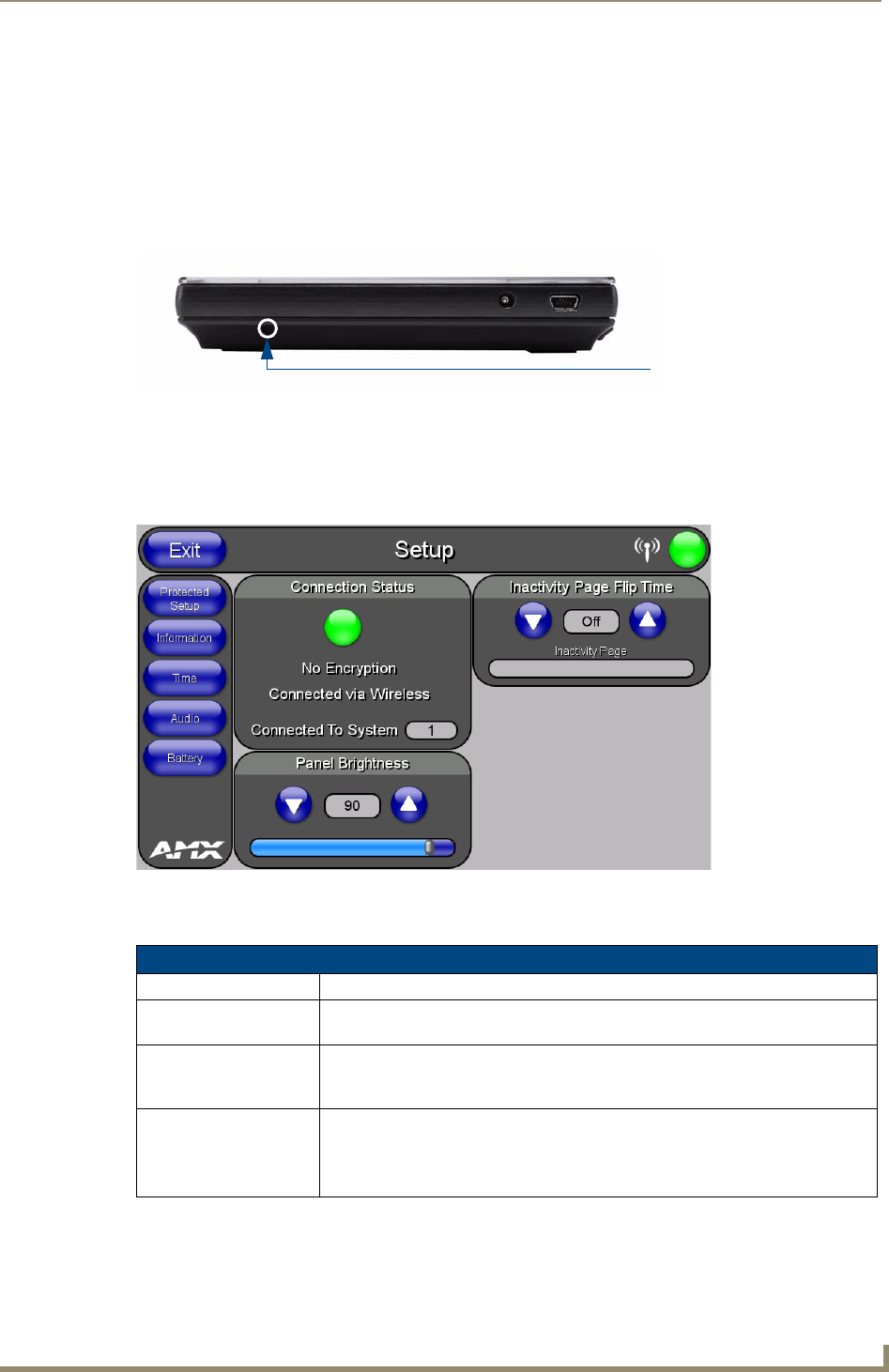

To access the Setup pages, press the reset button and hold for 3 to 5 seconds (FIG. 36).
Setup Pages
The Setup page (FIG. 37) allows quick access to several essential panel properties:
Features on this page include:
FIG. 36 Setup Page Access buttons
FIG. 37 MVP-5100 main Setup page
Setup Page
Exit Button: This button closes the Setup page and returns you to the main panel page.
Navigation Buttons: The buttons along on the left side of the page provide access to secondary Setup
pages (see following sections).
WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is
Wireless (image of a radio antenna), Wired (image of
three networked computers), or
USB (USB connection symbol).
Connection Status icon: The icon in the upper-right corner of each Setup page provides a constant visual
indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Reset button:
Press and hold for 3 seconds
to access the Setup pages.
