Setup Pages
47
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Panel Information Page
The Panel Information page provides detailed panel information (FIG. 40).
Features on this page include:

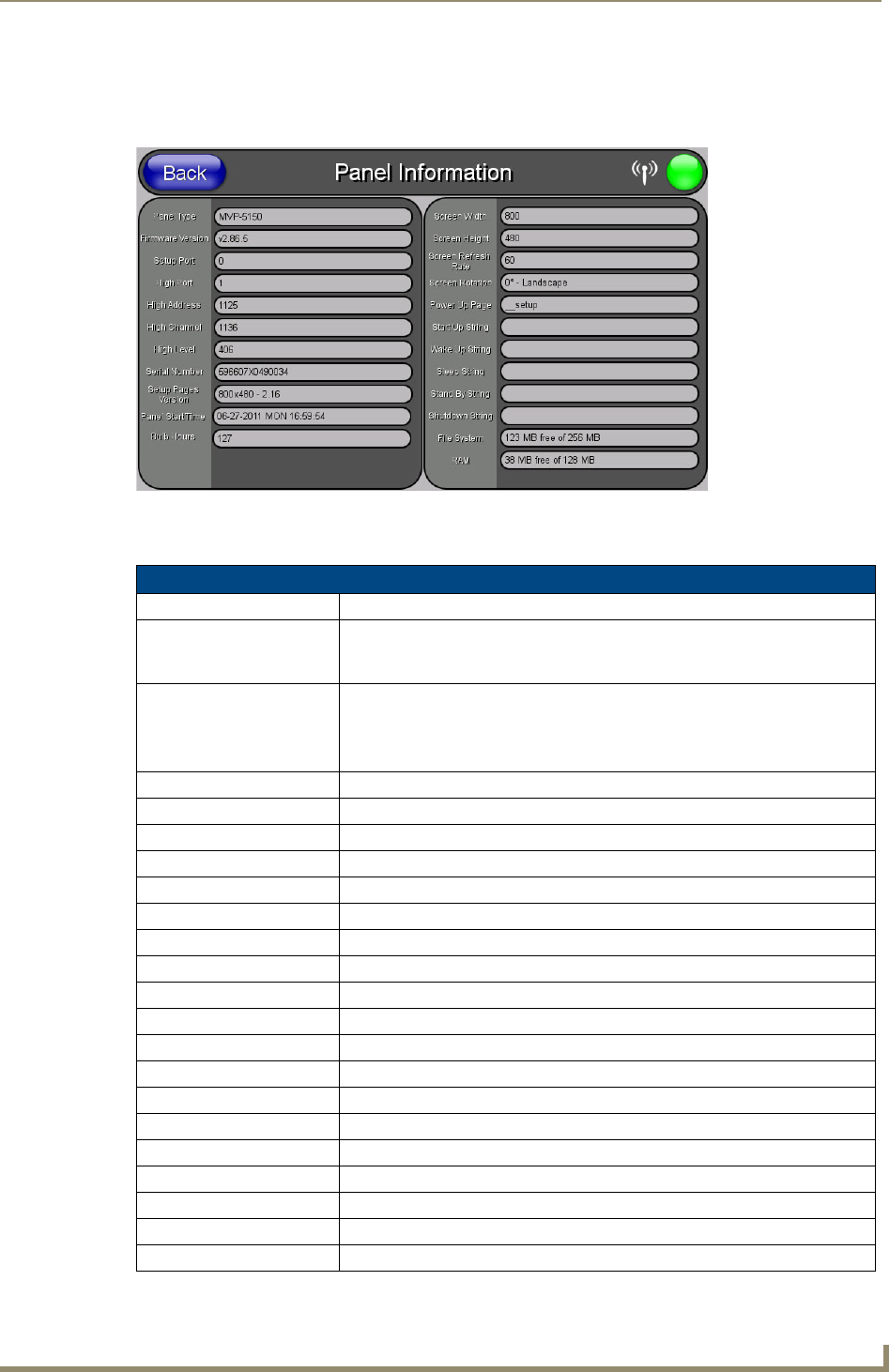

FIG. 40 Panel Information page
Panel Information Page
Back: Saves all changes and returns to the previous page.
WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is
Wireless (image of a radio antenna), Wired (image
of three networked computers), or
USB (USB connection symbol).
Connection Status icon: The icon in the upper-right corner of each Setup page provides a constant
visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Panel Type: Displays the model of the panel being used.
Firmware Version: Displays the version number of the G4 firmware loaded on the panel.
Setup Port: Displays the setup port information (value) being used by the panel.
High Port: Displays the high port (port count) value for the panel.
High Address: Displays the high address (address count) value for the panel.
High Channel: Displays the high channel (channel count) value for the panel.
High Level: Displays the high level (level count) value being used by the panel.
Serial Number: Displays the specific serial number value assigned to the panel.
Setup Pages Version: Displays the type and version of the Setup pages being used by the panel.
Screen Width: Displays the screen width (in pixels). MVP-5100 = 640 pixels.
Screen Height: Displays the screen height (in pixels). MVP-5100 = 480 pixels.
Screen Refresh Rate: Displays the video refresh rate applied to the incoming video signal.
Screen Rotation: Displays the degree of rotation applied to the on-screen image.
Power Up Page: Displays the page assigned to display after the panel is powered-up.
Start Up String: Displays the start-up string.
Wake Up String: Displays the wake up string used after an activation from a timeout.
Sleep String: Displays the sleep string used during a panel’s sleep mode.
Stand By String: Displays the stand by string used during a panel’s Stand By mode.
Shutdown String: Displays the shutdown string used during a panel’s Shutdown mode.
