Protected Setup Pages
55
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
The Protected Setup page for the MVP-5100 is slightly different, as some of the functions are disabled
(FIG. 46). The particular functions that are disabled are explained in detail in the Protected Setup
Navigation Buttons section on page 57.
Rebooting and shutting down the touch panel
To reboot either the MVP-5100 or the MVP-5150:
1. Access the Protected Setup page.
2. Press the Reboot button.
3. Wait until the panel completes its reboot.
4. Log back into the Protected Setup page, if necessary.
To shut down the panel:
1. Access the Protected Setup page.
2. Press the Shutdown button.
3. Disconnect any power source plugs or USB connections, if necessary.

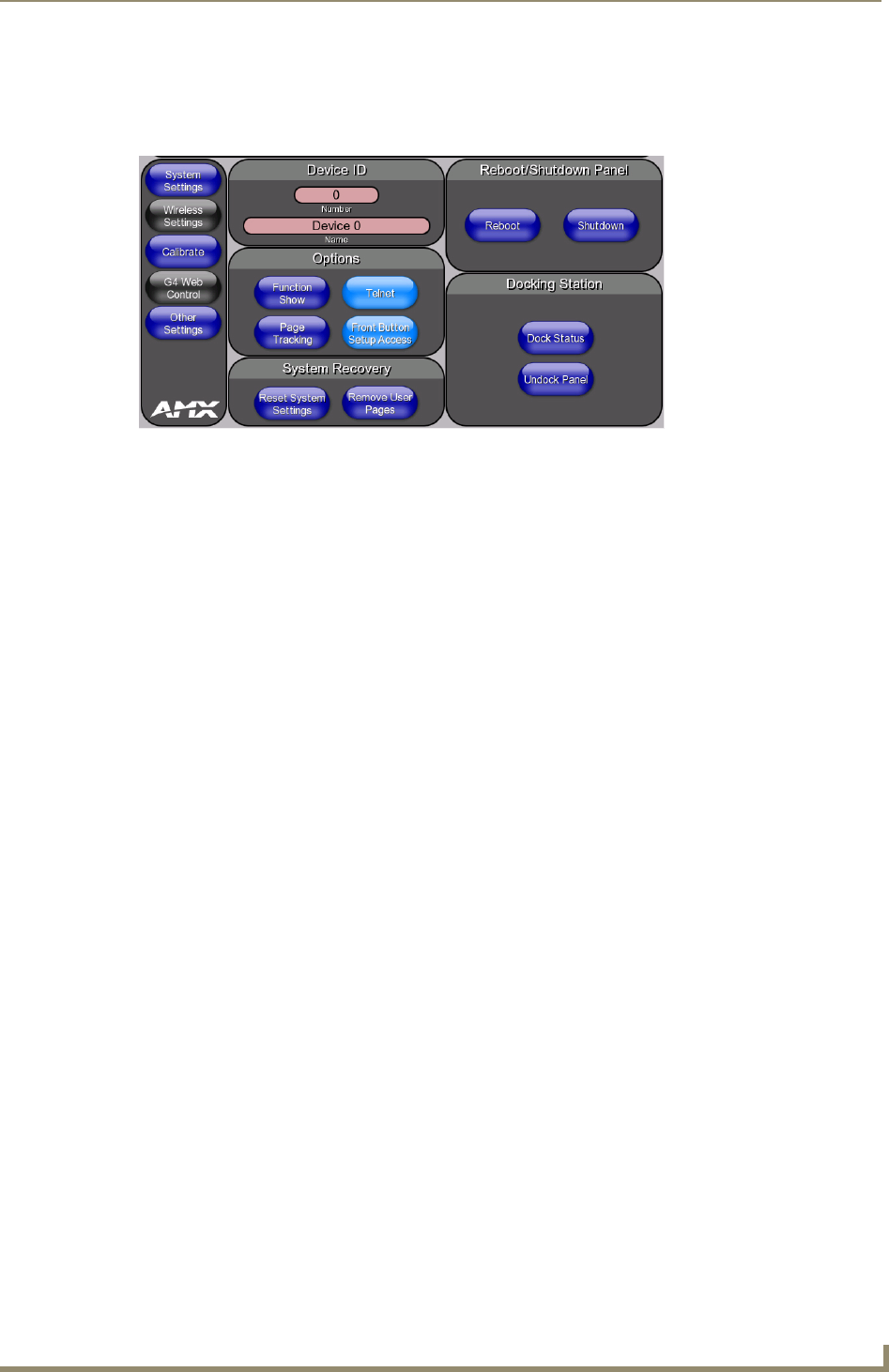

FIG. 46 Protected Setup page for the MVP-5100
