Protected Setup Pages
57
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Protected Setup Navigation Buttons

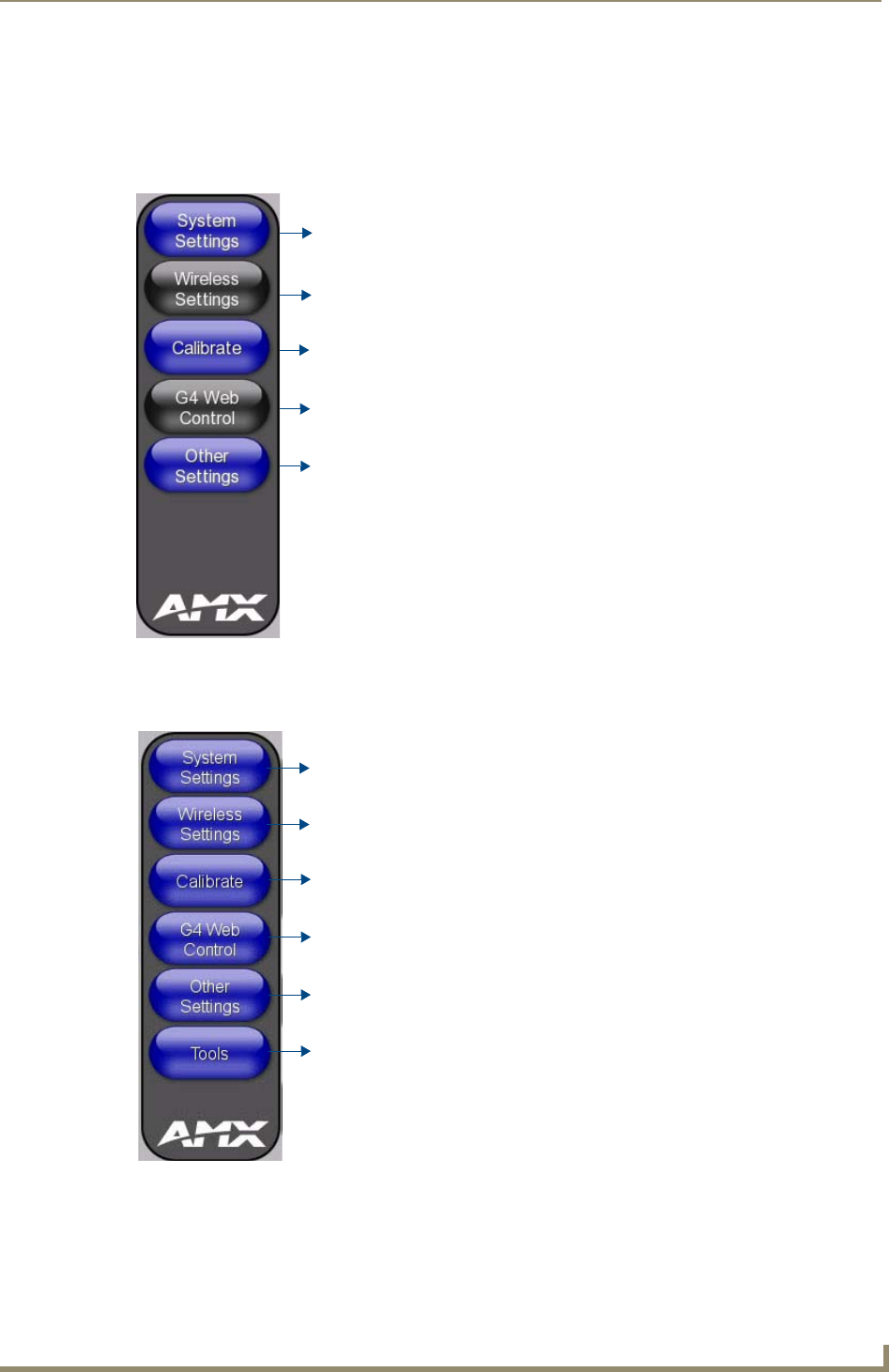

The Protected Setup Navigation Buttons (FIG. 48) appear on the left edge of the Protected Setup page.
The Navigation Buttons for the MVP-5100 have different functionality than those for the MVP-5150, as
shown below.
FIG. 48 Protected Setup Navigation Buttons for the MVP-5100
FIG. 49 Protected Setup Navigation Buttons for the MVP-5150
G4 Web Access is disabled.
Press to access the Passwords Setup page, to specify firmware
Press to access the
Calibrate page, which allows proper calibration of the panel.
Press to access the
System Settings page, which contains IP Settings and Master
and user access passwords.
Wireless Settings are disabled.
Connection information.
Press to access the Passwords Setup page, to specify firmware and user access
Press to access the Calibrate page, which allows proper calibration of the panel.
Press to access the Wireless Settings page, which allows configuration of wireless
Press to access the System Settings page, which contains IP Settings and Master
passwords.
connection settings. (Disabled in the MVP-5100.)
Connection information.
Press to access the Tools page, for panel connection logs, panel statistics, and the
Connection Utility page.
Press to access the G4 Web Control page, which enables and disables remote
display and control of the panel via a Web-enabled PCrunning a VNC client.
