Protected Setup Pages
86
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Panel Statistics Page
The Panel Statistics page (FIG. 62) displays activity between the device and the network in proportions of
ICSP messages, blink messages, and Ethernet versus wireless use.

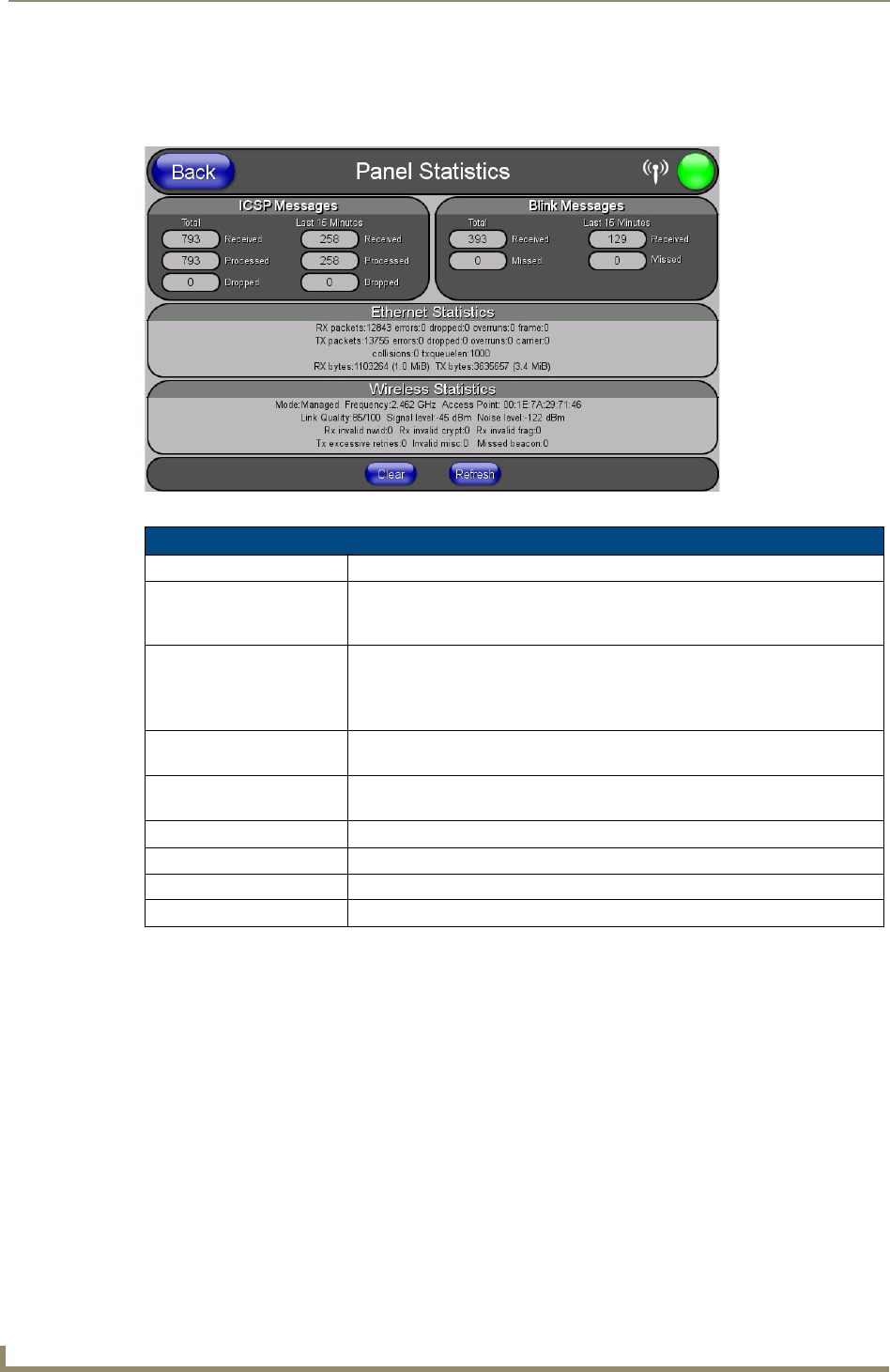

FIG. 62 Panel Statistics Page
Panel Statistics Page
Back: Saves all changes and returns to the previous page.
WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is
Wireless (image of a radio antenna), Wired (image
of three networked computers), or
USB (USB connection symbol).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
ICSP Messages: Lists the number of ICSP messages received, processed, and dropped, both in
total and within the last 15 minutes.
Blink Messages: Lists the number of blink messages received and missed, both in total and
within the last 15 minutes.
Ethernet Statistics: Displays the percentage of connection time via Ethernet.
Wireless Statistics: Displays the percentage of connection time via wireless connections.
Clear: Clears all fields on the
Panel Statistics page.
Refresh: Refreshes all data on the
Panel Statistics page.
