Protected Setup Pages
87
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Connection Utility Page
The Connection Utility page (FIG. 63) displays the current wired and wireless connection information,
including the latest link quality and signal strength information.

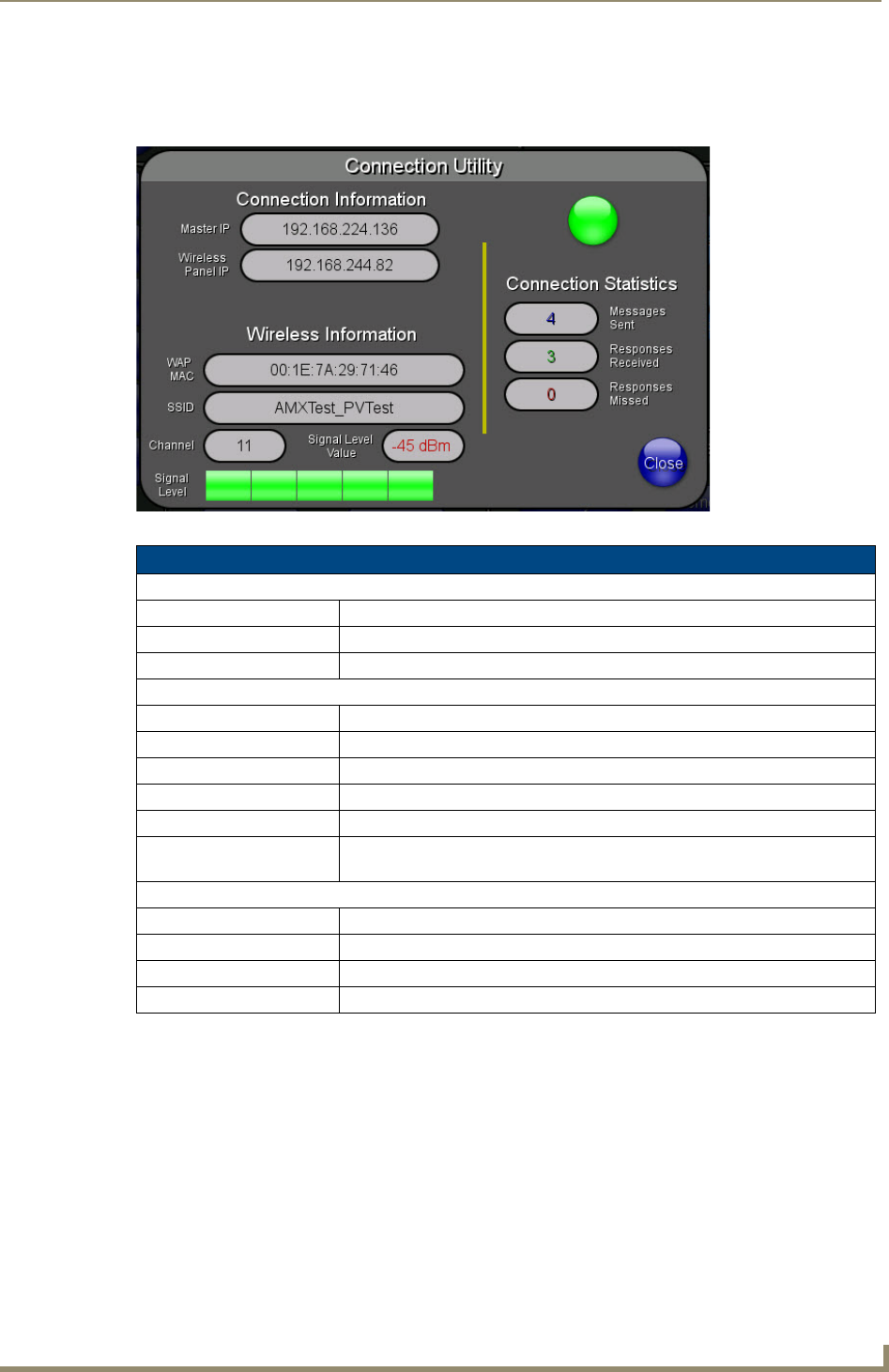

FIG. 63 Connection Utility Page
Connection Utility Page
Connection Information:
Master IP: The IP address for the network’s Master.
Wired Panel IP: The IP address used by the device for wired connections.
Wireless Panel IP: The IP address used by the device for wireless connections.
Wireless Information:
MAC: The AP’s MAC address.
SSID: Displays the currently used SSID of the target AP.
Channel: The channel being used for the current connection.
Signal Level Value: Displays the current level value of the target AP link.
Signal Value: Displays the current value of the target AP signal.
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Connection Statistics:
Query Messages Sent: Lists the number of queries sent to the AP.
Responses Received: Lists the number of responses received from the AP.
Responses Missed: Lists the number of responses missed by the AP.
Close: Closes the
Connection Utility page and returns to the Protected Setup page.
