Wiring and Device Connections
20
Vision
2
Operation/Reference Guide
Set-Top Boxes
The STB-02SB (FG3100-61), STB-03CC (FG3100-62), and STB-04 Set-Top Boxes (FG3100-65) support
viewing live programming via a producer channel or a MPEG encoder. The set-top boxes access your Vision
2
server and display available programming on a connected video source. The set-top boxes are used only for
MPEG content. They support viewing MPEG Video on Demand, but support only Stop, Play, and Pause
features.

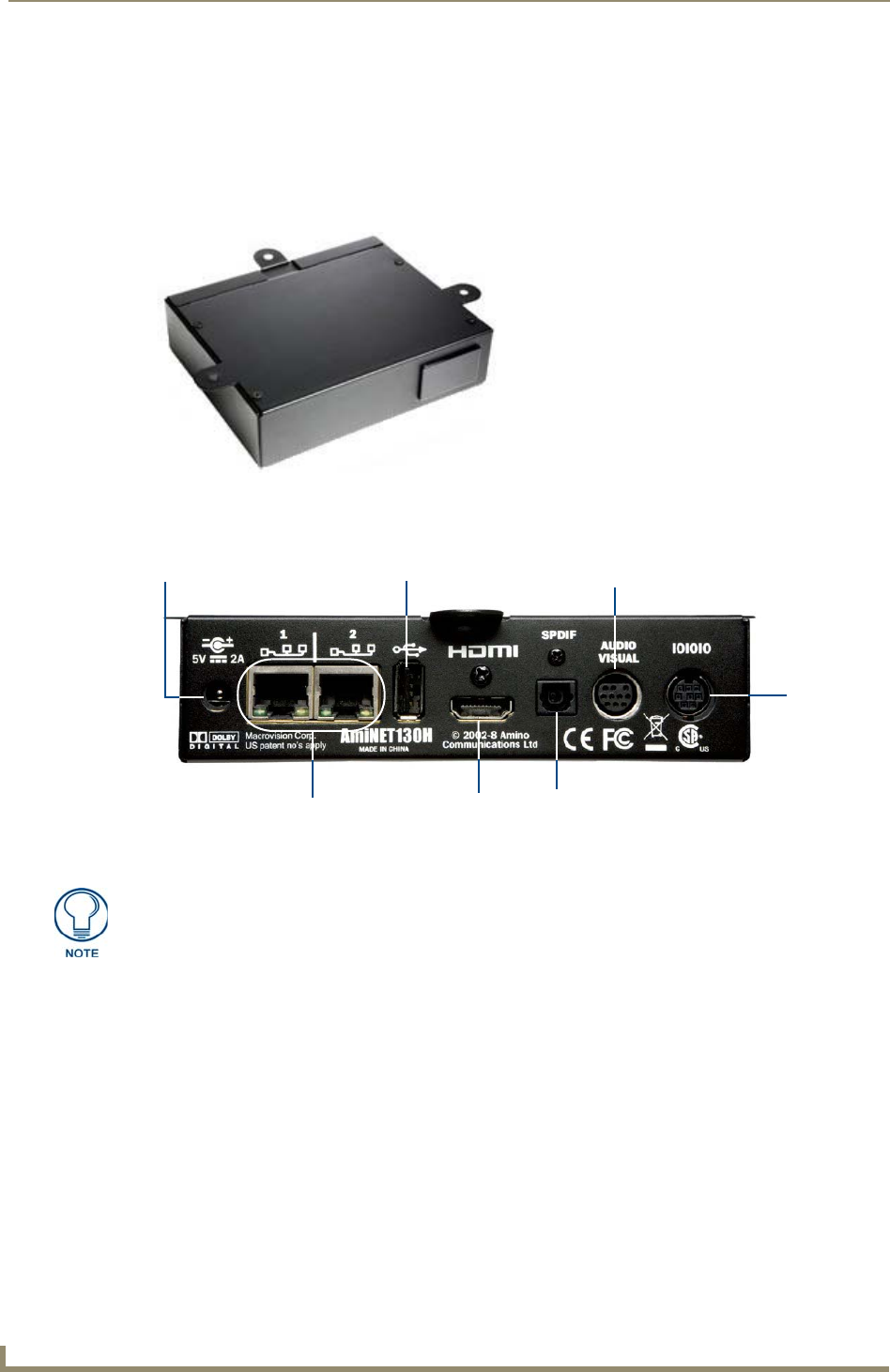

FIG. 11 displays the rear panel of the STB-02SB and STB-03CC Set-Top boxes.
FIG. 10 STB-02SB Set-Top Box
FIG. 11 STB-02SB and STB-03CC Set-Top Box (rear-view)
LAN ports
HDMI port
Power
USB port
Optical
audio port
Audio/Video port
IR extender/
TVI port
The Set-Top Boxes have a limit of 18Mbps. Heavy traffic loads can cause the set-top
box to reset itself periodically.
