TYPICAL PERFORMANCE CHARACTERISTICS
0
–40
–20
–60
–80
–100
–120
0 2 4 6 8 10 12 14 16 18 20
05726-056
AMPLITUDE (dBFS)
FREQUENCY (MHz)
AIN = –0.5dBFS
SNR = 61.22dB
ENOB = 9.88 BITS
SFDR = 85.20dBc

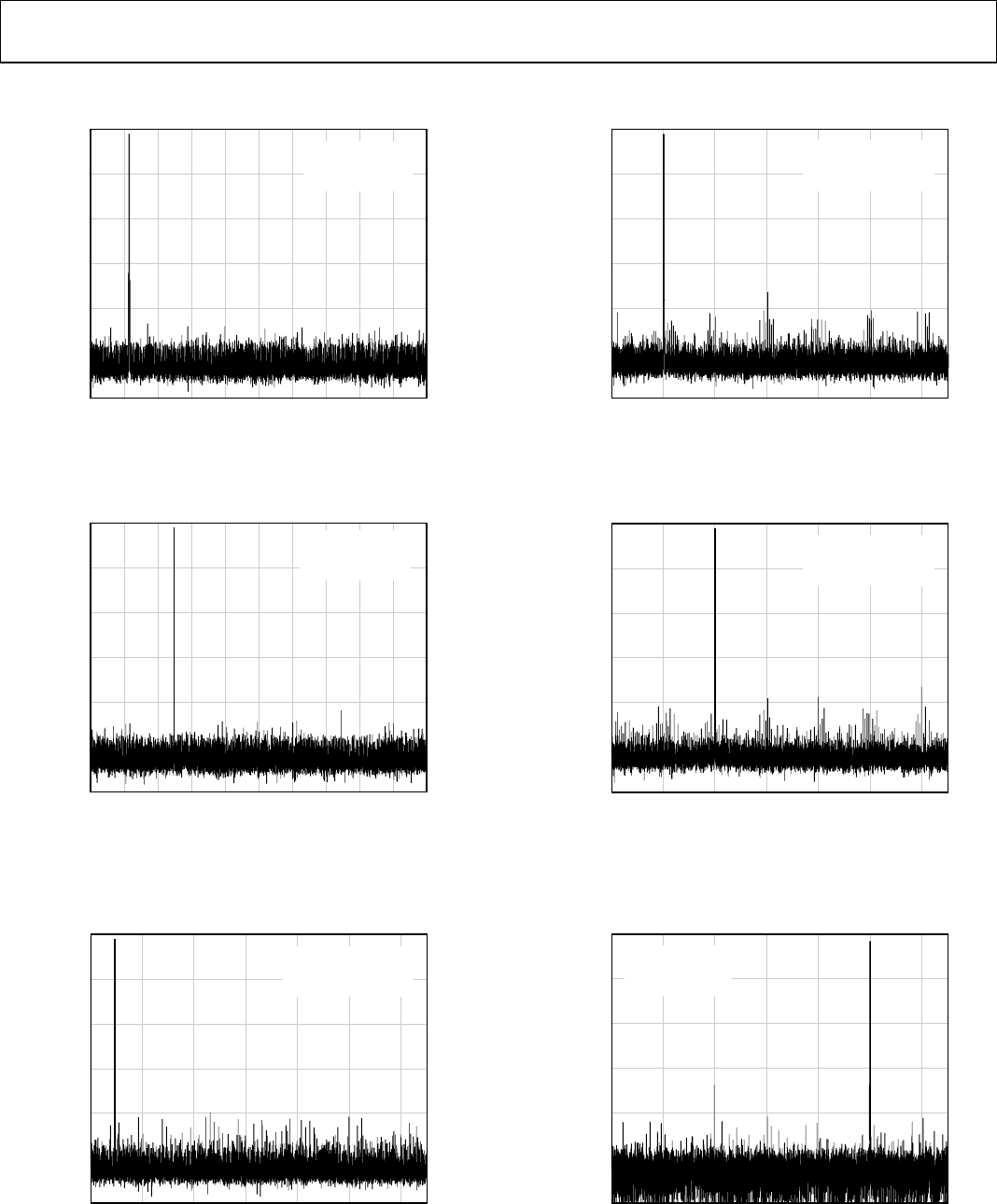

Figure 15. Single-Tone 32k FFT with f
IN
= 2.4 MHz, f
SAMPLE
= 40 MSPS
0
–40
–20
–60
–80
–100
–120
0 2 4 6 8 10 12 14 16 18 20
05726-076
AMPLITUDE (dBFS)
FREQUENCY (MHz)
AIN = –0.5dBFS
SNR = 59.87dB
ENOB = 9.65 BITS
SFDR = 81.68dBc
Figure 16. Single-Tone 32k FFT with f
IN
= 35 MHz, f
SAMPLE
= 40 MSPS
0
–40
–20
–60
–80
–100
–120
030520251510
05726-057
AMPLITUDE (dBFS)
FREQUENCY (MHz)
AIN = –0.5dBFS
SNR = 59.93dB
ENOB = 9.66 BITS
SFDR = 77.58dBc
Figure 17. Single-Tone 32k FFT with f
IN
= 2.3 MHz, f
SAMPLE
= 65 MSPS
0
–40
–20
–60
–80
–100
–120
030520251510
05726-058
AMPLITUDE (dBFS)
FREQUENCY (MHz)
AIN = –0.5dBFS
SNR = 59.81dB
ENOB = 9.64 BITS
SFDR = 70.02dBc
Figure 18. Single-Tone 32k FFT with f
IN
= 70 MHz, f
SAMPLE
= 65 MSPS
0
–40
–20
–60
–80
–100
–120
030520251510
05726-059
AMPLITUDE (dBFS)
FREQUENCY (MHz)
AIN = –0.5dBFS
SNR = 59.68dB
ENOB = 9.62 BITS
SFDR = 70.86dBc
Figure 19. Single-Tone 32k FFT with f
IN
= 120 MHz, f
SAMPLE
= 65 MSPS
0
–40
–20
–60
–80
–100
–120
030520251510
05726-053
AMPLITUDE (dBFS)
FREQUENCY (MHz)
AIN = –0.5dBFS
SNR = 59.93dB
ENOB = 9.66 BITS
SFDR = 63.51dBc
Figure 20. Single-Tone 32k FFT with f
IN
= 170 MHz, f
SAMPLE
= 65 MSPS
