Working with PIPs

The Smart MatriX allows users to manipulate 2 PIPs (Picture In Picture) which you can move, size, crop or

zoom, apply transparency or transitions to.

PIP conguration

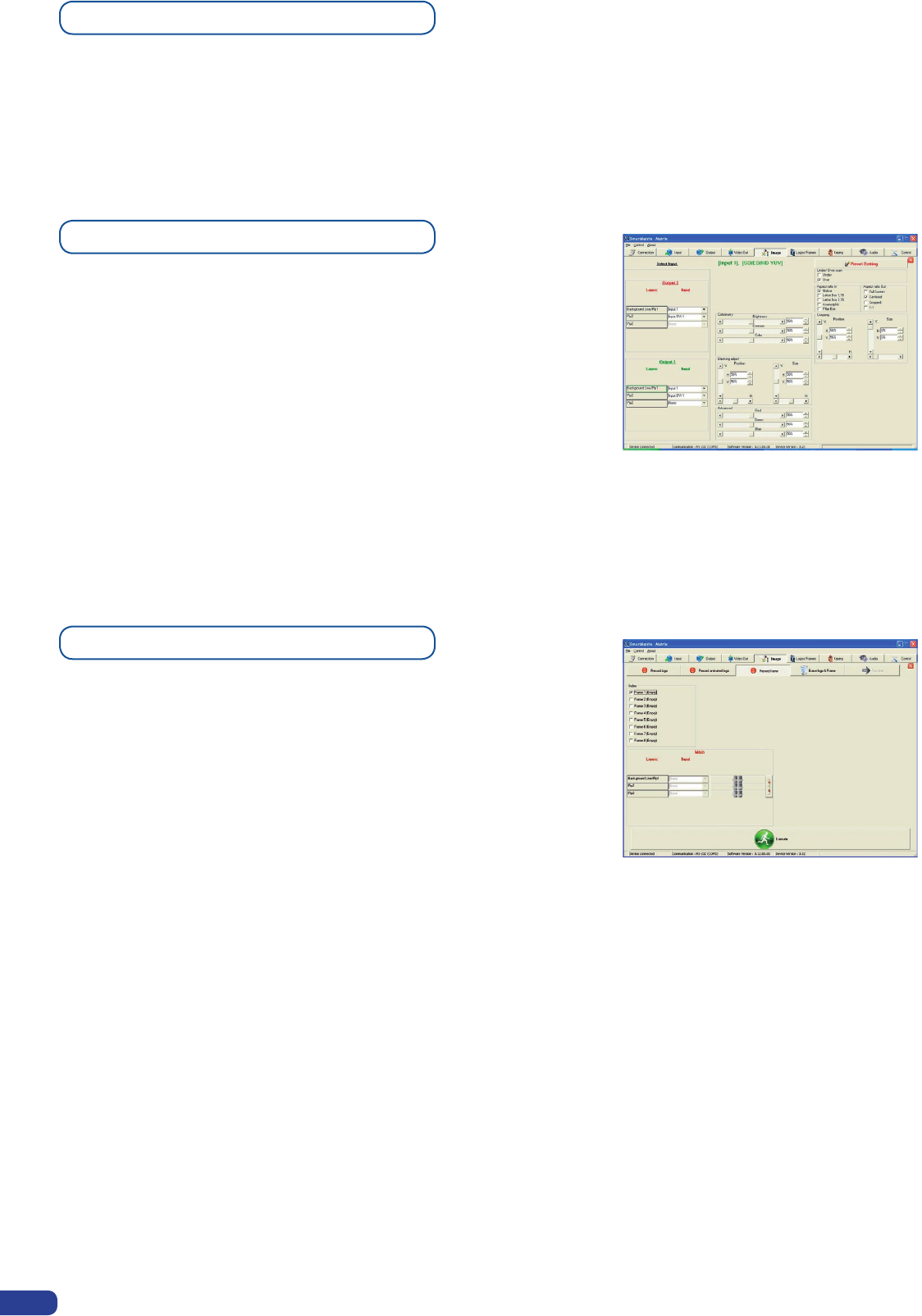

1. Click on the Image tab of the RCS interface. The empty Image

screen will appear on screen.

2. By clicking on the drop-down menu in the Preview section,

situated next to the layer you wish to use as a PIP, you will

access the image parameters of the PIP source you select

(#1 to #12).

3. Set the desired PIP attributes (size, position, zoom, border,

transparency...).

4. Click on the Image tab to return to the main screen.

Working with Frames

It is possible to store up to 8 frames in the Smart MatriX non volatile

memory. Frames are mainly used as backgrounds in a typical show

or event setup, and can be recorded from any of the 8 Smart MatriX

sources and called back at the click of a single button.

* NOTE * : To memorize a frame, select an input, and take it to the

Main screen. Once the frame is displayed on your Main output, it is

then possible to store it to the Smart MatriX non volatile memory.

* NOTE * : Frames may be used only one at a time. A frame may not

be used as a Live Background.
