Datasheet

battery type:
Alkaline Manganese Dioxide
battery size:
AAAA (LR8D425)
chemical system:
Zn / KOH-H
2
O / MnO
2
Conditions
nominal voltage:
1.5
V
open circuit voltage:
1.57…1.63
V
new battery
1.55…1.63
V
after 1 year storage at 20°C
all measurements at 22 ± 2°C ambient
capacity
rated:
500
mAh
discharge at 35mA;
24hours/day
End Voltage (EV): 0.8V
minimum:
470
mAh
discharge at 35mA;
24hours/day
End Voltage (EV): 0.8V
Standard discharge time
nominal:
12
h
at 30
Ω
load
new battery
EV: 0.9V
for QC measurement (at 35mA
load; 24h/d; E.V.0.8V)
minimum:
13.5
h
tested within 30 days after delivery
11
h
after 12 months storage at room temperature
Service Output

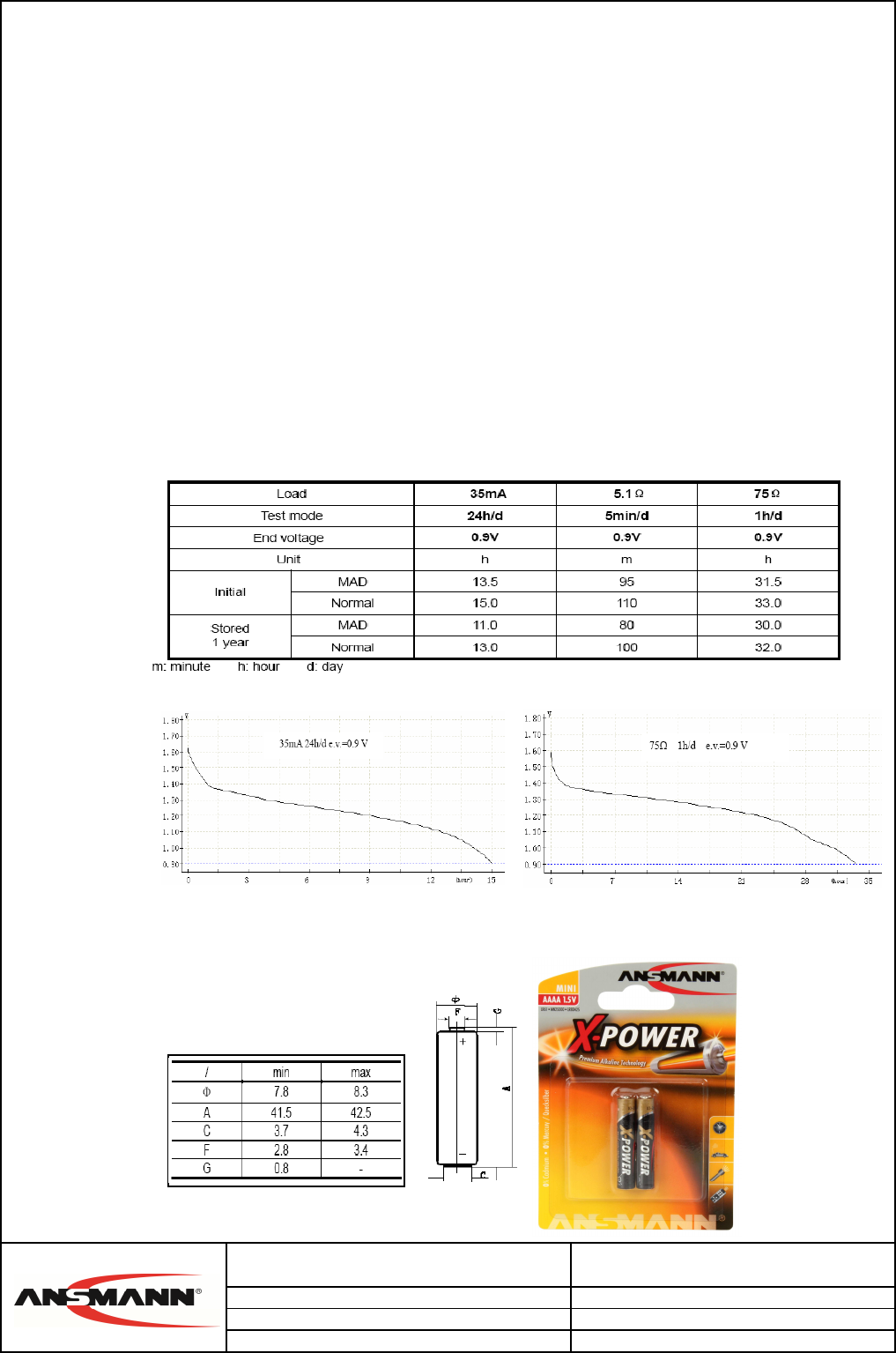

Discharge diagrams:
shelf life:
7
years
under proper storage conditions (ta:
≤ 22°C; RH: 60 ± 15%)
≥
95
%
of the capacity will remain after 12 months storage
operating temperature
range:
-
20...60
°C
mechanical specifications:
blister card
dimensions:
120 x 85mm
weight:
21g (incl. battery)
nominal weight:
6.8
g
43
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
author / date
supplier no.
AAAA Alkaline Battery
2pcs blister package
1510-0005
701381
TG / 18.10.2013
ANSMANN Specifications for model:
data sheet no. / part no.
unit: mm
