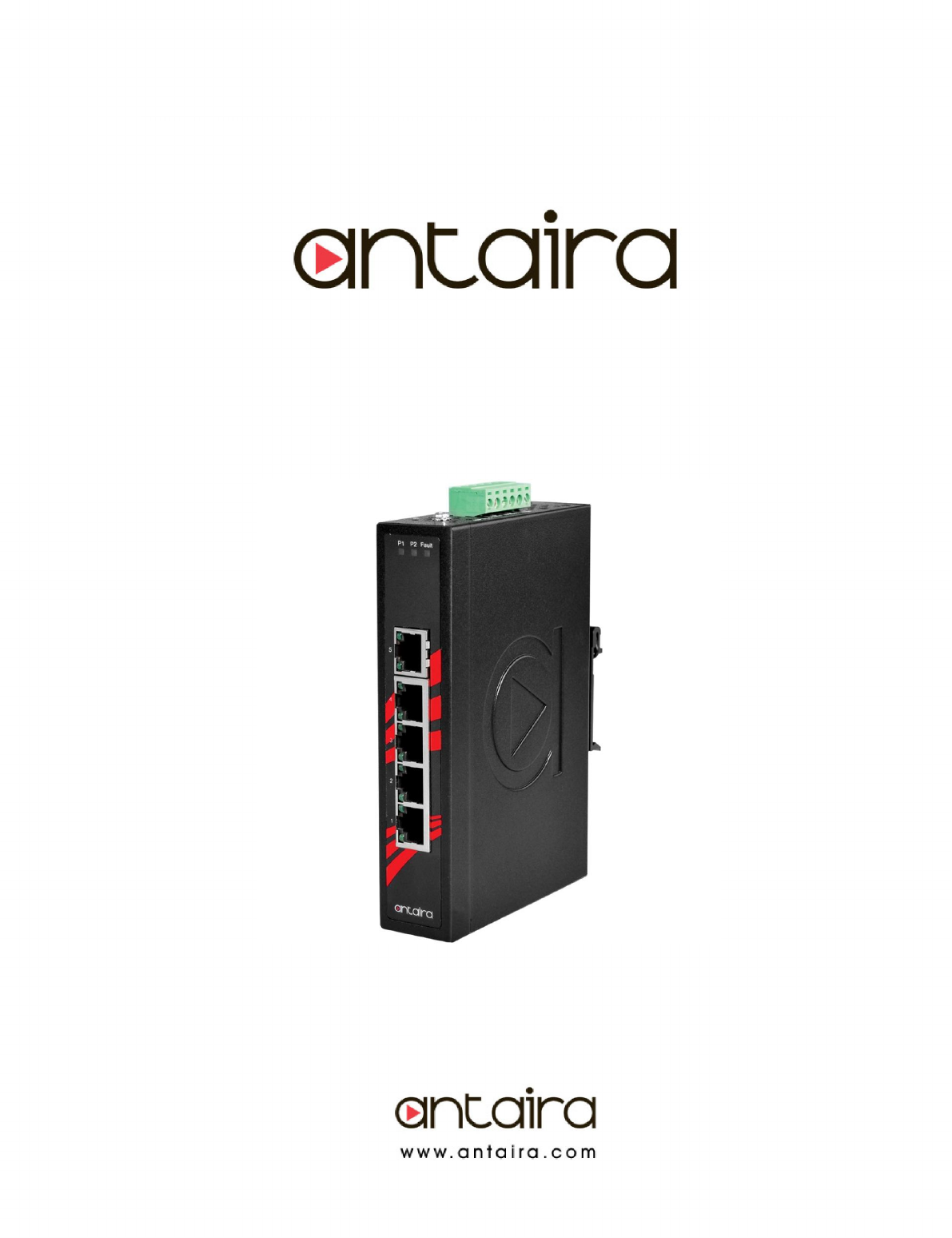

Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 LNX-500A 5-Port Industrial Unmanaged Ethernet Switches w/5*10/100Tx User Manual Version 2.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 © Copyright 2018 Antaira Technologies, LLC All Rights Reserved This document contains information, which is protected by copyright. Reproduction, adaptation or translation without prior permission is prohibited, except as allowed under the copyright laws. Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 Table of Contents 1. Overview………………… ............................................. 1 1.1 Key Features….. ................................................ 1 1.2 Package Contents .............................................. 2 1.3 Safety Precaution……… .................................. 2 2. Hardware Description ................................................. 3 2.1 Physical Dimensions .......................................... 3 2.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 1. Overview Antaira’s LNX-500A industrial unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with five 10/100Tx Fast Ethernet ports, which the RJ-45 interface provides auto detection of MDI or MDI-X, and each port builds with data memory buffers that support the store-and-forward mechanism.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 1.2 Package Contents LNX-500A(T): 5-port industrial unmanaged Ethernet switch, w/5*10/100Tx User manual 1-Product CD 2-Wall mounting brackets and screws 1-DC cable –18 AWG &DC jack 5.5x2.1mm 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-500A series: 5-port industrial unmanaged Ethernet switch with 5*10/100Tx. (W x D x H) is 30mm x 99mm x 142mm Figure 2.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 2.2 Front Panel The front panel of the LNX-500A series industrial unmanaged Ethernet switch is shown below in Figure 2.2. Figure 2.2 The Front Panel of LNX-500A Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNX-500A series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC). Figure 2.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 RJ-45 Pin Assignments(Table 2.2) Pin Number Assignment 1 Rx+ 2 Rx- 3 Tx+ 6 TxTable 2.2 RJ45 Pin Assignments Note “+” and “-” signs represent the polarity of the wires that make up each wire pair. All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use straight-through cables (see figure below) for all network connections to PCs, servers, other switches or hubs.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 2.6 Cabling Use the four twisted-pair Category 5e or above cabling for RJ-45 port connection. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than100meters (328ft.) long. 2.7 Wiring the Power Inputs Please follow below steps to insert the power wire. 1.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit. An application example for the fault alarm contact is shown below in Figure 2.8. Figure2.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch. 2. To remove the DIN-Rail bracket, do the opposite from step 1. 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DINRail on to the track as shown below in Figure 3.2. Figure 3.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. 3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch. 4.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’sLNX-500A series:5-port industrial unmanaged Ethernet switch with 5*10/100Tx. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. 2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 6. Trouble Shooting Verify you have the right power cord or adapter. Never use a power supply or adapter with noncompliant DC output voltage or it will burn the equipment. Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 5e for 10M/100Mbps.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 7. Technical Specification Table 7.1has the technical specifications for Antaira’s LNX-500A series: 5-port industrial unmanaged Ethernet switch with 5*10/100Tx. Standard Protocol Transfer Rate IEEE 802.3 10BaseT Ethernet IEEE 802.
Antaira Industrial Ethernet Switches LNX-500A Series User Manual V2.2 Safety UL 60950-1, UL Class 1 Division 2, ISA 12.12.01 Table 7.1 LNX-500A Series Technical Specification Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / support@antaira.com www.antaira.eu / info@antaira.eu www.antaira.com.tw / info@antaira.com.
