4-OUTPUT HDTV
DISTRIBUTION AMPLIFIER
This Package Contains:
- 4-Output HDTV Distribution Amplifier
- Power Supply for indoor use
- 40 in. Coax Cable
You May Need (not included):
- Screws and anchors for mounting
- Grounding Wire (especially if used outdoors)
- Power Inserter for outdoor installation
- 75 Ohm F-Termination Caps
(Order online: antennasdirect.com)
General Precautions:
- Once adapter is plugged into an outlet the amplifier is on, there is no power switch.
- Terminate any unused outputs with a 75 Ohm F Termination cap to prevent any unwanted signal reflections.

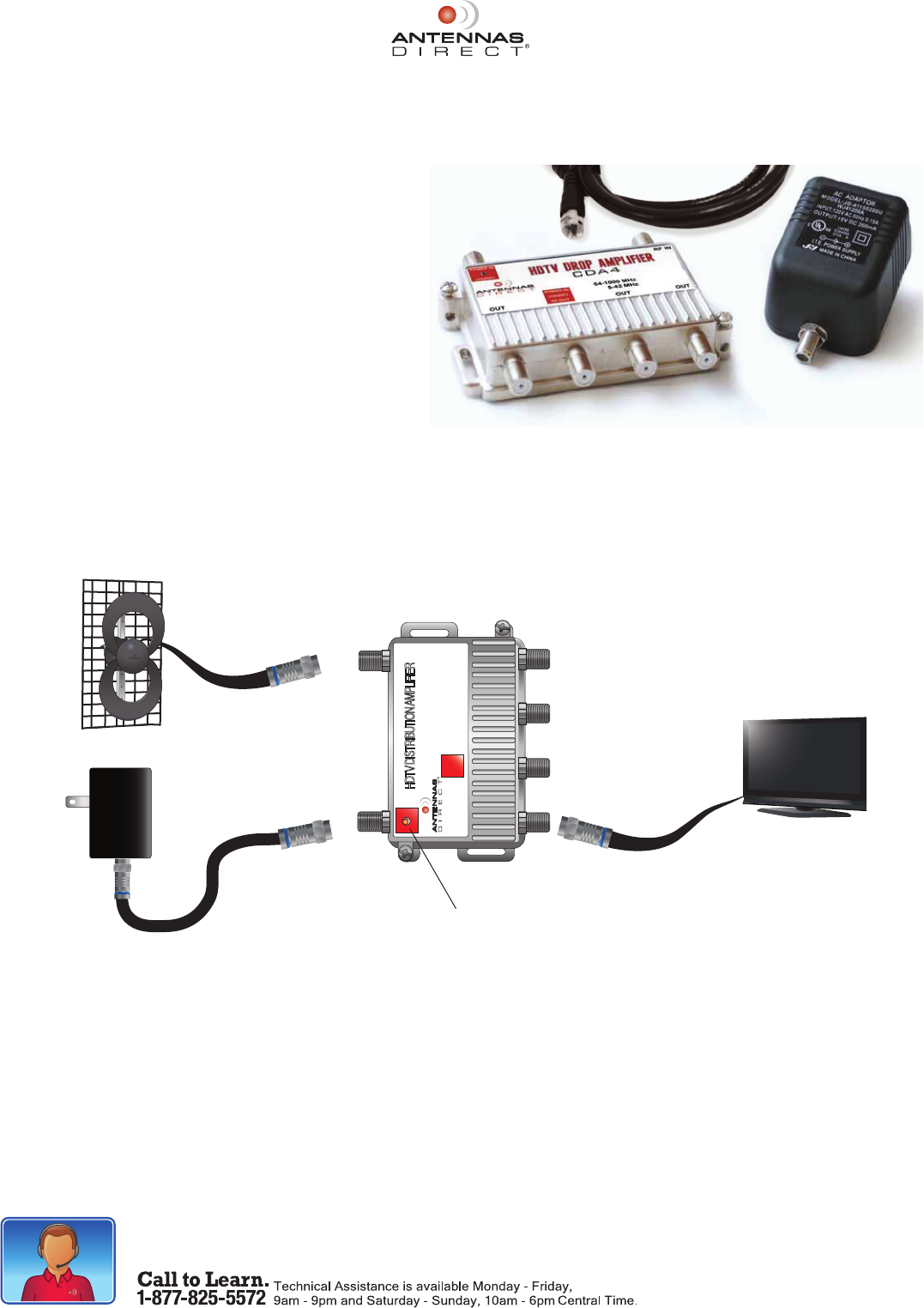

Indoor Installation:
• Make all the connections to the Distribution Amplifier before plugging it into an electrical outlet.
• Find a location to serve as a central distribution point.
•
•
Connect the Power Supply included in the box to the top left amp output labelled ‘POWER IN’ using a
piece of 75 Ohm coaxial cable.
• Connect the cable coming from the antenna to the top right input labelled ‘RF IN’.
• Connect cables going to individual televisions to the each of the four outputs.
• Terminate any unused outputs with 75 Ohm F termination caps.
• Plug Power Supply into electrical outlet. Check to see if power LED on amp is illuminated.
HDTV DISTRIBUTION AMPLIFIER
CDA4
POWER IN
(15 V DC)
RF IN
54-1000 MHz
5-42 MHz
POWER IN
(15 V DC)
RF OUT
OUT OUT OUT
To TV
To Antenna
To Power Supply
© Antennas Direct 2012 11/12 CDA-4
Installation Instructions
Mount the amplifier to a solid surface.
Power On LED
