Hello! Thank you for choosing Anthro.
Before beginning assembly of your 60" Adjusta Unit, take a moment to review the parts listed on the next
page to verify that your shipment is complete. Please review the assembly instructions of all Anthro products
you purchased and are planning to include in this installation, prior to beginning this assembly.
60" Adjusta Unit
Assembly Instructions
1-800-325-3841
To make the assembly of your Adjusta Unit even easier, we have included all of the required tools. The handy
Hex Driver Bit can be used in your electric drill in place of the Hex Driver.
Hex Driver
5
/
32
" ............................................................ 375-5000-00
Hex Driver Bit
5
/
32
" ...................................................... 375-5003-00
Hex Key
5
/
32
" ................................................................. 375-5016-00
Hex Key
3
/
16
" ................................................................. 375-5028-00
3-Way Wrench ............................................................. 225-5196-03
8 oz. Rubber Mallet ..................................................... 375-5022-00

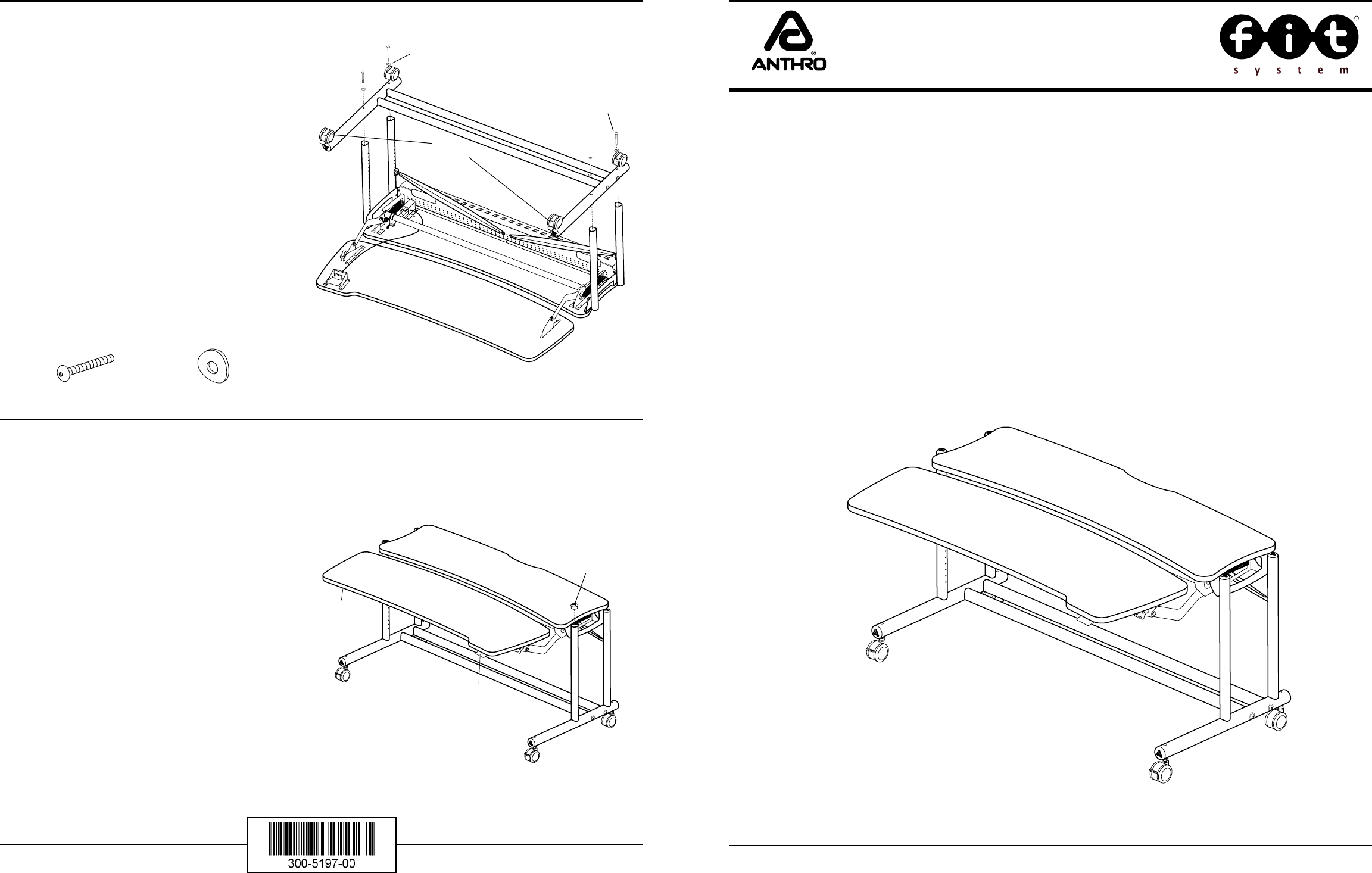

Step 15
Align the Base Assembly on the Vertical Tubes as shown.
Secure the Base Assembly by inserting a Bolt through a
Tube Washer. Then insert the Bolt through the Base Tube
and carefully thread it into the Vertical Tubes.
Repeat for the remaining three Bolts and tighten all Bolts.
(
5
/
16
-18 X 3.5") Bolt
325-5194-00
Tube Washer
225-2050-00 or 225-3522-00
Locking Casters
Bolt
Tube Washer
1.5" Small
End Cap
Rotate Knobs
to adjust
Caddy angle.
Squeeze Paddle
to adjust Caddy height.
Step 16
Insert the four 1.5" Small End Caps into the Vertical Legs.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
Adjust the Caddy Shelf height by:
1. Squeezing and holding the Paddle.
2. Reposition the Caddy to the desired location.
3. Release the Paddle.
Adjust the Caddy Shelf angle by:
1. Rotating the Knobs counterclockwise.
2. Reposition the Caddy to the desired angle.
3. Rotate the Knobs clockwise.
