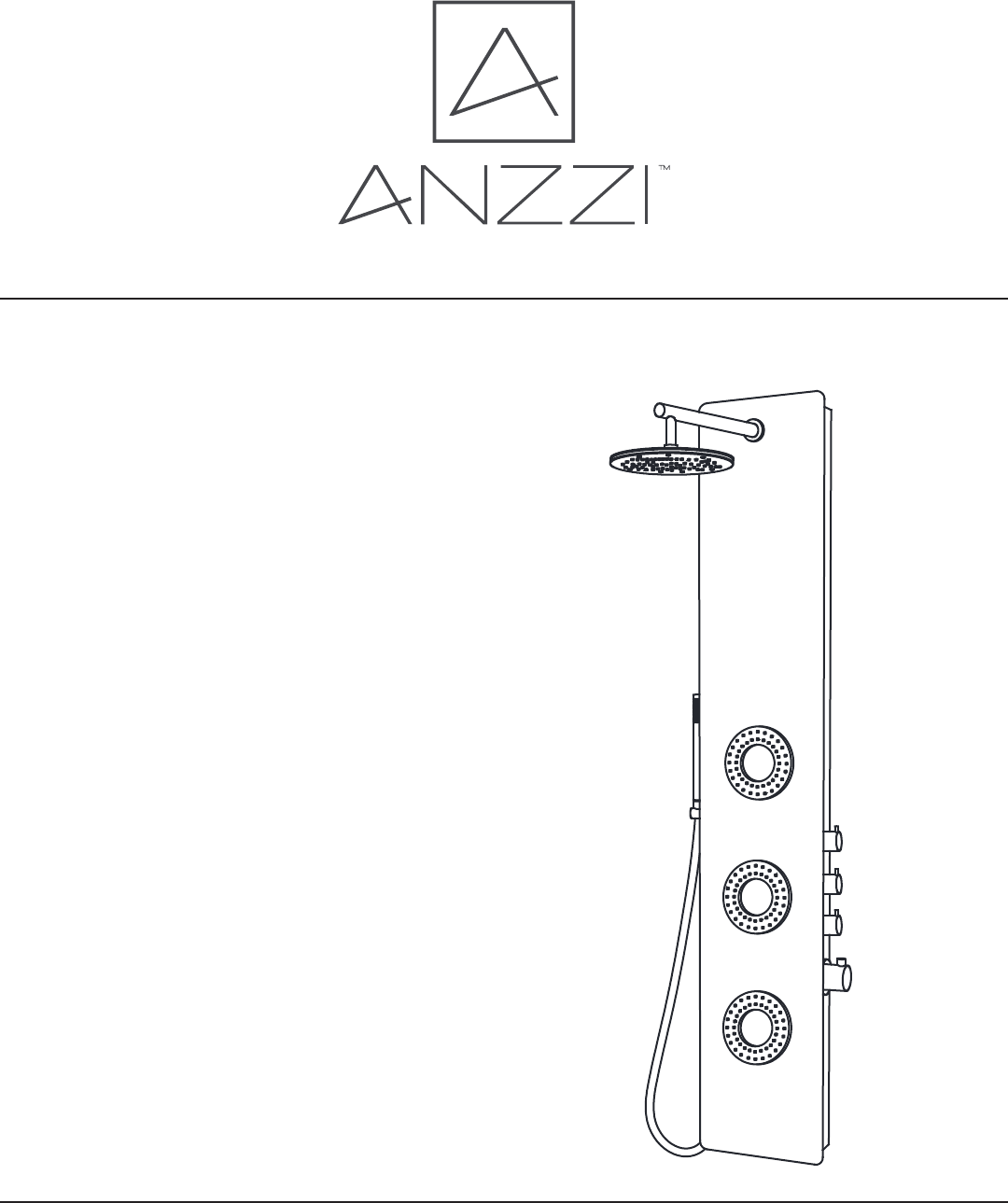

INSTALL GUIDE Model# SP-AZ031 PERFECTION IS OUR TRADITION™ v2.
TABLE OF CONTENTS Parts List Before You Start Spec Drawing Installation Care & Maintenance Warranty Registration Pg. 1 Pg. 2 Pg. 3 Pg. 4 Pg. 10 Pg. 11 Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. Leave a review on www.ANZZI.
PARTS LIST 5 4 3 6 22 2 20 21 19 1 23 12 11 13 14 1 7 10 8 15 9 16 17 24 Component no.
BEFORE YOU START Recommended Items Screwdriver Adjustable Wrench Channel Locks Teflon tape Goggles Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg.
SPEC DRAWING 21.2" 57.07" Perfection is our Tradition™ SP-AZ031 Material: Finish: Handles: Jets: Shower: Sprayer: Weight: Height: Supply: Flow: Tempered glass White tempered glass 4 3 Ø7.677” 60” reach 26.01 lbs 57.07” 1/2” connections 2.5 gpm 9.84" Features Heavy Rain™ Showerhead Acu-Stream™ high pressure body jets Euro-Grip™ hand held sprayer Rhino Alloy™ certified materials PERFECTION IS OUR TRADITION™ pg.
INSTALLATION (SETUP) Figure A 1 IN Ø 6mm Drill CH IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION (SETUP) Figure B Figure C Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screwdriver tighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION (HANDSHOWER) Figure 1 Step 1A Insert the shower wand holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the shower wand onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage. Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION (HANDSHOWER) Figure 2 1 Setting Hand Shower 3 Setting Hand Shower or Step 2A Finally, install the shower wand to the hose, as shown. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION (SHOWER HEAD) Figure 3 Step 3A Install the shower arm to the shower panel, using the rubber washer and nut on the opposite side to tighten. Step 3B Makes sure the shower arm is sitting correctly before installed the shower head. Step 3C Screw the shower head onto the shower arm. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION (WALL MOUNTING) Figure 4 Hot Cold Step 4A Screw the cold and hot water hose from the shower panel to the supply lines in the wall. Step 4B Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. PERFECTION IS OUR TRADITION™ pg.
CARE AND MAINTENANCE ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to stand the test of time. However, that does not mean the product can be neglected and will need some care and cleaning. It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to regularly clean the product. This avoids any nasty build up or deposits which would be tougher to remove.
LIMITED LIFETIME WARRANTY ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. Simply call 1-844-44-ANZZI (1-844-442-6994) to submit a warranty claim and request an RMA.
PRODUCT AND WARRANTY REGISTRATION To register your product and activate your Limited Lifetime Warranty contact us at 1-844-44-ANZZI or email us at support@ANZZI.com. Or, if preferable, fill out the form below then scan/fax/mail us a copy. Email: support@ANZZI.com Fax: 1-866-560-1060 Mail: ANZZI™ 5701 NW 35th Ave. Miami, FL 33142 In need of replacement parts? Visit www.SpaWorldParts.com ANZZI™ Product Registration Card Name..................................................................................
