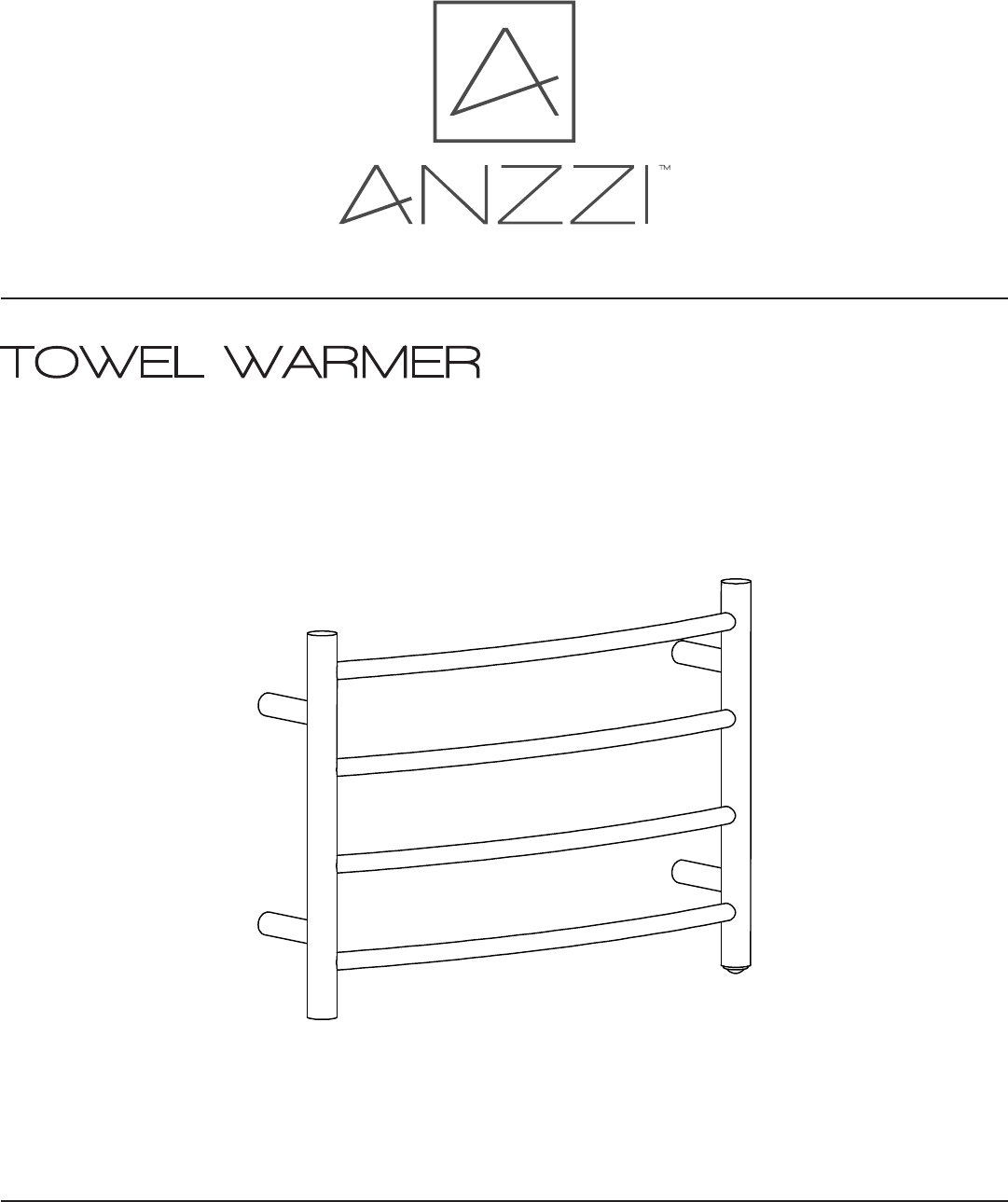

TOWEL WARMER INSTALL GUIDE PERFECTION IS OUR TRADITION™ v2.
TABLE OF CONTENTS Before You Start Parts List Installation Care & Maintenance Warranty Registration Pg. 1 Pg. 2 Pg. 3 Pg. 9 Pg. 10 Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. Leave a review on www.ANZZI.
BEFORE YOU START Before you begin, read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages and ensure that none of the required pieces are missing. If you find damages, DO NOT INSTALL. Contact Customer Service at 1-866-44-ANZZI, if you need assistance or have questions while installing your towel warmer. ANZZI™ accepts no liability for any damage to the towel warmer, wall, or personal injury during installation.
PARTS LIST Required Items Measuring Tape Pencil Allen Tool Leveler Hammer Power Drill Philips ScrewDriver Included Hardware 1. & 2. or 3. 5. 7. 4x Wall Mounting Brackets w/ Screw Set (Rounded or Squared depending on model) 4x Bracket Tub 4x Wall Anchor 4. 4x Long Screws 6. 4x Short Screws 1x Allen Tool PERFECTION IS OUR TRADITION™ pg.
INSTALLATION Fasten wall bracket to towel warmer body. Step 1 As shown in the picture, drill the short screw (6) through the hole in the metal bracket (1). Step 2 Use the short screw (6) to secure the bracket onto the metal pad on the vertical bar of the towel warmer. Step 3 Make sure hole Allen Screw is facing toward floor. Fasten the short screw (6) using a screwdriver. Make sure the hole of the bracket (1) faces towards the floor when the towel warmer is mounted. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION Prepare for wall mounting. Step 4 Attach the remaining three brackets (1) to the vertical bars by repeating steps 1, 2, and 3.. B Step 5 Using the measuring tape & level, measure and mark the four anchor locations. You will need to measure from A to B, A to C, D to D, and finally B to D. It’s recommended to install the towel warmer a minimum of 24” (2’) from the floor. D C Step 6 24” Once all the anchor points are marked on the wall (A, B, C, & D).
INSTALLATION Figure 3 Step 7 Using a drill, make a pilot hole into each marked point. Use a 5/16th drill bit. Step 8 Using the wall anchors supplied (5), hammer each one into the pilot holes. Step 9 Insert the long screw (4) through the short bushing (3) provided. Then using the screwdriver secure it to the wall anchors (5). PERFECTION IS OUR TRADITION™ pg.
INSTALLATION Figure 4 Step 10 Install the bracket onto the bushing on the wall. Step 8 As shown in the pricture, fasten the set screw (2) into the bracket hole (1) using the allen tool provided. Brefore fully tightening the set screws, make sure all brackets are set properly onto the short bushings (3). Step 9 Double check all forn connections and using the level confirm the towel warmer is secured and aligned correctly. And you’re done! PERFECTION IS OUR TRADITION™ pg.
INSTALLATION On/Off Switch Located Below Maximum Warmth For best results maximize the areas of contact between your towel and newly insatlled towel warmer by weaving the towel through the bars. PERFECTION IS OUR TRADITION™ pg.
INSTALLATION Blank Page PERFECTION IS OUR TRADITION™ pg.
CARE AND MAINTENANCE ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to stand the test of time. However, that does not mean the product can be neglected and will need some care and cleaning. It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to regularly clean the product. This avoids any nasty build up or deposits which would be tougher to remove.
LIMITED LIFETIME WARRANTY ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. Simply call 1-844-44-ANZZI (1-844-442-6994) to submit a warranty claim and request an RMA.
PRODUCT AND WARRANTY REGISTRATION To register your product and activate your Limited Lifetime Warranty contact us at 1-844-44-ANZZI or email us at support@ANZZI.com. Or, if preferable, fill out the form below then scan/fax/mail us a copy. Email: support@ANZZI.com Fax: 1-866-560-1060 Mail: ANZZI™ 5701 NW 35th Ave. Miami, FL 33142 In need of replacement parts? Visit www.SpaWorldParts.com ANZZI™ Product Registration Card Name..................................................................................
Perfection is our Tradition™
