Part A x2 Part B x2

Part C x2 Part D x2

™

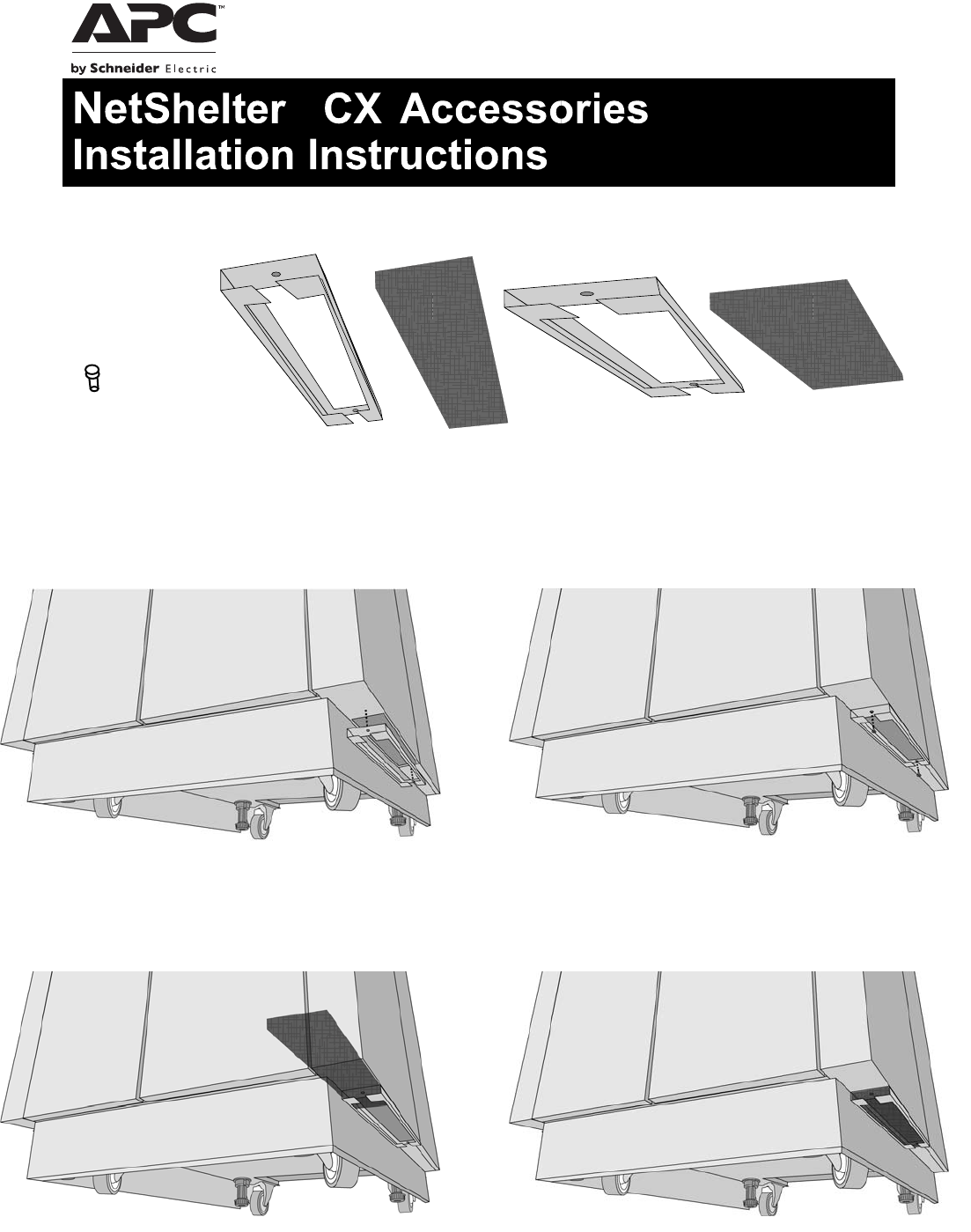

Align the opening in the metal frame (Part A) with the air

intake apertures on the undersides of the sidepods.

Fix Part A into place using the screws provided.

Slot the Dustfilter Foam (Part B) into the front of the frame.

Slide the foam all the way into place, ensuring all of the

aperture is covered.

Installation

For use with Netshelter CX 38U

Models AR4038 & AR4038i

Inventory

AR4702

PAGE 1
™ AR4702 Inventory x2 x8 Part C x2 Part A x2 x2 Part D x2 Part B x2 Installation For use with Netshelter CX 38U Models AR4038 & AR4038i Align the opening in the metal frame (Part A) with the air intake apertures on the undersides of the sidepods. Slot the Dustfilter Foam (Part B) into the front of the frame. Fix Part A into place using the screws provided. Slide the foam all the way into place, ensuring all of the aperture is covered.
PAGE 2
Align the opening in Part C with the air intake apertures on the roof of the Cabinet Fix Part C to the air intake using the screws provided Slot the Dustfilter Foam (Part D) in to the front of Part C Slide Part D all the way into place, ensuring the aperture is fully covered Important Remember to regularly clean your dustfilters to prevent build-up of dust.
