Instruction Manual

RST-5000 Series
Performance
• Module Input: RST-5001 4-20 mA
• Resolution: 12 bit
• Adjustments via internal web page
• Built in volume calculations
Connectivity
• Output:
- Ethernet TCP/IP to internal web page or APG
website
- 2 isolated Solid State Relays (130ma Max)
Or
2 inputs that are activated using dry contact
closure
Environmental
• Operating Temp.: -40º to 140ºF (-40º to 60ºC)
Certication
• General Purpose (Pending)
Physical
• Housing: Polymide
• Mounting: 33 mm Din-Rail
Electrical
• Operating Volatge:
48 VDC POE (Sensor powered over Ethernet
cable requires POE injector or switch.)
- 24VDC Output (200 mA max. current)
Optional 24VDC supply
(No POE injector required)
- 24 VDC supply wil also be used as the
voltage supply for the sensor.
• Electrical Connection: RJ-45 Port
Terminal block for sensor power, 4-20 mA
input and relay connections
Automaon Products Group www.apgsensors.com
tel. [phone] / direct 435.753.7300 [e-mail]
2

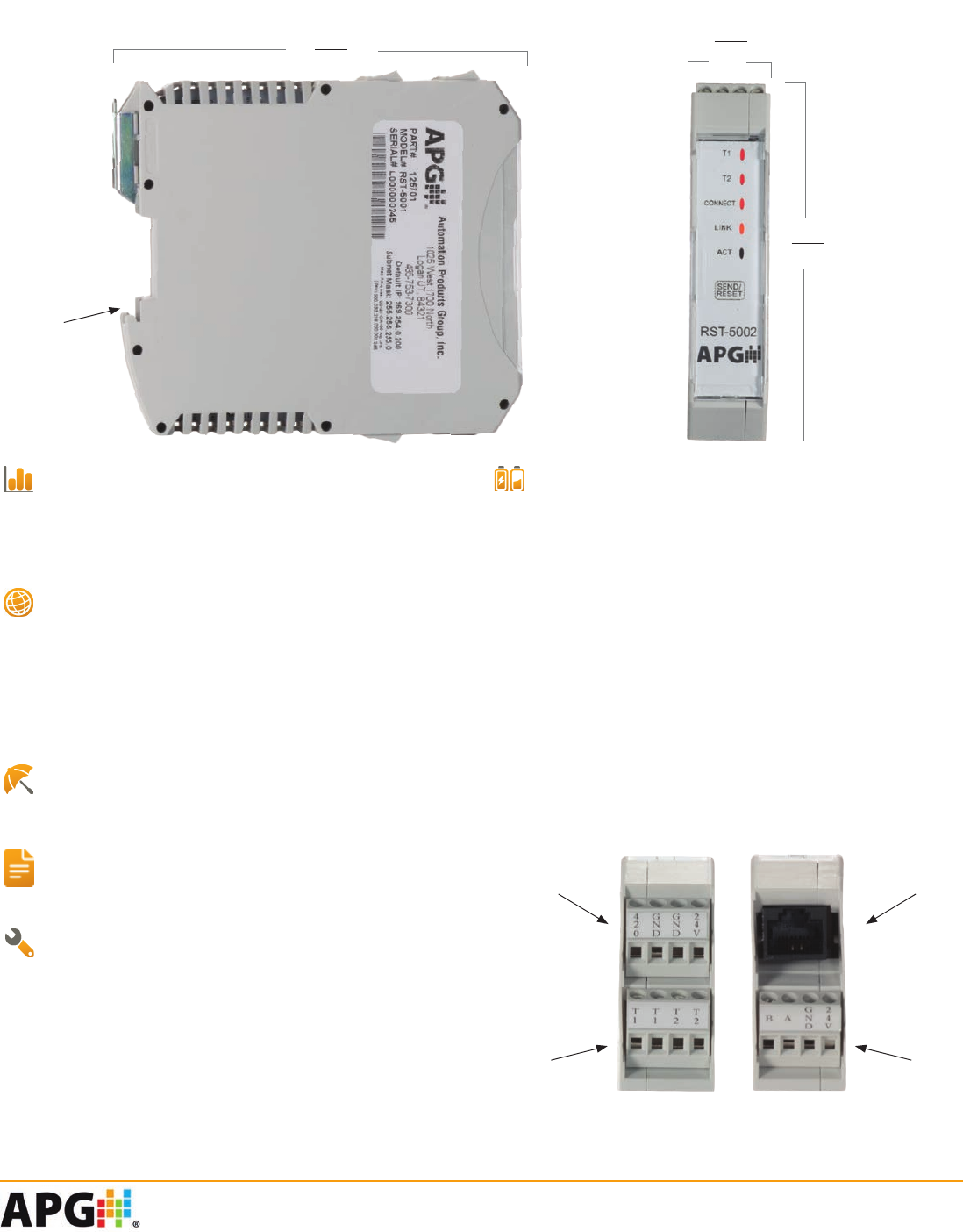

4.50”
114.3 mm
1.0”
25.40 mm
33 mm Din-Rail
4.0”
101.6 mm
Modbus Terminals
for RST-5002 Only
Relay Connecons
4-20 Input
& Sensor Power
Ethernet
Connecitonon
