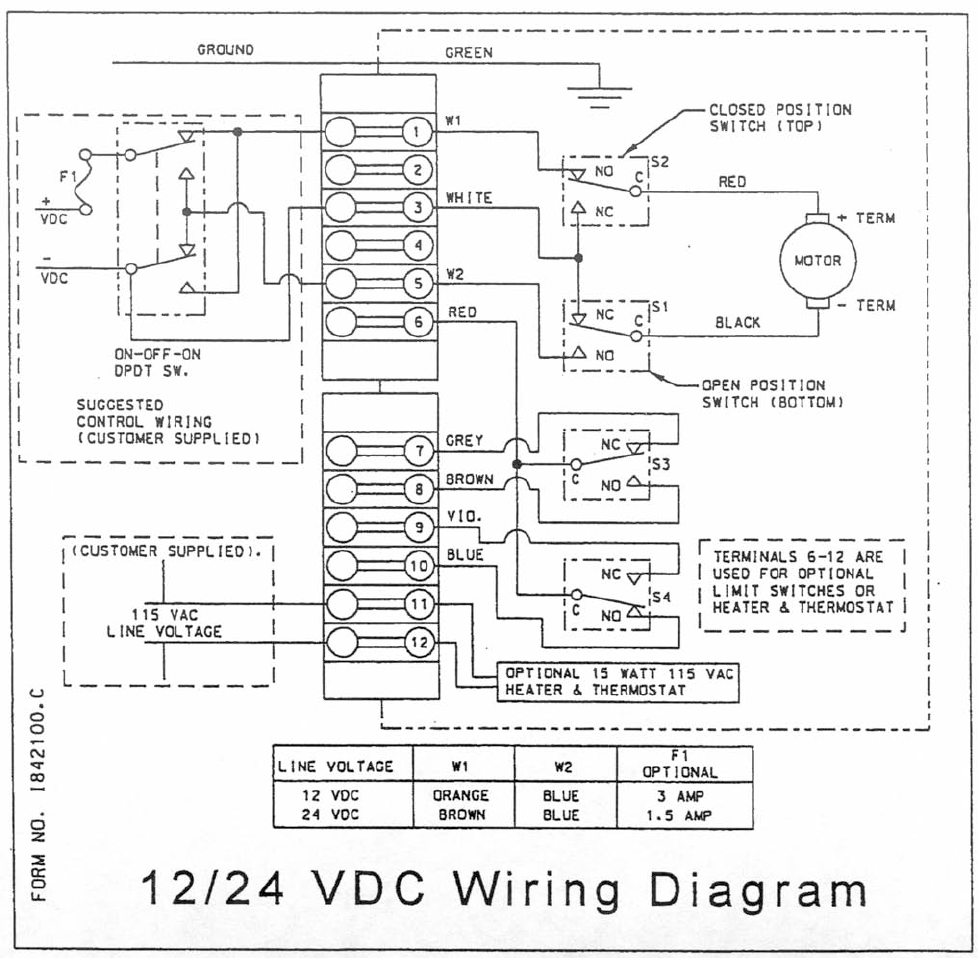

12/24 VDC WIRING DIAGRAM
ON-OF-ON DPDT SW.
SUGGESTED CONTROL WIRING (CUSTOMER SUPPLIED)
(CUSTOMER SUPPLIED).
115 VAC LINE VOLTAGE
1
...
2
3
4
5
6
7
...
8
