iMac (24-inch Early 2008) Take Apart — Hard Drive 12 2

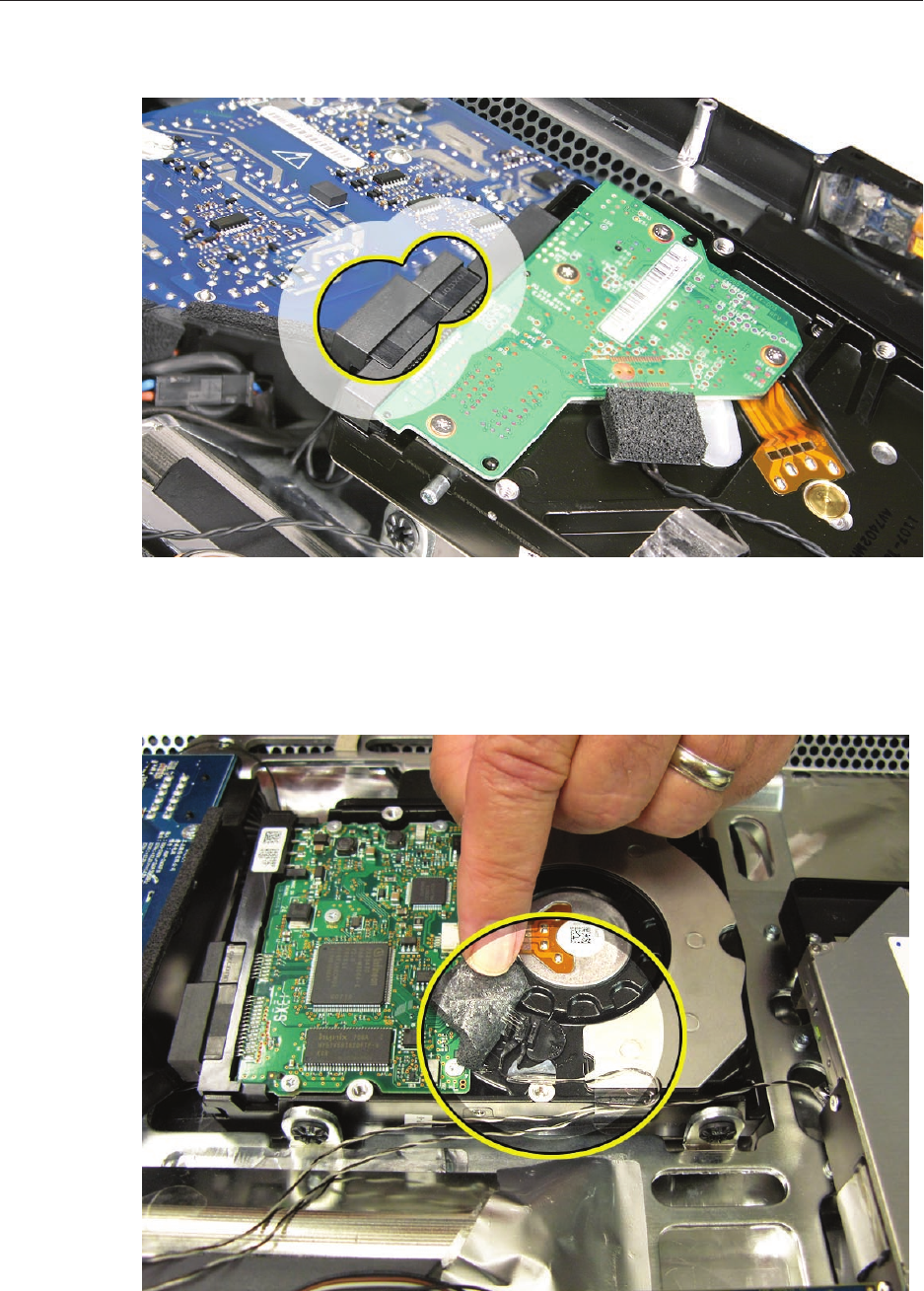

Connect the hard drive data and power cables to the hard drive.
3.
Press the hard drive the rest of the way into the rear housing. You will hear a snap when the 4.
black plastic clip at the top hard drive clicks into place on the chassis.
Make sure the temp sensor is connected to the sensor clip on the hard drive. Install a new
5.
foam gasket on top of the temp sensor. A new foam gasket is included with the hard drive.
