iMac (24-inch Early 2008) — Symptom Charts 219
Optical Drive
Optical drive won’t eject media

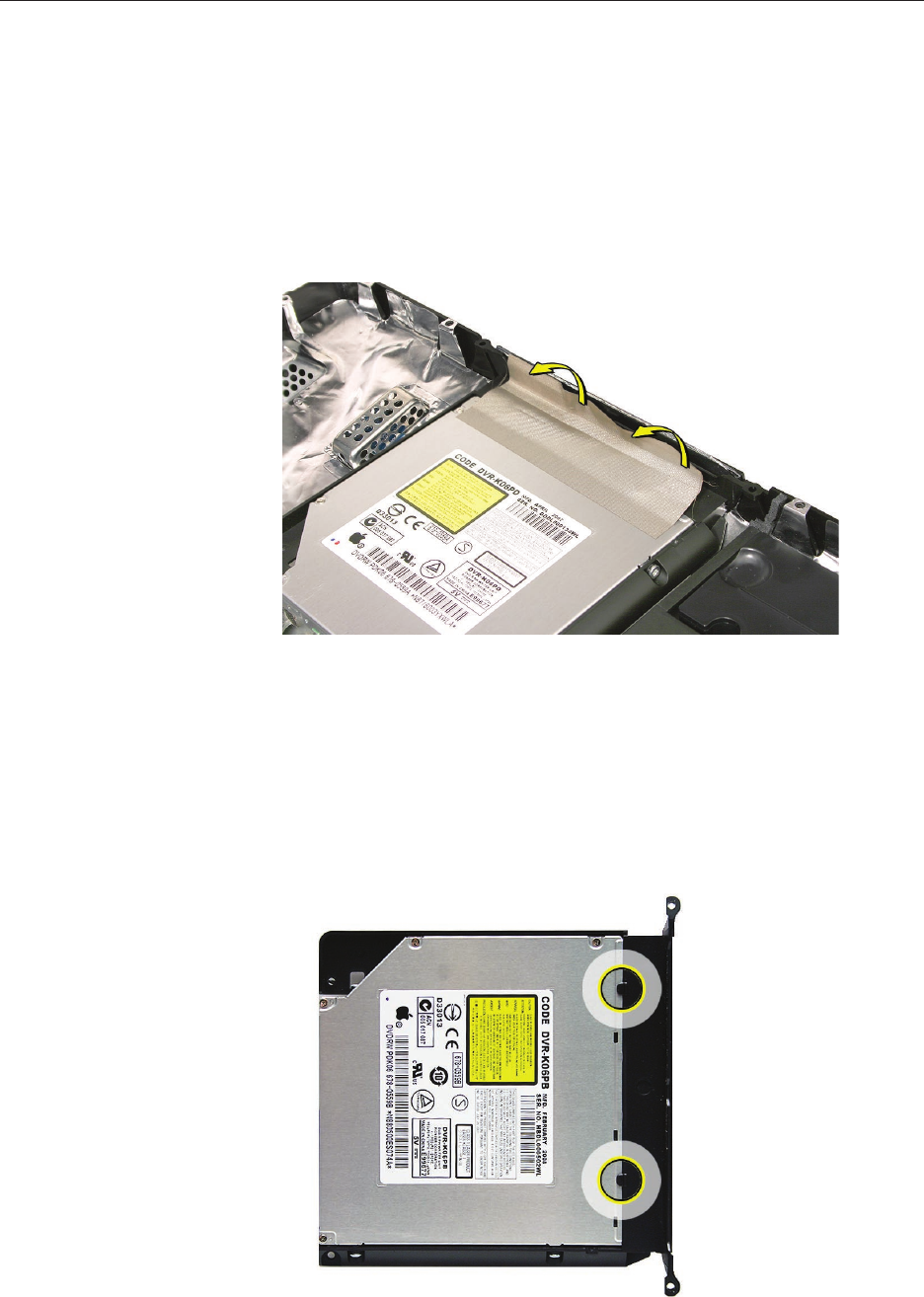

Carefully remove the EMI tape on the top of the optical drive. 1.
Caution: The optical mechanism is VERY delicate and should be handled with care. Handle
the drive by the sides and the back edge. Avoid touching the front of the drive and putting
pressure on the top and bottom cover.
Verify that two or three black clips (as shown below) are positioned on top of the optical 2.
drive mechanism. Note: The number of clips on the bezel depends on which mechanism
is used, there are multiple optical vendors. Some bezels have two clips, others have
three. Are the clips visible?
Yes: Clips on top of the bezel (as shown below) indicates a correctly installed optical carrier.
Inspect the carrier opening and test it again.
No: Inspect the bezel for clips stuck under the bezel. If they are stuck, go to the next step.
