Mac Pro (8x) Upgrades — Bluetooth Card 161
Bluetooth Card
Important: The computer enclosure includes one Bluetooth antenna wire, which looks similar to
the AirPort antenna wires, except that it includes a “BT” label. If the label is missing, you can also
identify the Bluetooth cable by its location; it is the cable that runs to the back of the computer.
For proper operation, be careful not to connect the Bluetooth antenna wire to the AirPort card or
any AirPort antenna wire to the Bluetooth card.
Tools
The only tool required for this procedure is a magnetized jewelers Phillips #1 screwdriver.
Preliminary Steps
Before you begin, open the computer, and lay it on its side with the access side facing up.

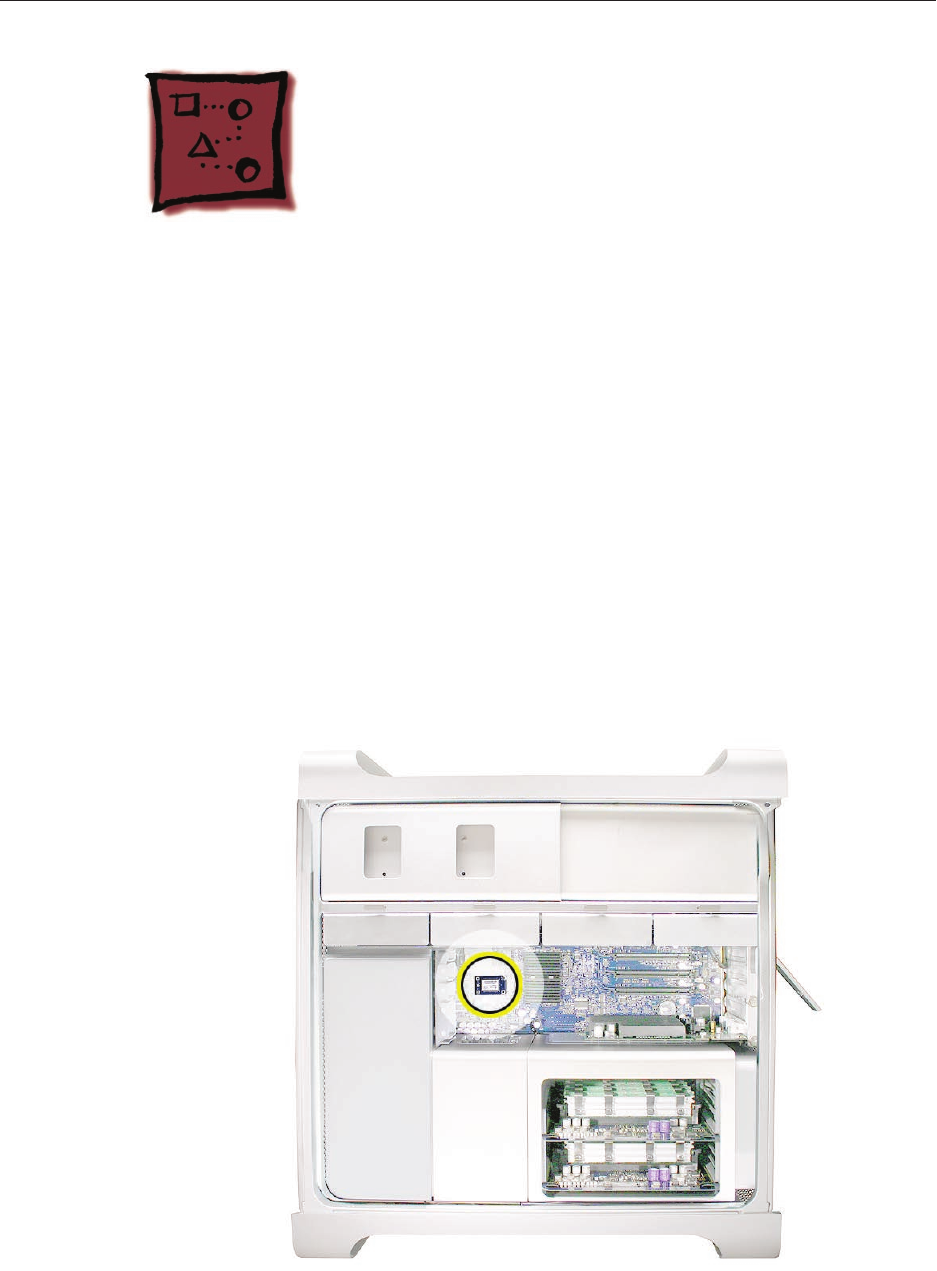

Part Location
