Mac Pro (8x) Views — Exploded Views 168
Exploded Views

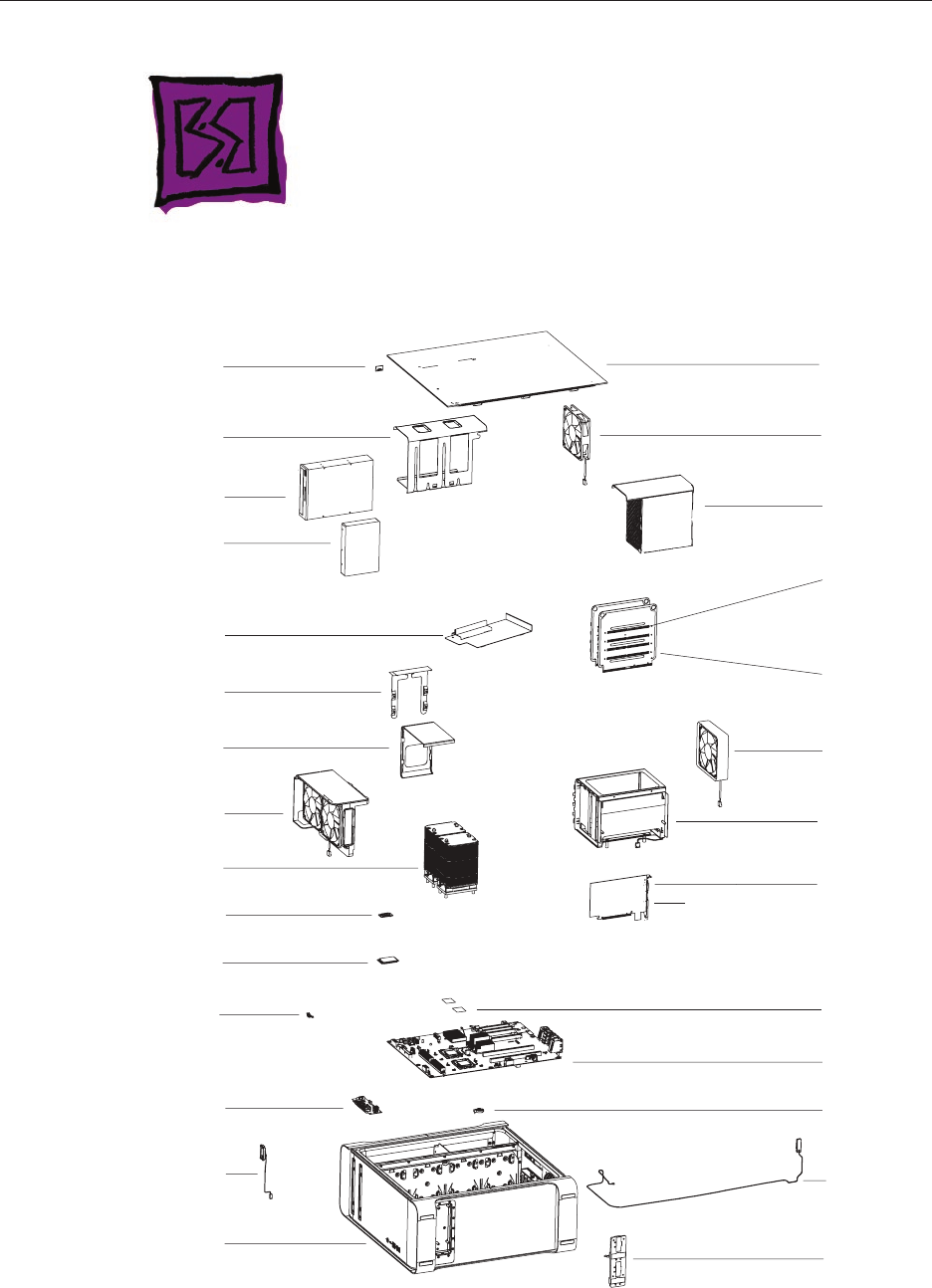

Exploded View 1
Ambient Board
922-7732
Access Door
922-8004
Power
Supply Fan
076-1232
Power
Supply
661-4309
Optical Drive Carrier
922-7729
Optical Drive
661-4276
Hard Drive
250 GB 661-4273
500 GB 661-4274
750 GB 661-4275
Hard Drive Carrier
922-7728
Rear Fan
922-8031
Memory Riser
Card
922-7695
Front Fan
922-7999
Processor
Heatsink Cover
922-8001
Graphics Card
661-3932
Heatsink
661-4332
AirPort Extreme Card
661-4060
Bluetooth Card
922-7289
Speaker
922-7998
Front Panel Board
922-7698
AirPort Antenna
Board and Cables
076-1257
Enclosure
922-8000
Logic Board
661-4307
Battery
922-6476
Bluetooth
Antenna Board
922-7773
Power Button
076-1200
FB-DIMMS
512 MB 661-4312
1 GB 661-4315
2 GB 661-4329
Processor
661-4308
Memory Cage
922-8058
Fibre Channel
Card
661-4047
661-4048
661-4306
PS Cable Cover
922-8005
