PowerBook G4 (12-inch) Take Apart - 115
Display Module
• Keyboard
• Top case
• Reed switch (or hall effect sensor board)
• Hard drive
• Modem
• DC-to-DC board
• Heatsink with fan
• Inner frame (with RJ11 board attached)
• Logic board
• DC-in board
• Optical drive
• Bluetooth
• Subwoofer
Procedure
Important: This procedure show s the subwoofer and inner rear panel attached to the
display module when it is removed from the bottom case. However, you can remove the
subwoofer from the bottom case you do not need to remove the subwoofer and display
module together.

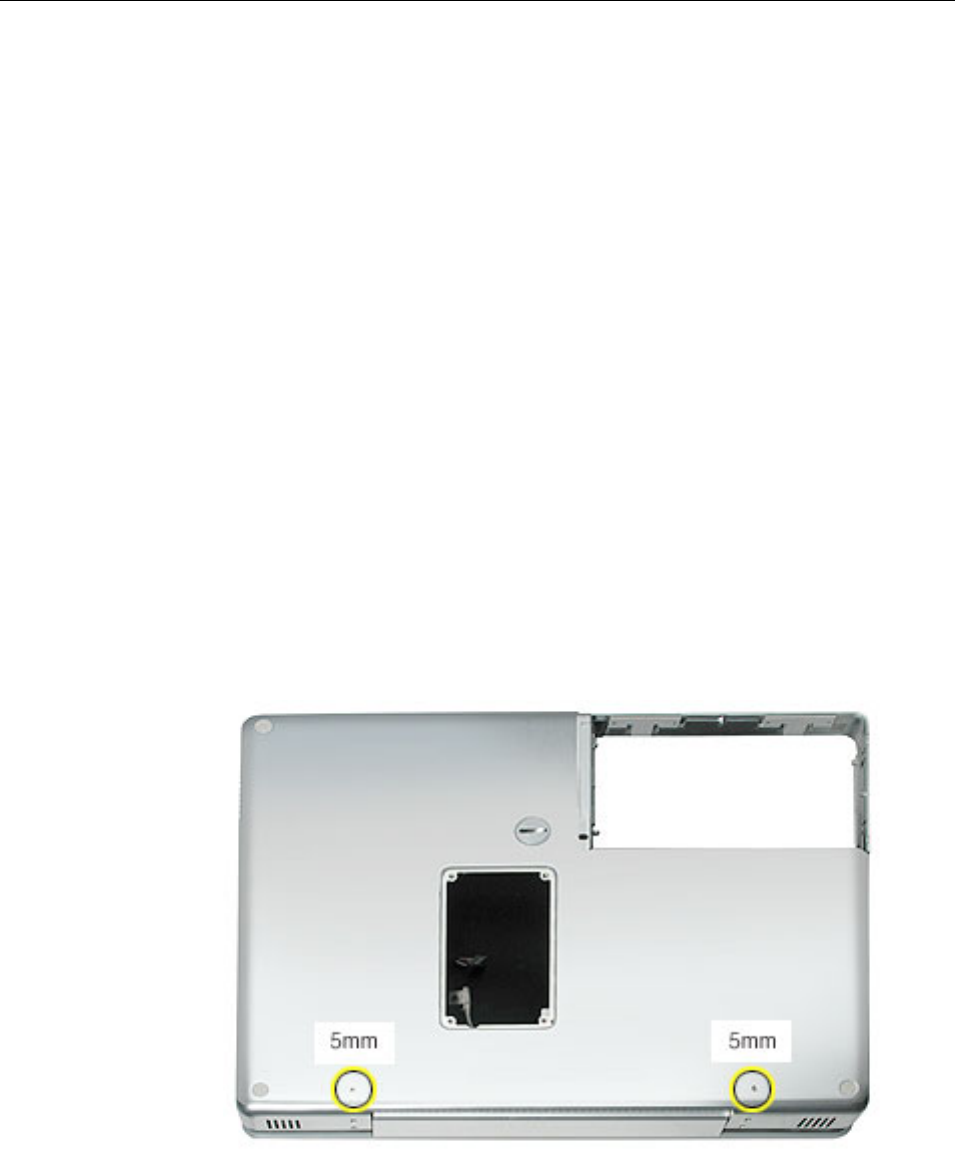

1. With the computer upside down, remove the two screws from the bottom case.
