PowerBook G4 (12-inch) Take Apart -
11
Memory Door and Memory Card
1. Place the computer upside down on a soft cloth.

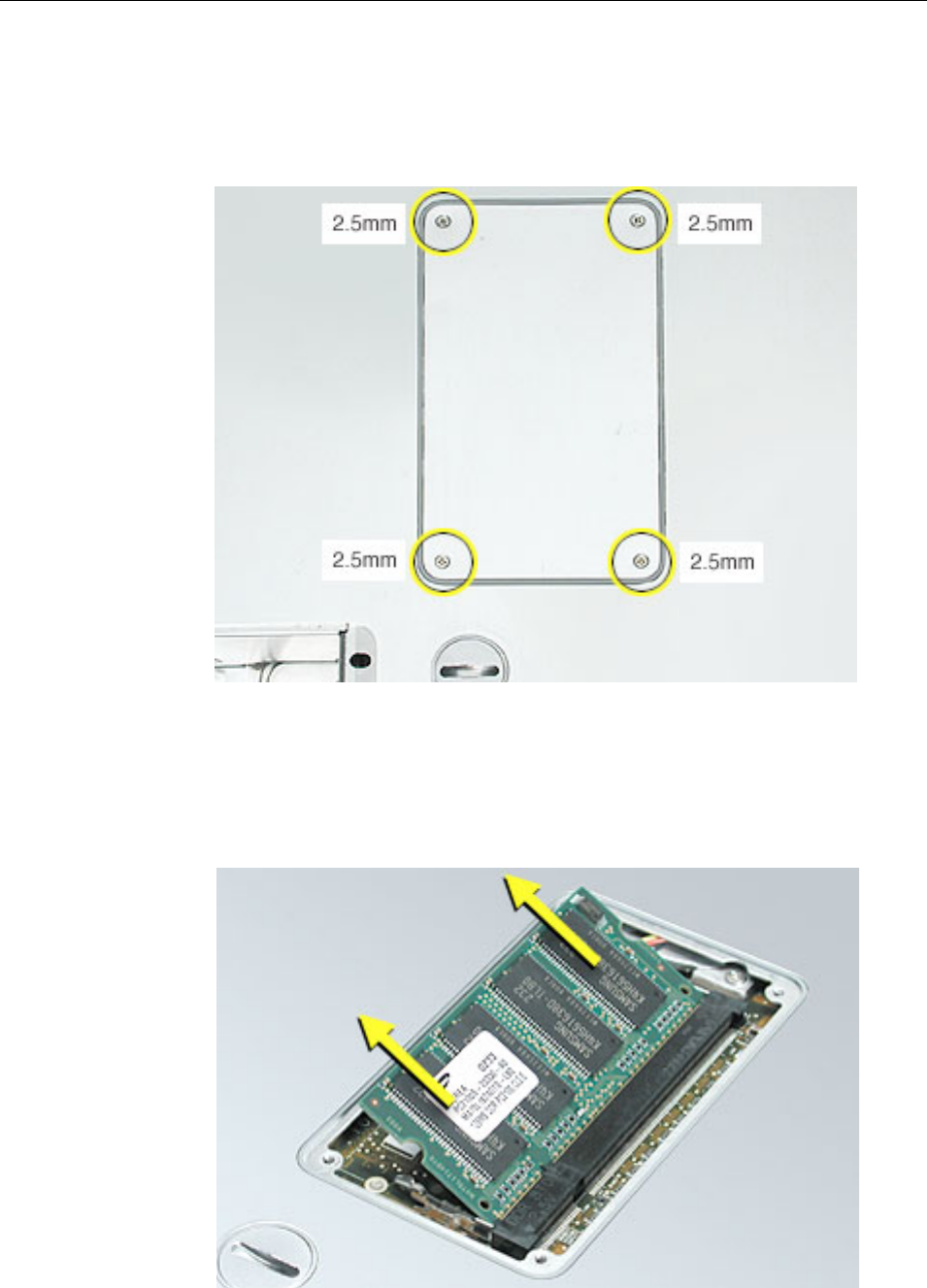

2. Remove the four identical screws from the memory door.
3. Use a black stick to lift off the memory door.
4. Touch a metal surface inside the computer to discharge static electricity from your
body.
5. If a memory card is already installed, release it by spreading apart the tabs in the
expansion slot from the notches in the card. Allow the card to pop up slightly, and pull
it out of the memory slot.
