PowerBook G4 (12-inch) Take Apart - 141
Hinges with Bezel Brace
Hinges with Bezel Brace

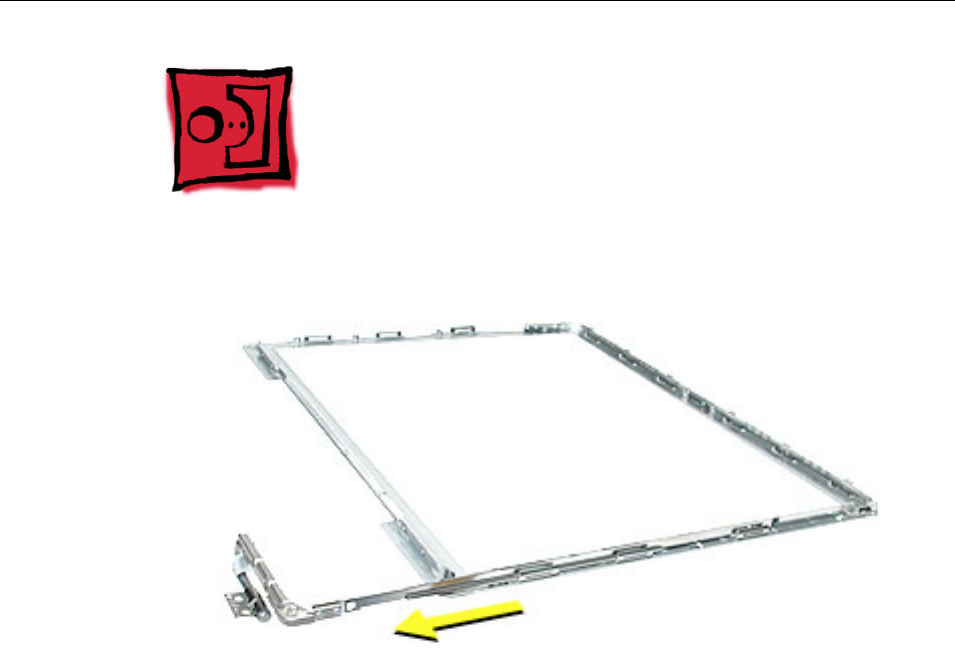

Part Location
Preliminary Steps
Before you begin, remove the following:
• Battery
• Memory door and memory card
• AirPort Extreme Card, if installed
• Keyboard
• Top case
• Hall effect sensor board and cable
• Hard drive
• Modem
• DC-to-DC board
• Heatsink with fan
• Inner frame (with RJ11 board attached)
• Logic board
• DC-in board
• Optical drive
• Display module
• Display housing
• LCD panel
• Inverter (and antenna cable assembly)
