PowerBook G4 (12-inch) Take Apart -
19
Keyboard
Procedure

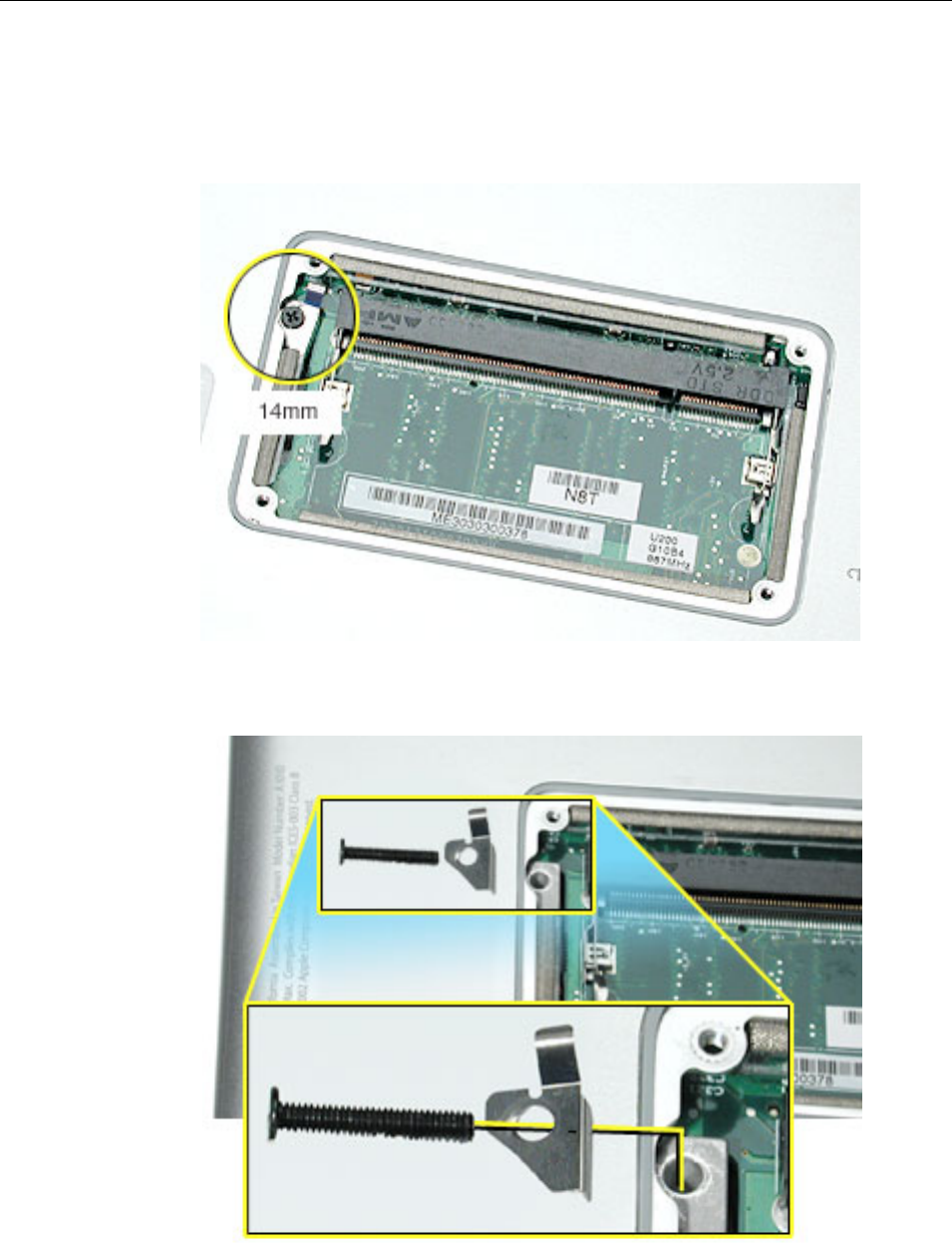

1. With the computer upside down on a soft cloth, remove the single screw and small
EMI shield from the memory card bay.
Replacement Note:
Make sure you replace the screw and EMI shield so that the
EMI shield is positioned with the finger-like projection pointing up.
