PowerBook G4 (12-inch) Take Apart -
5
Battery
Battery
Tools
This procedure requires the following tools:
• Soft cloth
• Coin

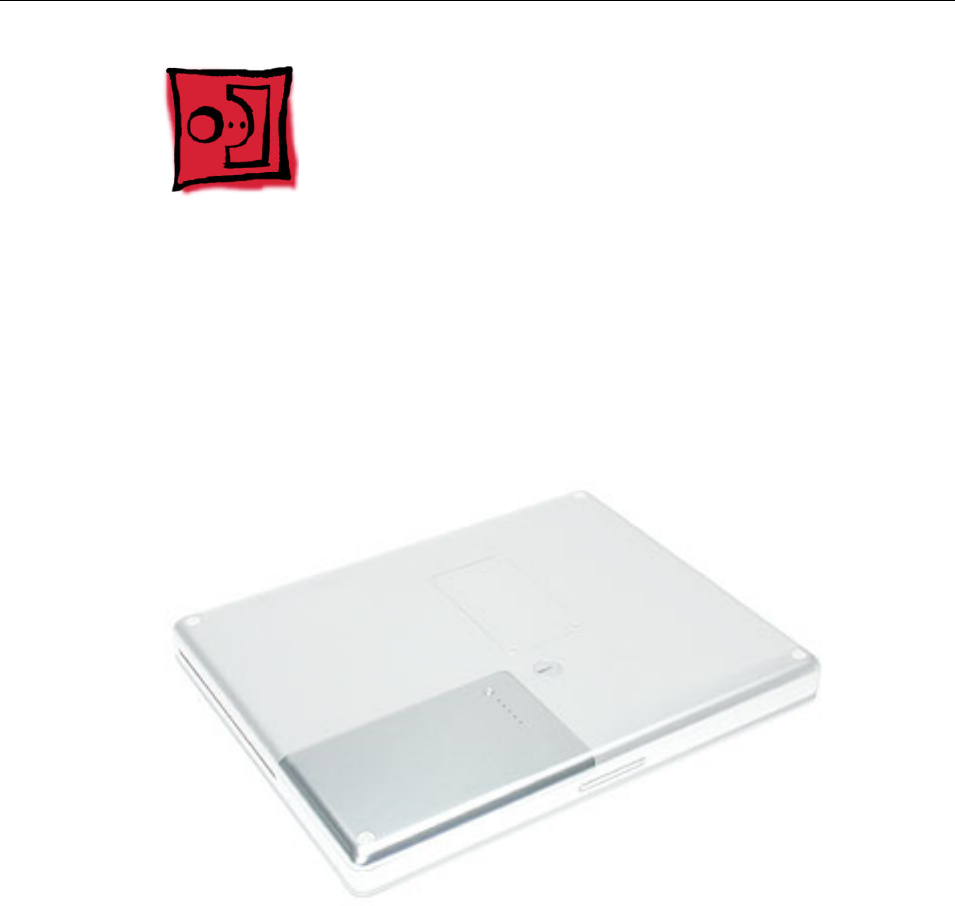

Part Location
Preliminary Steps
Warning: Always shut down the computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down for 30 minutes
before continuing.
